THINKCAR GDI 200

THINKCAR GDI 200

Enhanced Piezoelectric Fuel Injector Cleaner

and Tester Machine

Ultrasonic Cleaning

Intelligent Testing

6-Cylinder

Support GDI & Piezoelectric Injectors

Main Function

THINKCAR GDI 200 is an upgrade version of fuel injector cleaner and tester with enhanced ultrasonic cleaning and intelligent testing function, to support not only standard injectors but also GDI injectors and Piezoelectric injectors including EFI,SFI,SPI,GDI, Piezoelectric Injectors. The GDI 200 is with 6-Cylinder, which can test and clean 6 injectors in one time with higher efficiency.

Enhanced Cleaning & Testing

GDI 200 support not only standard injectors but also GDI injectors and Piezoelectric injectors including EFI,SFI,SPI,GDI, Piezoelectric Injectors.

Automatic Cleaning & Testing

Automatic cleaning, testing and real-time parameter adjustment of the fuel injectors.

Multi Voltage Selection

GDI 200 provides various types of voltage output (12V, 70V, 90V,120V,150V, 180V) to be selected to adapt for different types of injector testing.

Wide Application

GDI 200 support not only standard injectors but also GDI injectors and Piezoelectric injectors including EFI,SFI,SPI,GDI, Piezoelectric Injectors.

EFI

SFI

SPI

SPI0

GDI

Various Parts equipped&

Portable Drawer

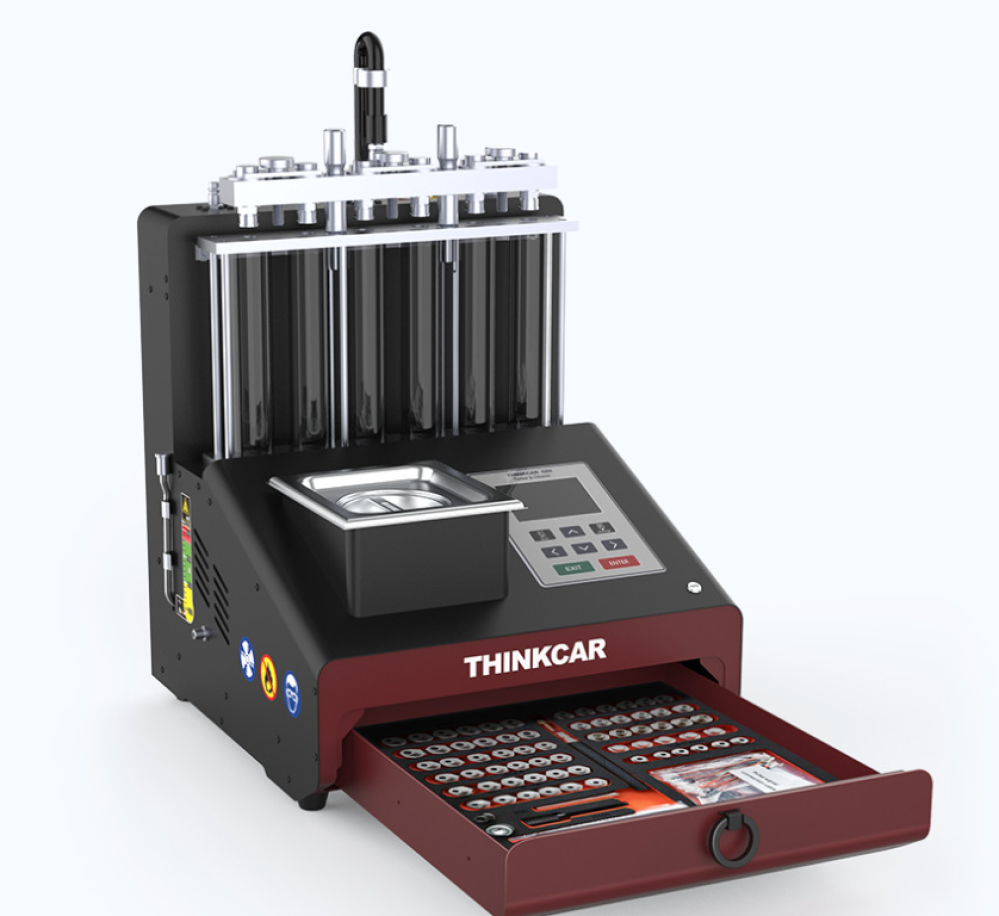

GDI 200 is equipped with a flexible drawer stored a variety

of injector accessories for different needs.

6-Cylinder High Efficiency

GDI 200 is with 6-Cylinder, which can test and clean 6 injectors at the same time with higher efficiency.

Automatic Testing Fuel Inject Type and performance

GDI 200 can automatically detect injector type and testing conditions, 12V or piezoelectric. If the testing injector is 12V, it can test the injector resistance and minimum pulse width. If it is a piezoelectric, it can automatically identify the operating voltage and detect the injector's operating voltage.

What’s new

ModelGDI 200

GDI 100

Fuel Injects SupportEFI,SFI,SPI,GDI, Piezoelectric InjectorsEFI,SFI,SPI,GDIInput PowerAC220V~50/60Hz or AC110V~60HzAC220V~50Hz/60Hz or AC110V~60HzUltrasonic cleaning power60W10WWorking Pressure0-8bar0-7barInlet Pressure air3-8barNAPulse Width0.5~25ms/0.1ms0.1~25ms/0.1msOil Tank Capacity4L2000mlResistance Test Accuracy0.1Ω0.1ΩDimensions420X440X503mm311X346X605mmRPM range100~9900rpm100~9900rpmPacking Size460*490*555mm375*405*510mmMain Unit Weight20.4KG15KGGross Weight24.7KG17.5KG
