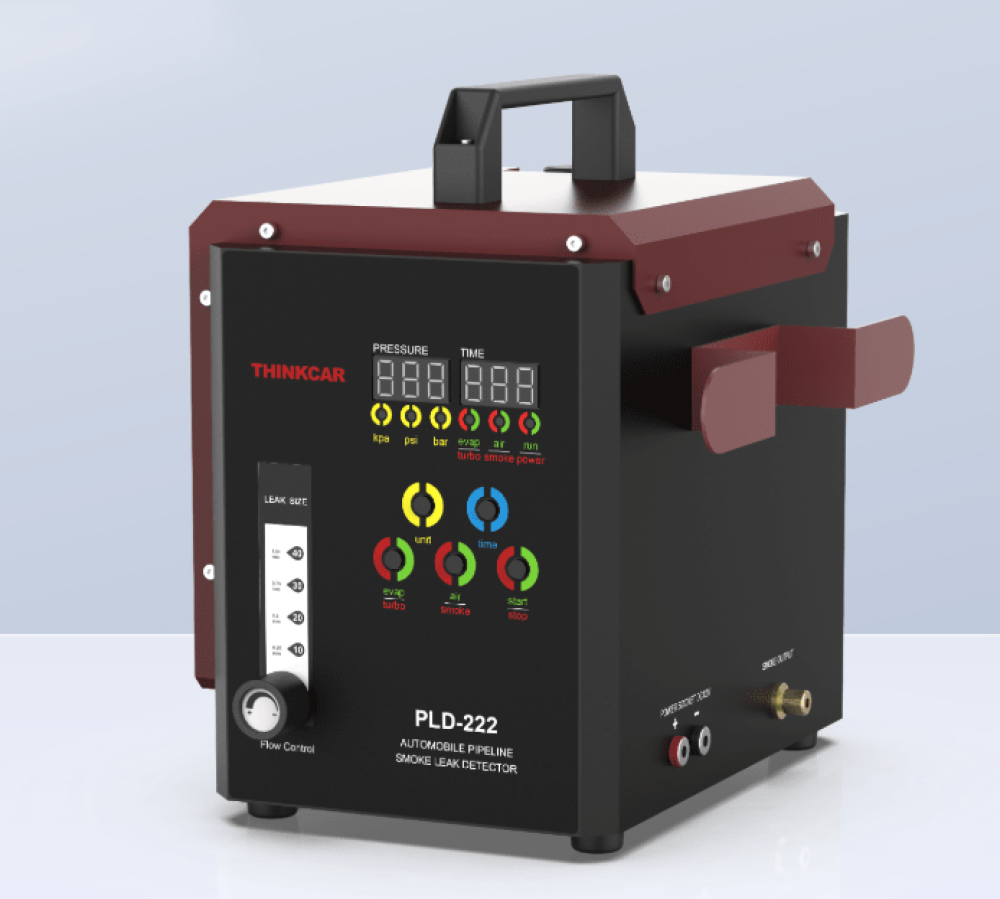

THINKCAR PLD 222

Automotive Leak Tester

One Key Switch Between TURBO and EVAP Mode!

Support Turbo & EVAP Mode

Build-in Air Pump

Large Smoke Flow ( 12L/Min)

Air/Smoke Dual Test Mode

Introduce

THINKCAR PLD 222 is a new generation of automotive leak tester with Turbo and EVAP model selection. It’s widely use in automotive repairs to position cars motorcycles leakage on the pipe systems quickly and exactly, such as Intake System Test, Exhaust Systems Test, Cooling System Test, Crankcase system test,Car Sealing Test, Fuel Tank System Test, Turbo System Test,Various Pipe Fittings Test.

Wide Applications

The PLD 222 is universally applicable to all types of vehicles, supports comprehensive detection across all systems in your vehicles, including but not limited to EVAP, EGR, Vacuum, Engine, Intake, Exhaust, Fuel Tank System and various pipe fittings.

Brand new Design

Compact patented design. Small and portable, the overall weight is only 3KG.

LED screen display

Function buttons

Easy to use

Features a faster and more powerful built-in air pump motor, no need to reply on external compressor. With a pressure range of 1.2 bar to 3.5kpa, and a smoke output of 12L/Min, the PLD 222 is easy to conduct smoke tests anywhere.

Air Mode & Smoke Mode

Provides two test mode. The air intake flow and smoke output are adjustable.

One Key to Switch TURBO and EVAP Mode!

Support both turbo and EVAP mode. Easy to switch and use!

Specifications

Model PLD-222(TURBO+EVAP)

PLD-212(EVAP)

PLD-212(TURBO)

Voltage DC12V DC12V DC12V Current 6A 6A 6A Pipeline Length 2.5m 2m 2m Power Supply Cable 1.5m 2m 2m Main Unit Flow Amount 0-12L/Min 0-12L/Min 0-12L/Min Air Pump Flow Amount 8-15L/Min 8-15L/Min 8-15L/Min Oil Volume 30ml 45ml 45ml Max. Output Pressure 1.2bar-TURBO Mode

3.5kpa-EVAP Mode 4KPa 16PSI Weight 3KG 3KG 3KG Warranty 1-Year 1-Year 1-Year

Packing List

Main unit

1pcs

Power Supply Cable

1pcs

Smoke Hose

1pcs

Standard Cone Adapter

1pcs

Working tubes(60cm) Red and Blue

1pcs

Funnel

1pcs

Smoke Test Oil(Optional)

1pcs

Airbag

1pcs

EVAP Special Connector

8pcs

Funnel

1pcs
