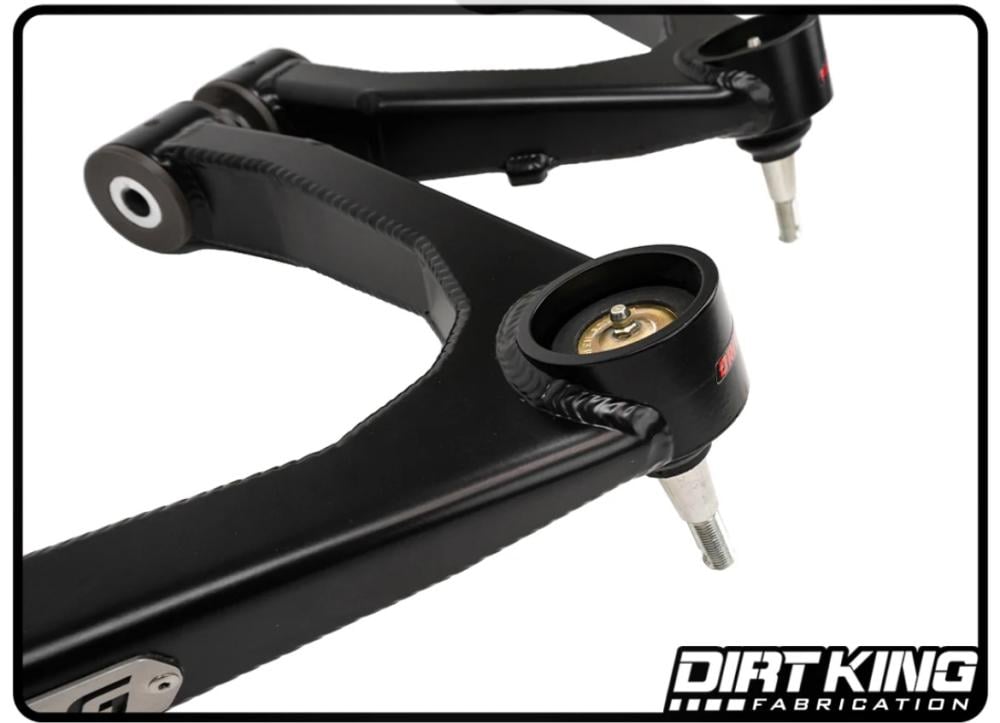

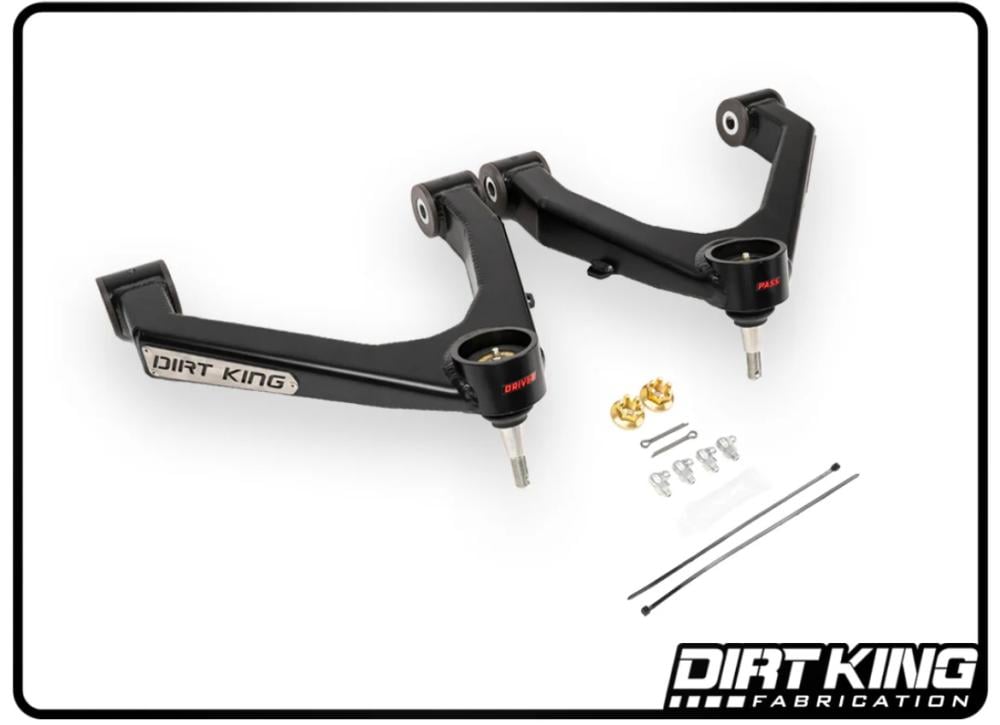

DIRT KING Boxed Upper Control Arms

• Amount of Lift: 0-3”
• Track Width: Stock
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• Compatible with Sway Bar: Yes
• Coil Over Shock Size: Stock or OEM replacement shocks

Wheel Travel / Lift

The Dirt King upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. The Dirt King arms offer maximum down travel compared to the stock upper control arms. These arms are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not install these upper control arms with coil spacers paired with extended length aftermarket shocks.

Tire Info

The upper control arms allow for 35” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made.

Magnetic Ride Control

Installing this suspension on vehicles equipped with magnetic ride control require modifications to the ride control sensors. If you choose to replace the magnetic ride control shocks with coil overs it will cause an indication light to appear on the gauge cluster.

2007-2018 Chevy Silverado 1500 2WD / 4WD

2007-2018 GMC Sierra 1500 2WD / 4WD
