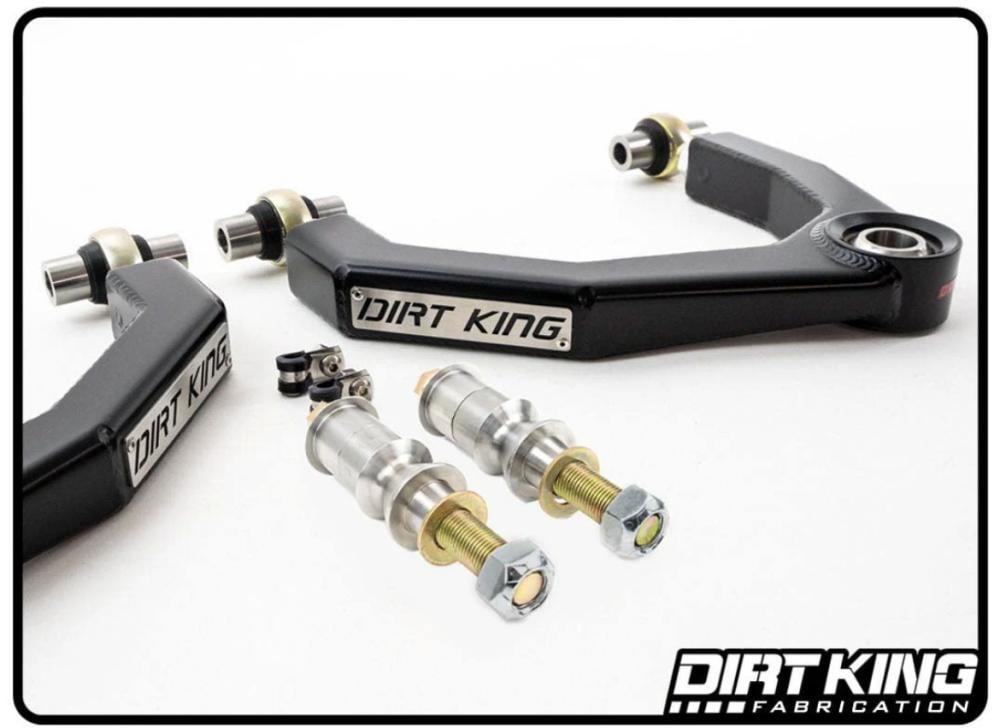

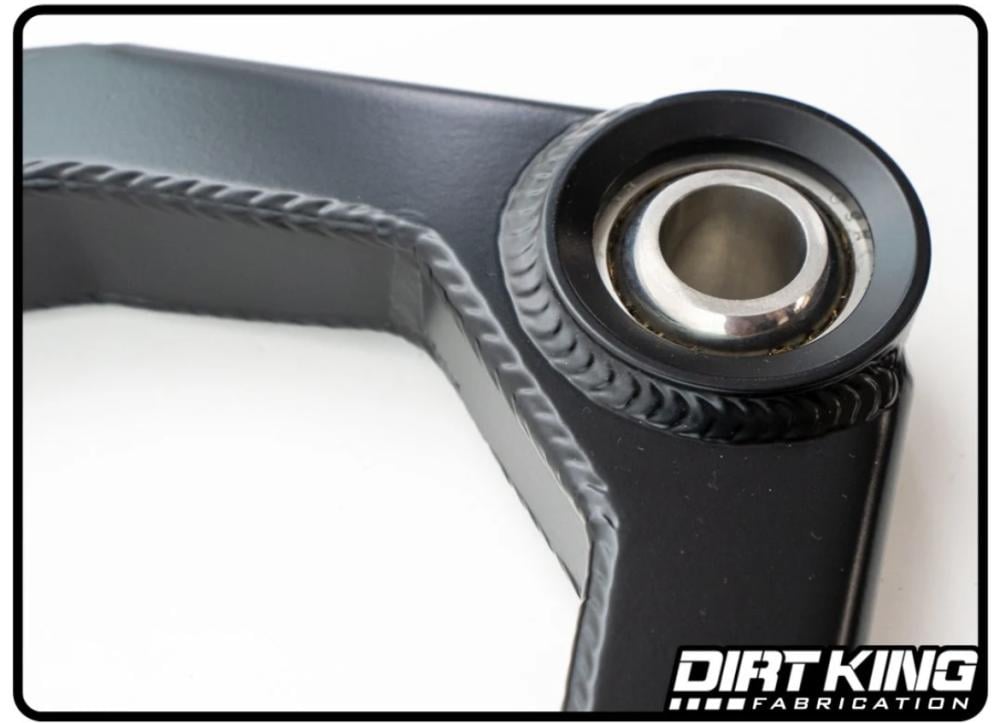

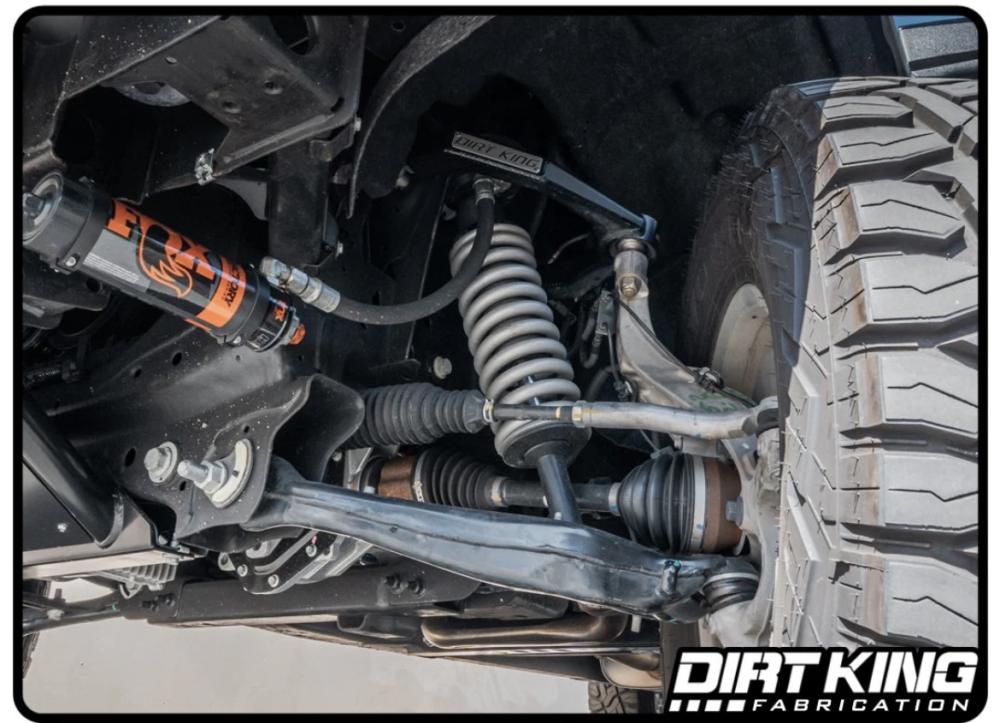

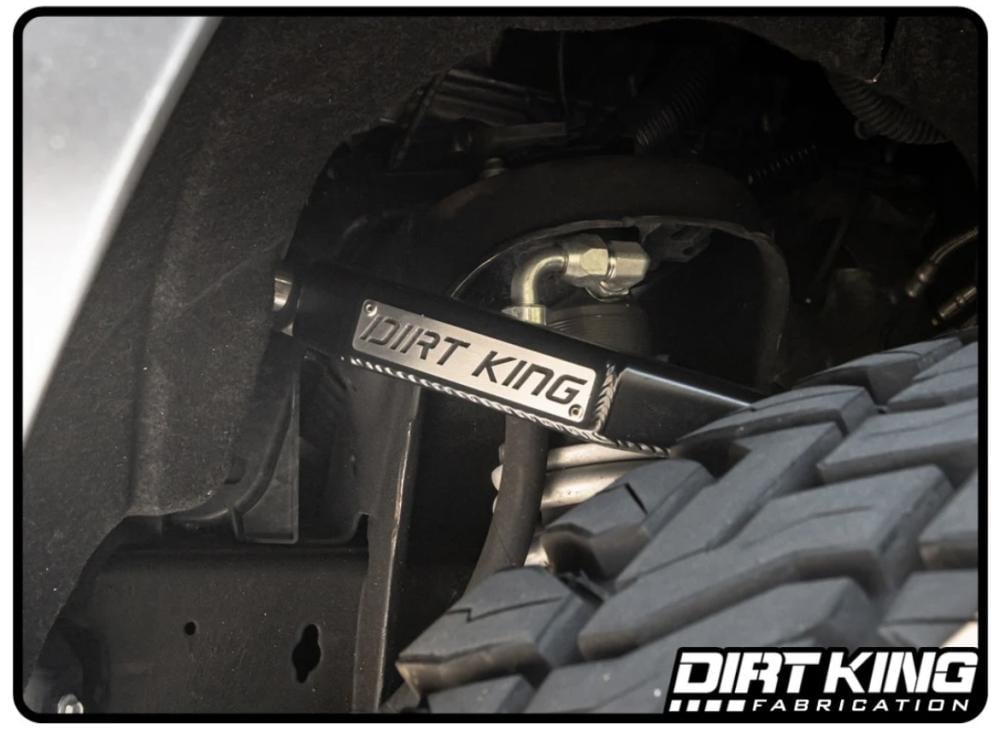

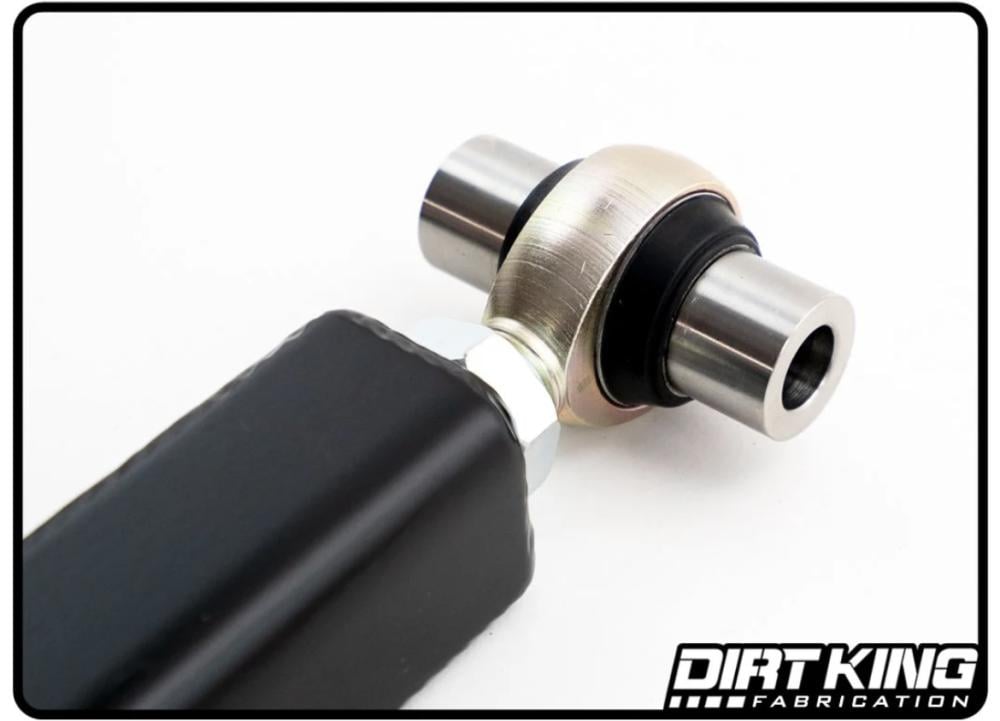

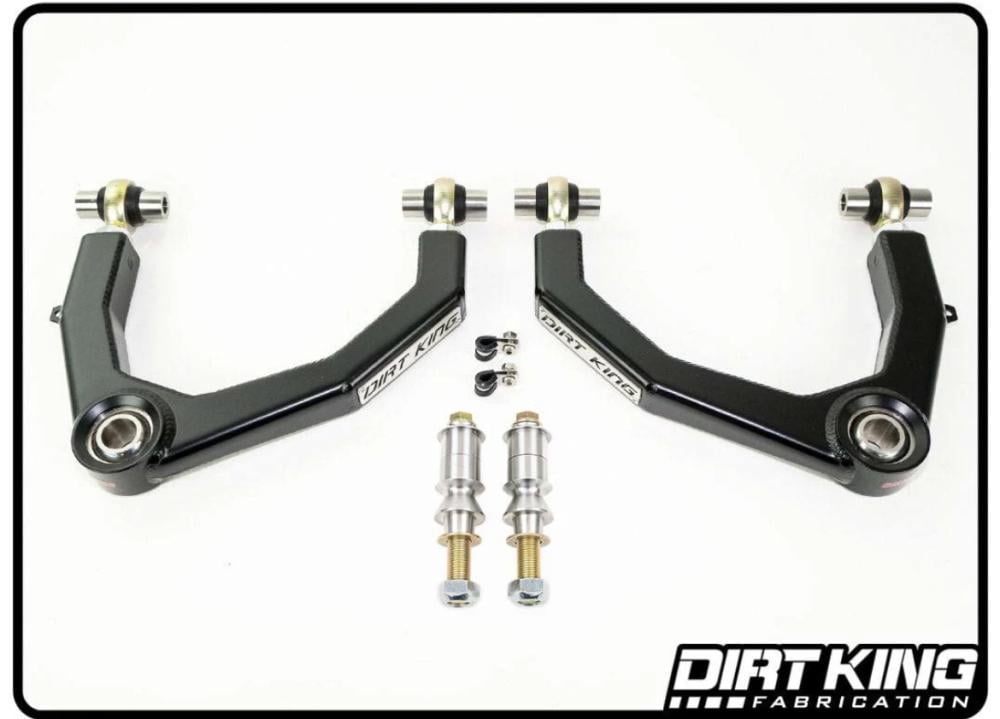

DIRT KING Heim Upper Control Arms

• Amount of Lift: Allows for 0-3” of lift
• Track Width: Stock
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 17”
• Coil over Shock Size:Factory or OEM replacement coilovers

Wheel Travel / Lift

The Dirt King upper control arms must be paired with aftermarket coilover shocks to lift the vehicle. The Dirt King arms offer maximum down travel compared to the stock upper control arms. These arms are compatible with Dirt King, King, Fox, Bilstein, ADS and Icon coilovers. Do not install these upper control arms with coil spacers paired with extended length aftermarket shocks.

Tire Info

The upper control arms allow for 35” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made.
