#10082J

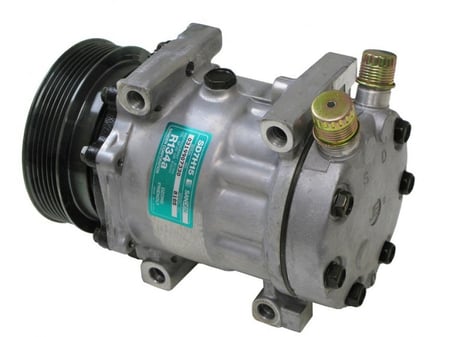

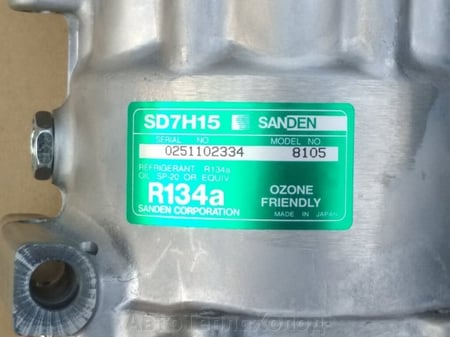

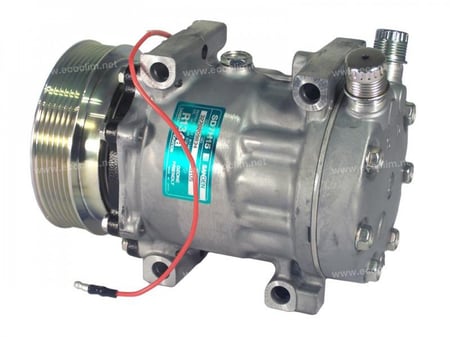

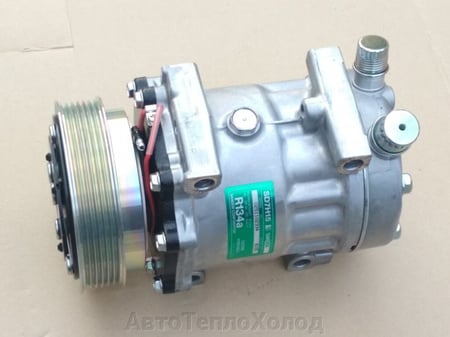

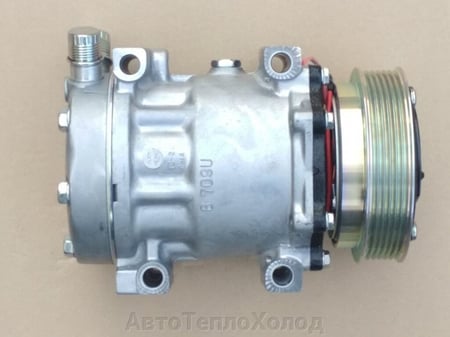

COMPRESSOR SANDEN SD7H15-8105 7 PISTON DIRECT MOUNT 12 V PK-8
mounting upper 101mm bottom 91mm
MADE IN JAPAN
كمبروسر ساندن 7 بستون 7 خط صناعه ياباني
قاعدو التركيب العلويه 101ملم السفلية 91 ملم
Sanden Model/s #: 4628, 7416, 7501, 8105
Description: OEM Sanden Compressor SD7H15 4628, 119mm, 12V, 6 Grooves
OEM #: 8FK 351 119 091
Compressor Family: SD7H15
Style: HD
Mount Type: SD7 Direct Ford
Ear ID: T90 B78
Refrigerant: R134A
Displacement: 155.00
Rotation Direction: CW
Oil Qty (cc): 240
Oil Type: PAG 100

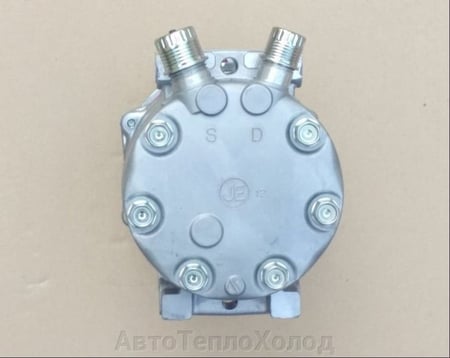

Cylinder Head: JD
Port Angle: V
Port Clocking: 12:00
Head Port Style: 3/4X7/8

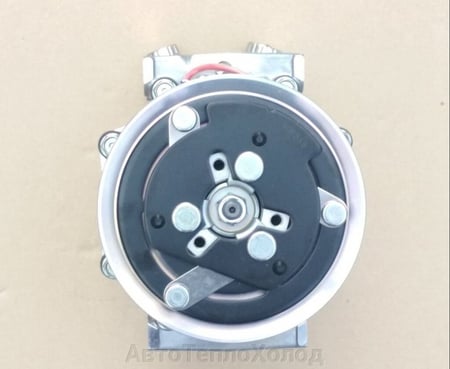

Rotor Size: 119
Rotor Groove: PV6
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Gauge Line to First Groove: 53.60
Gauge Line to Middle Groove: 62.50
Gauge Line to End Groove: 71.40
Coil Voltage: 12
Connector: 1 Wire Male Bullet
Shaft Type: Long Key Shaft
Diode Protection: None
#9662014935391
