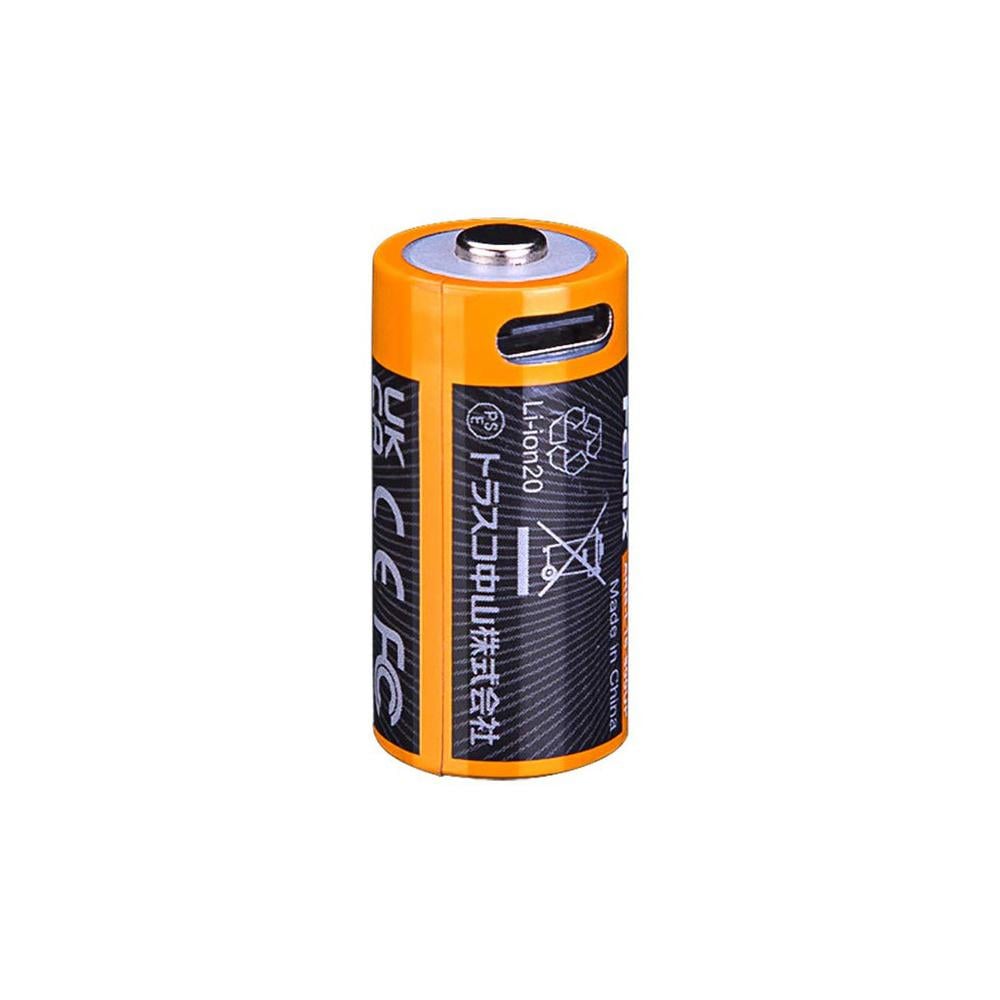

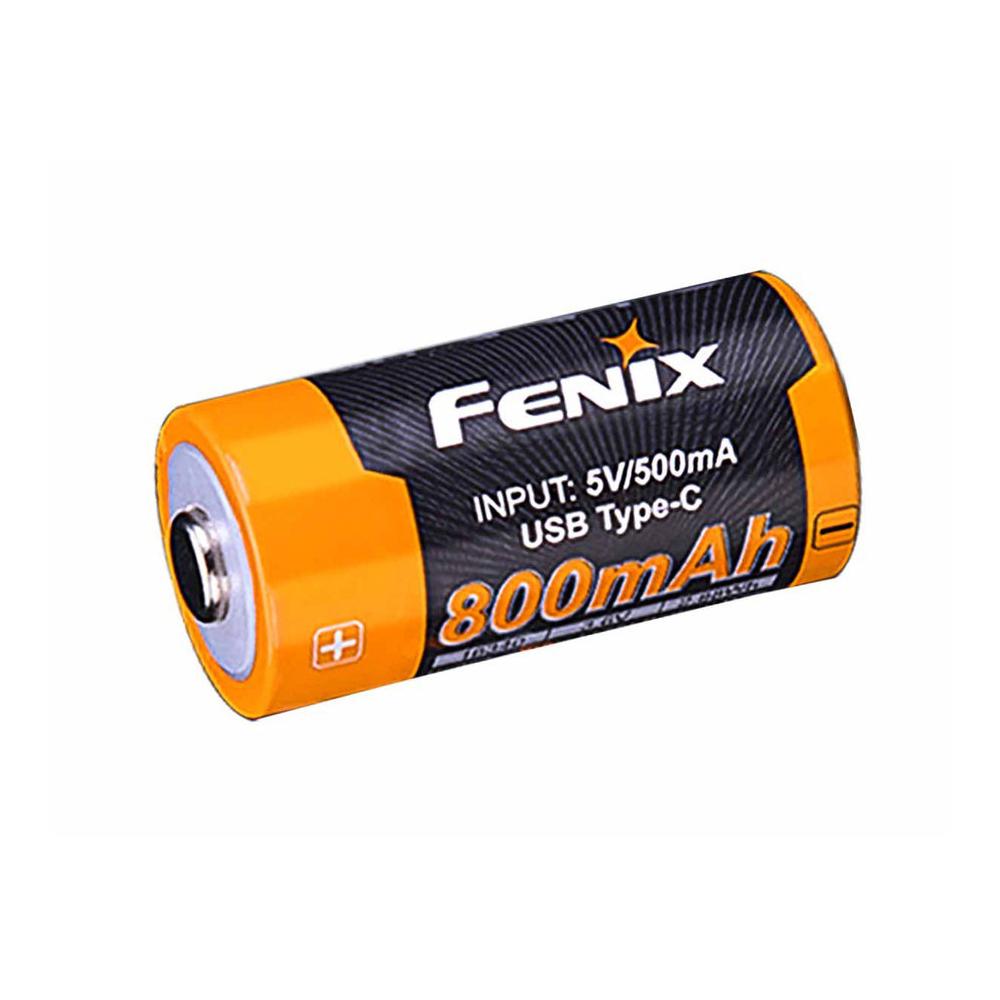

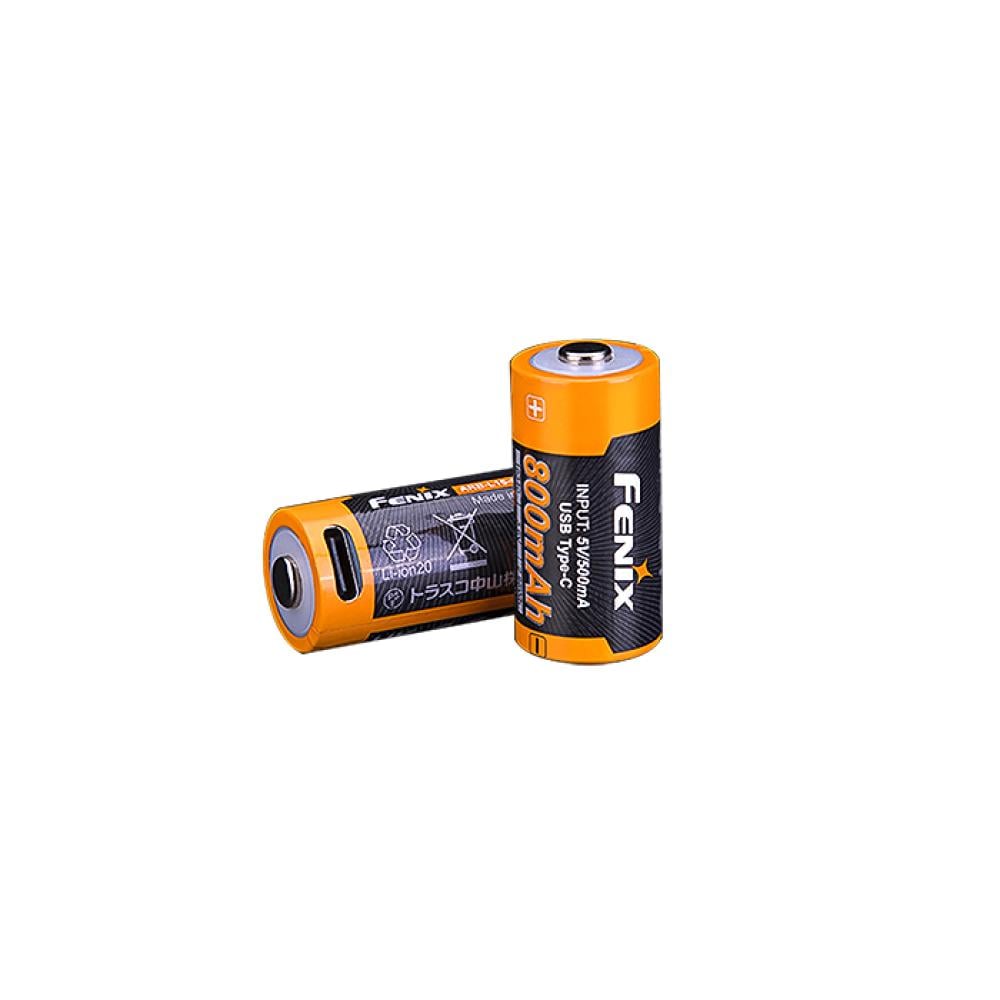

The Fenix ARB-L16-800UP Built-in USB-C Rechargeable Battery is a 16340 Li-ion battery with a protection circuit in the anode to help prevent short circuits, overcharge/discharge and overheating. This battery has its own USB Type-C charging port for quick/easy charging without the need for a separate charger. The battery also includes multiple levels of protection including overcharge protection, overheat protection, and pressure relief vents which expel waste gas in the rare case of an internal short circuit preventing an explosion.
t is designed to work with: PD25R, LD15R, E18R V2.0, and HM50R V2.0. A USB Type-C charging cord is NOT included.
SKU: ARB-L16-800UP
Barcode: 6942870310343
Specifications of the ARB-L16-800UP Built-in USB-C Rechargeable Battery
Size: 16340 Button Top Battery
800mAh Nominal Capacity
3.6V Nominal Voltage
Charging current: 0.6A
Charging current by USB port: 0.5A
Protection Circuit in the Anode to prevent short circuit
Multiple layers of protection
500 charge cycles can be expected from a properly maintained battery
Fully covered with a steel shell for impact resistance
Overcharge, discharge, short circuit, and overheating protection
Three sets of over-head protection: Pressure relief valve protection, separate microporous protection, and PTC cathodal block protection
Weight: 0.66 ounces (18.8g)
Size: Length: 1.38″ (35mm) Diameter: 0.66″ (16.7mm)
12 months free warranty from date of purchase
Indicator light on battery is red while charging, blue when charged
