1U rackmount, 12xSFP cage, 1xSFP+ cage, 16 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, RouterOS L6
CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU.
If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity.
It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.
Specifications
Details
Product code: CCR1016-12S-1S+
Architecture: TILE
CPU: TLR4-01680
CPU core count: 16
CPU nominal frequency: 1.2 GHz
Dimensions: 443 x 197 x 44 mm
RouterOS license: 6
Operating System: RouterOS
Size of RAM: 2 GB
Storage size: 128 MB
Storage type: NAND
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -20°C to 60°C
IPsec hardware acceleration: Yes
Powering
Details

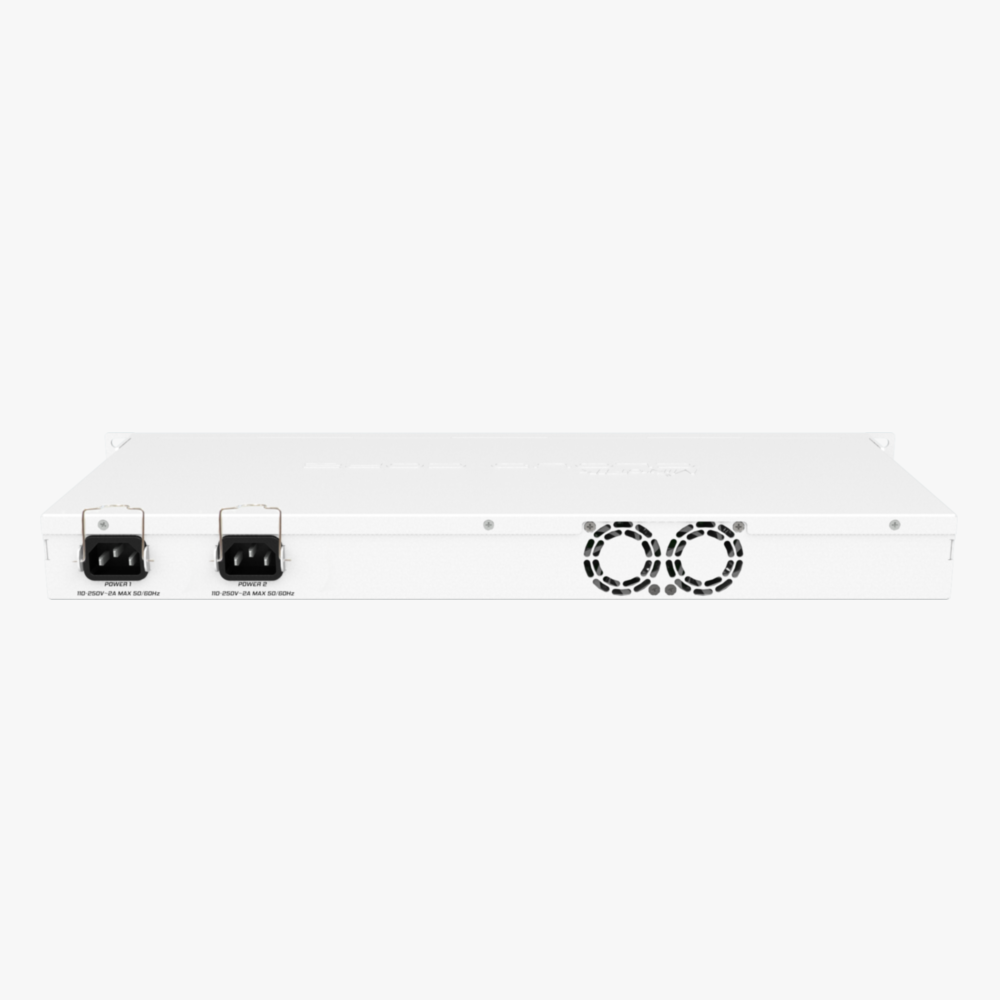

Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 47.5 W
Max power consumption without attachments: 34 W
Cooling type: 2 fans
Fiber
Details
SFP DDMI: Yes
SFP ports: 12
SFP+ ports: 1
Peripherals
Details
Memory card type: microSD
Memory Cards: 1
Serial console port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Other
Details
CPU temperature monitor: Yes
PCB temperature monitor: Yes
Mode button: Yes
Beeper: Yes
Certification & Approvals
Details
Certification: CE, EAC, ROHS
IP: IP20
