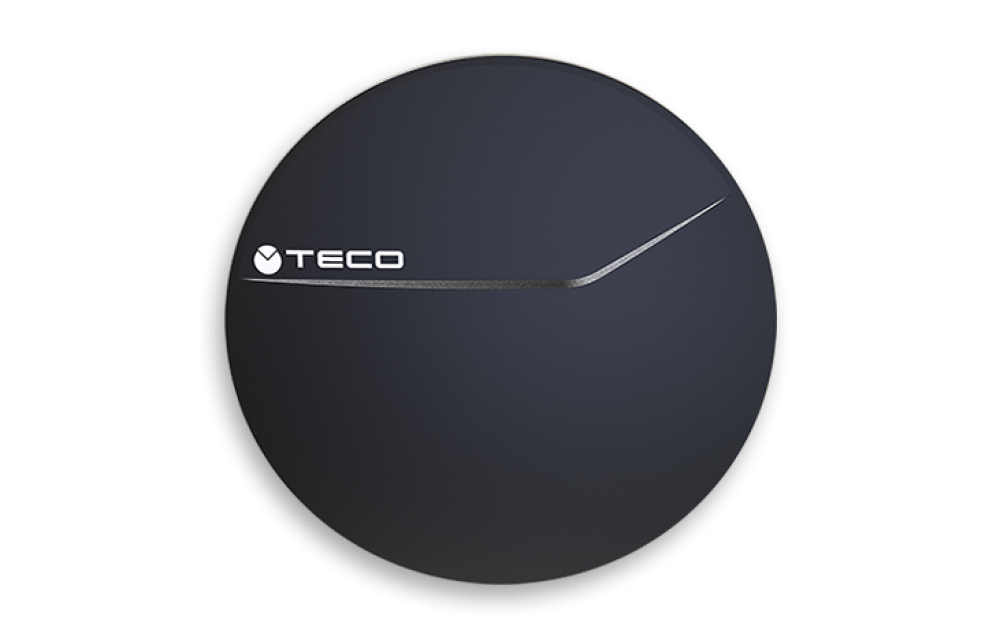

The internal control is composed of a concealed handle covered by the neutral faceplate, which is the optimal solution to further minimise its impact on the surrounding environment. Moreover, it is the most appropriate solution for public environments, precisely because the shut-off is not directly accessible.
ULTRA is a compact shut-off cock.
Full flow, in accordance with the EN 806-2 standard
Perfect flush mounting with T-Box adjustable depth
Control accessories with minimum protrusion flush with the wall
TOP-ENTRY removable shut-off valves with Soft Turn anti-jamming ball
The FASTEC® connection is convenient and safe to work with.
Reference Standard for Metal Materials: DIN EN 13828 (KTW-W270) DVGW W570-1
Material body: Brass CW617
Material support: Nylon PA6
Material balls: Engineered polymer
Working pressure: PN10 (10 bar)
Working temperature: 0 °C + 95°C
Fittings: FASTEC®- Threaded F.
