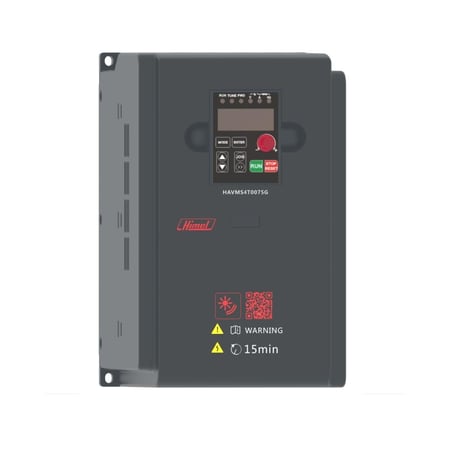

Range of product; SOLAR
Product or component type; Variable speed drive
Product specific application; Solar pump
Network number of phases; 1 phase,. [Us] rated supply voltage; 220 V AC - 15...15% 150...440 V DC
Supply voltage type support; AC/DC
Supply frequency;50... 60 Hz
Motor power kW; 4 kW for heavy duty
Motor power hp; 5 hp for heavy duty
Maximum transient current; 25.5 A during 1 min (heavy duty),30.6 A during 3 s (heavy duty),34 A during 0 s (heavy duty)
Asynchronous motor control profile; Sensorless vector control (SVC)
Voltage/frequency ratio (V/f); Speed drive output frequency;0... 400 Hz
Continuous output current; 17 A
