Range of product; SMART-Pump

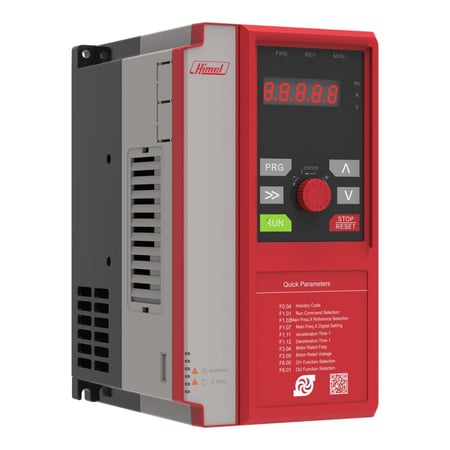

Product or component type; Variable speed drive
Product specific application; Pump, FAN,Chiller
Network number of phases; 3 phases
[Us] rated supply voltage;380... 440 V - 15...10 %
Supply frequency;50... 60 Hz
Motor power kW; 5.5 kW for normal duty
Motor power hp; 7.5 hp for normal duty
Maximum transient current; 15.6 A during 1 min (normal duty),19.5 A during 1 s (normal duty),23.4 A during 0 s (normal duty)
Asynchronous motor control profile; Sensorless vector control (SVC)
Voltage/frequency ratio (V/f); Speed drive output frequency,0... 599 Hz
Continuous output current; 13 A
EMC filter; Without EMC filter
