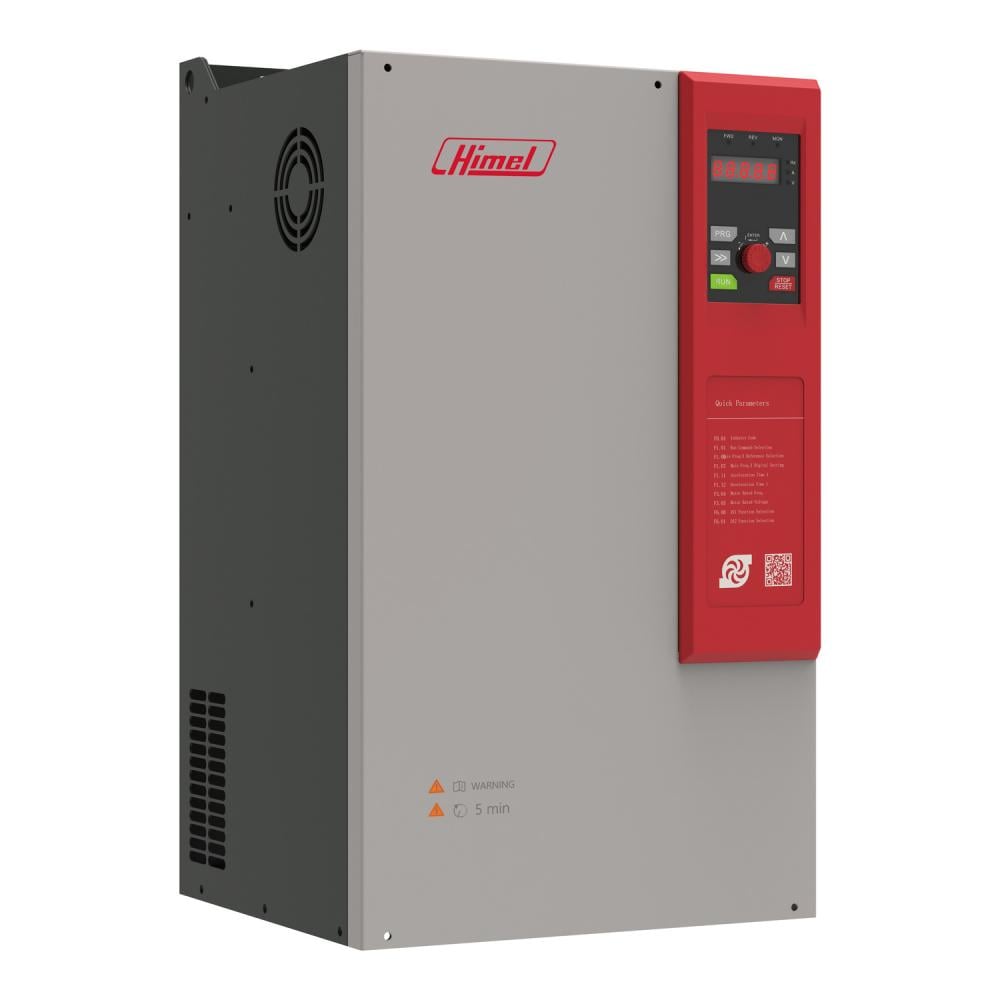

Range of product-SMART-Pump
Product or component type-Variable speed drive
Product specific application-Pump, Fan, Chiller
Network number of phases-3 phases
[US] rated supply voltage-380... 440 V - 15...10 %
Supply frequency-50... 60 Hz
Motor power kW-132 kW for normal duty
Motor power hp-175 hp for normal duty
Maximum transient current-307.2 A during 1 min (normal duty),384 A during 1 s (normal duty),460.8 A during 0 s (normal duty)
Asynchronous motor control profile-Sensorless vector control (SVC),Voltage/frequency ratio (V/f)
Speed drive output frequency-0... 599 Hz
Continuous output current-256 A
EMC filter-Class C3 EMC filter
