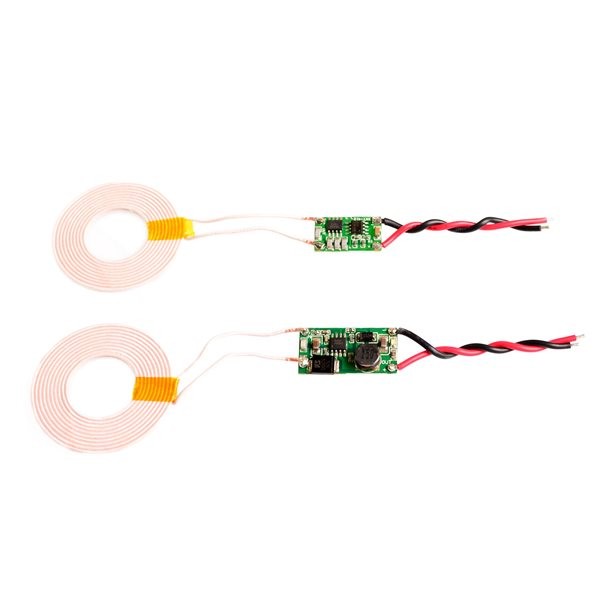

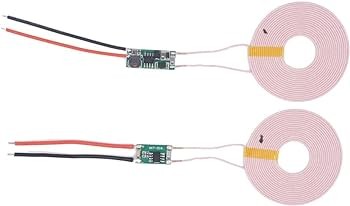

Taidacent 5V 2.6A TX Wireless charger Coil Induction Toothbrush Charger PCB 5V 2A RX 15W Wireless Magnetic Power Bank Module
5V 2.6A high power transmission output 5V 2A high power wireless charging wireless power supply module XKT001-01
Introduction to XKT001-01
This module is developed and designed by the wireless charging chip XKT001 newly developed by Xinketai, which can realize high-power transmission function on a very thin and small coil. The small number of coil turns greatly reduces the product cost, is convenient for application, and has high output power.
Parameter
Transmitter module input voltage: 5 V
Transmit current 2.6A when receiving full load
Transmitting coil outer diameter: 48mm, inner diameter 30mm, thickness 0.9mm
Launch plate size: length 16mm, width 12mm, thickness 2.5mm
Receiving coil outer diameter: 44mm, inner diameter 30mm, thickness 1.9mm
Receiving module: length 30mm width 16mm height 4.3mm
Remarks
Output current 5 V2A Note that this module is larger than 2mm, it will damage the receiving module
