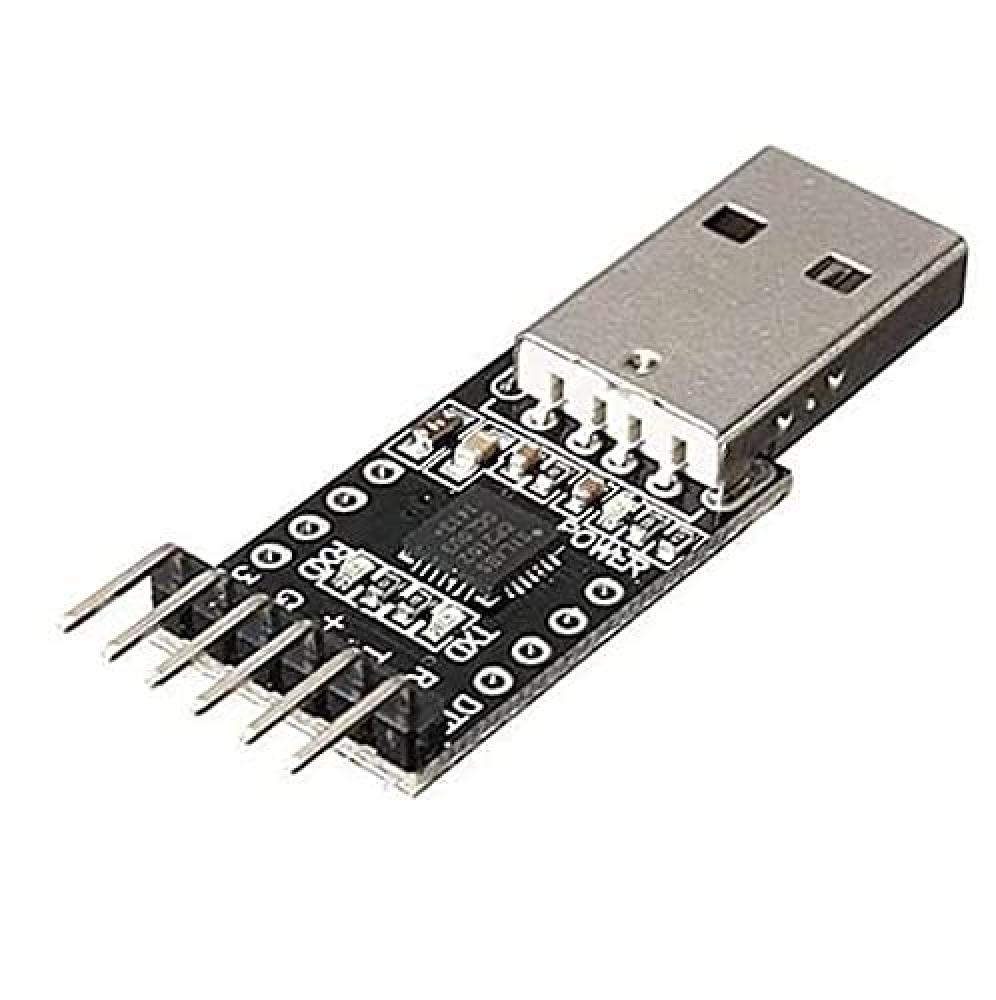

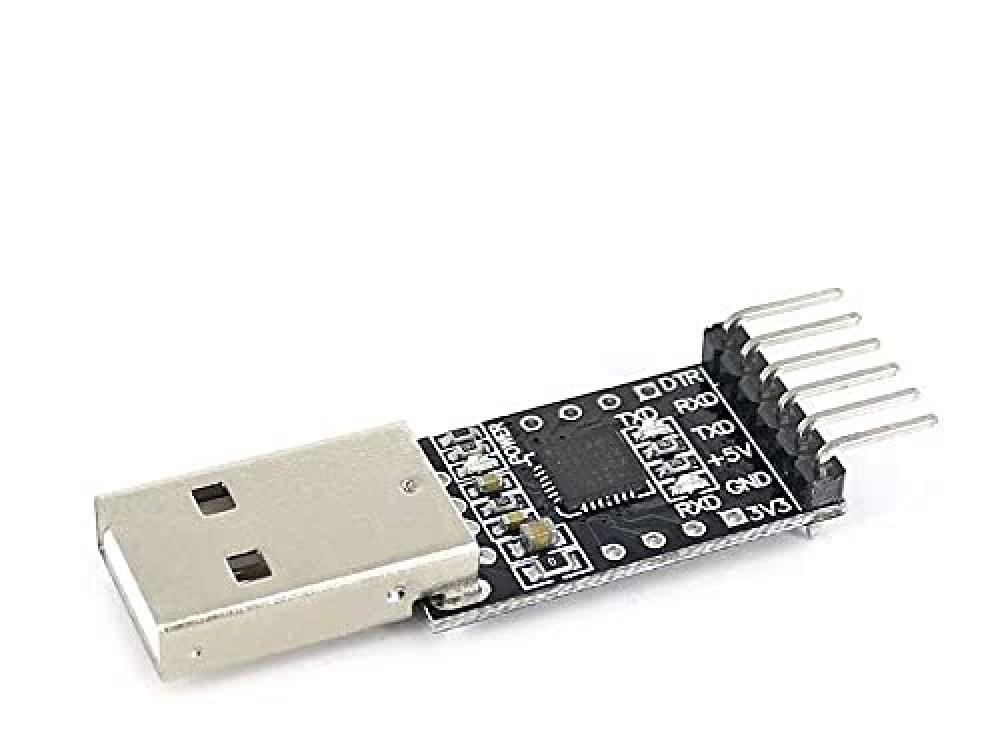

CP2102 Black - 6P USB 2.0 to UART

Features:

1.PCB size: 26.5mm * 15.6mm

2.PCB Color: Black

3. Weight: 4g

4. Using the new chip CP2102

5. with resettable fuse. In the event of accidental short-circuit can effectively protect your device and computer USB port to download

6. With three LEDs: power indicator, the indicator data reception, data transmission indicator, work status at a glance

7. 3.3V and 5V with two power output

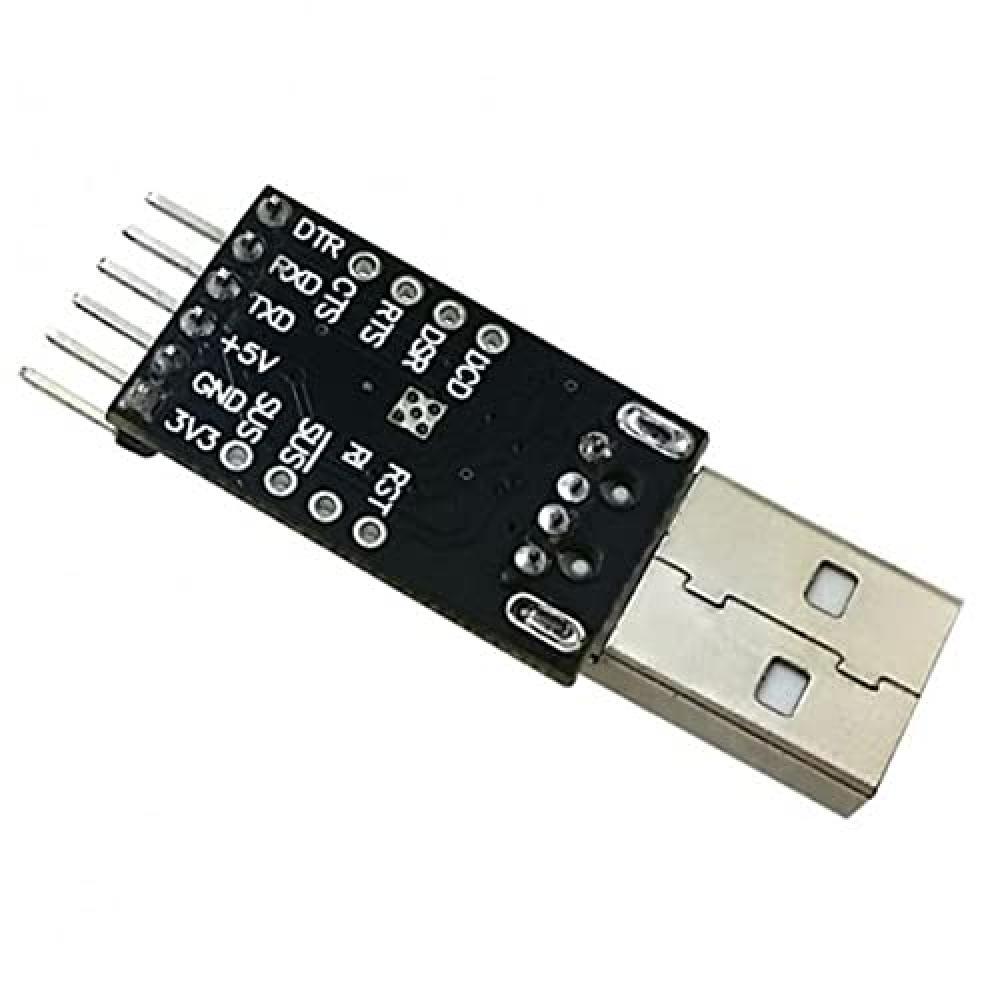

8. all the useful lead pins

9. with reset signal output can be directly Pro mini and other Ard uino board to download!

10. Compatible Operating Systems:

 -Windows 98 / Me / 2000 / XP / 7

 -MAC OS-9

 -MAC OS

 -X-Windows CE

 -Linux 2.40 or later

CP2102 core chip : CP2102 USB to serial chip is the best quality , most stable performance far exceeds the cost of the same chip , such as PL2303, FT232, CH341 and so on. High-speed, reliable, stable is capable of leading CP2102 USB to serial module sales in the important reasons.

Ultra-small size : the circuit board only 3.1cm X 1.8cm. Ultra- small size , lack of a U disk size , only with a USB port width , even on those two USB ports from a very tight laptop can easily be placed side by side two .

3.3V and +5 V Compatibility: This product perfectly supports 3.3V. Now a lot of high-end microcontroller, such as ARM, STM32, DSP , adopted 3.3V. Additional modules are only compatible 5V level , they do not have 3.3V voltage output function.

Power Output: This module can be powered through to the microcontroller system to facilitate debugging. 5V-500mA or 3.3V-100mA.

Overcurrent protection : Onboard resettable fuse , even if the positive and negative short-circuit will not damage the circuit board or computer. If there is a short circuit or current exceeds 500mA , the fuse will automatically disconnect , to be short-circuited fuse circuit to restore non- normal . Effectively protect the security of your computer.

Transceiver indicator : When the serial line to send or receive data lines , the board will receive indicator lights for easy debugging.

TTL level interface : can be directly connected microcontroller or other embedded devices, such as 51, STC, AVR, ARM, FPGA , etc., without conversion.

RS232 level interface : connect a computer or Rs232 level serial devices.

RS485 level interface : automatic send and receive control without transceiver control line , the default receiving state , to send status line when sending data .

Freedom Huzhuan four levels : a unique circuit design , USB, TTL, RS232, RS485 freedom of conversion, switched by the switch to achieve physical , convenient and reliable , without interference.

High-speed communications : baud rate up to 2Mbps.

DTR, RTS signals: serial module leads the DTR, RTS signal is versatile, supporting MSP430 microcontroller BSL downloads.

SMT machines , industrial-grade chips : This module uses the whole machine placement process technology, quality and cheap manual patch welding have a qualitative difference , stable and reliable performance guarantee.
