Top: Quad Nvme Enclosure, 4-Bay RAID Enclosure, Support Soft Raid Thunderbolt 3 to 4 M.2 Enclosure, 40Gbps Transmission Speed

JEYI Quad NVMe SSDs Enclousure, support Thunderbolt 3

1. Installing four NVMe SSDs in this enclosure which supports Thunderbolt 3 expands the capacity to 32TB.

2. Supports RAID0, RAID1, RAID5, and JBOD. Help you accelerate, expand, and back up your data.

3. The all-aluminum enclosure provides better protection and maximizes cooling performance, built-in temperature control system and disk health monitoring system.

4. Must be paired with a PD 30w power supply to operate properly. USB C 33w adapter and 1.5m/4.5ft PD cable are included.

5. Support four NVMe SSDs, each SSD exclusive to PCIe X1 bandwidth, quad SSDs share the bandwidth of PCIe 3.0 X4(Thunderbolt 3 40Gbps).

6. Plug&Play four disks raid speed up to 3500Mbs single disk speed up to 1000Mb/s.

7. Package: NVMe Enclosure Docking Station, Thermal compound pads X4, Thunderbolt 3 cable, PD 33W adapter, PD 1.5m/4.5ft USB C Cable

This should be the first Quad SSDs Enclosure on Aliexpress

If you need to transfer files quickly, if you need to keep important files safe, if you are a content creator, engineer, data analyst, digital artist, video creator etc. Adopt dual-chip processing, transfer and storage security and stability, support 24 hours of uninterrupted work, suitable for enterprise data storage, server extension,video editing, photo backup, storage of documents, music libraries, storage of video surveillance recordings and corporate data storage.

And you have a Thunderbolt 3/4 interface computer, then this docking station with 4 NVMe drives is the best choice for you.

It supports combining 4 nvme hard drives to expand storage space to 32TB, it also supports soft raid, raid0, raid1, raid5.

Yes, it does not require additional drivers, plug and play, and if your computer is a USB 3.2 Gen2 interface, it also supports 10Gbps transfer.

Product Size: 44*14*4cm Product Weight: 550g

Installing four NVMe SSDs in this enclosure expands the capacity to 32TB and supports RAID0, RAID1, and RAID5.

The all-aluminum enclosure provides better protection and maximizes cooling performance, built-in temperature control system and disk health monitoring system. USB C 33w adapter and 1.5m/4.5ft PD cable is included. Must be paired with a PD 30w power supply to operate properly.

Support four NVMe SSDs, each SSD exclusive to PCIe X1 bandwidth, quad SSDs share the bandwidth of PCIe 3.0 X4(Thunderbolt 3 40Gbps). Come with 50cm/1.8ft Thunderbolt 3 cable.

Plug&Play four disks raid speed up to 4500Mbs single disk speed up to 1000Mb/s.

Enjoy Extreme Fast PCIe 3.0 X4

Each drive occupies one PCIe x1 lane, and the lanes of four SSDs are combined into one PCIe X4 lane.

Four disks raid speed up to 3500Mb/s, single disk speed up to 1000Mb/s.

The speed depends on your hard drive's host, drive version, size of the transferred files, fragmentation files etc.

Supports RAID0, RAID1, RAID5, and JBOD

It supports soft raid, so you can mix and match your drives as you like.

The largest capacity, raid 0

The most secure, raid 1

The most balanced, raid 5

This JEYI 4 M.2 SSDs Dock provides the amazing capability to RAID across multiple M.2 drives. Configure and reconfigure your storage together on Mac and Windows. You can easily upgrade or add additional capacity or RAID mode to meet a variety of usage situations.

Maximized Capacity to 32TB

This should be the first Portable Quad NVMe SSD Dock which support Thunderbolt3

NVMe (Non-Volatile Memory Express) is a hyper-efficient communications interface protocol built from advantage of SSD technology and high-performance connection PCIe. And this ThunderRate 4NVMe add 4 external M.2 SSD to boost up your creative ability.

Powerful Cooling Capability

NVMe M.2 drives are so fast that they can generate a lot of heat, so you're worried that this JEYI Quad NVMe Enclousre won't dissipate heat well?

You don't have to worry at all!

It's all made of aluminum casing, the large cooling area can easily take away the heat generated by the hard drive, and it comes with multiple size cooling thermal compound pads, which can bring the hard drive's heat core into better contact with the aluminum casing, and designed with honeycomb heat dissipation holes, allowing the hard drive to dissipate heat faster.

More Drives Require More Power

33W PD power supply perfectly fits with Windows / Linux/ Mac and other Apple desktops or laptops.

1* PD Power Adapter, 1* USB PD Cable

You don't have to worry about not having a corresponding adapter

ATTENTION!!!!

Minimum operating conditions of PD 30W

Come with Thunderbolt 3 Cable

1pcs male to male 50cm thunderbolt 3 cable

Supports 40Gbps transfer rate

Desktop / Notebook use

Tips:

Windows Native Disk Tools "Disk Management" support RAID 0/1/5

MAC Native Disk Tools "Disk Utility" support RAID 0/1/JBOD, don't support RAID 5. Need 3rd party tool to create RAID5 on MAC os.

Remind again!!!!!

Must connected with 30W power, included in the package!!!!!!!!

How to set up Raid0/1/5 on Windows

Step 1. Initial settings

1). Initialize Disk

Initialize your disks to GPT form

2). Convert to Dynamic Disk

Step 2. Select your disks to convert

Choose the disks you want to convert

Step 3. Select the Volume you want

New Striped Volume Raid 0

New Mirrored Volume Raid 1

New RAID-5 Volume RAID-5

Step 3. Complete setup

How to set up Raid0/1/5 on MACos

Step 1. RAID Assistant

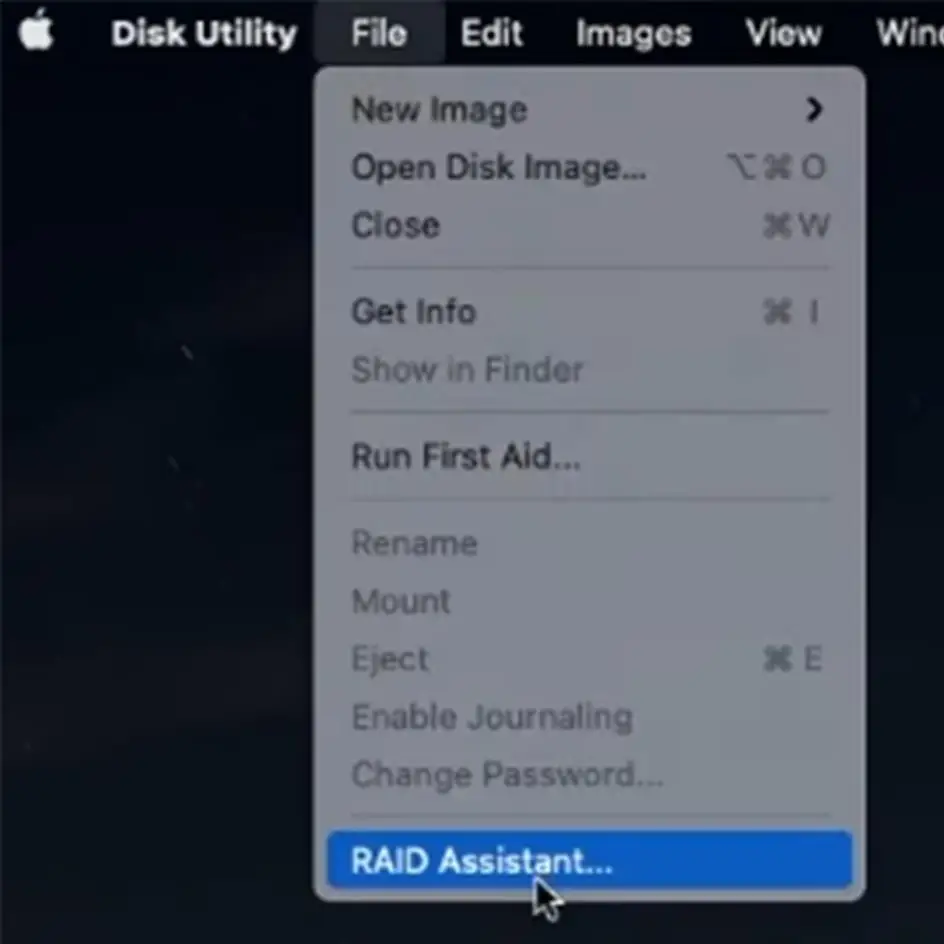

Click "Disk Utility" > "File" > "RAID Assistant"

Step 2. Choose the type

Step3. Choose the disks you want to RAID

Portable and Slim Size

Product Size: 44*14*4cm

Product Weight: 550g

Portable, lightweight, you can take it anywhere.

All-aluminum construction can effectively cushion the impact of drops to better protect your hard drive

Question:The product page lists three different max speeds; 4500mb/s, 3200mb/s and 2700mb/s. which is it? should be 4000mb/s, each drive is on a 1 lane, right?

Answer:Hi, we have check with SOME brand SSDs, the max speed is about 3200-3300mb/s, S**sung SSD *80pro upto 4000-4500mb/s(depend on the work Temp.)

Question:can we use with only two nvme ssd?

Answer:Yes, you could, you could even use one SSD. But that defeats the purpose of Jeyi making four SSDs raid Dock.

Question:Does this enclosure support larger than 2tb nvme drives? like the newer 4tb?

Answer::Yes, it support single disk up to 8TB, 4 disks raid capacity upto 32TB
