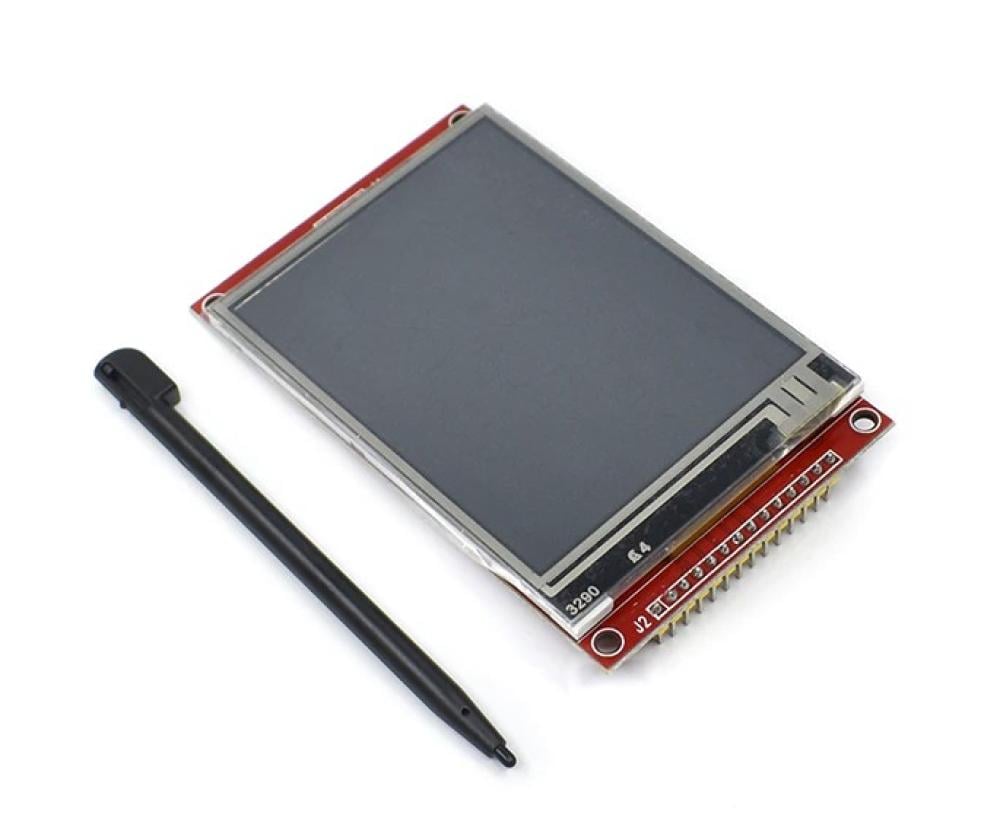

شاشة اردوينو | Serial TFT LCD Module Touch Screen 3.3 inch

3.2-inch TFT LCD Screen with SPI Real Hardware Interface

• Type: With touch panel / No touch
• Size: 3.2 inch SPI Serial
• Display size: 55.00(W) x 89.30(H) mm
• Driver element: a-Si TFT active matrix
• Pixel arrangement: RGB vertical stripe
• Driver IC: ILI9341
• Backlight: White LED
• Viewing Direction: 6 o'clock
• Color Depth: 65K
• Resolution: 240RGB x 320 Dots
• Data Interface: 4-Wire SPI interface
• VCC Voltage: 3.3V - 5V
• IO Voltage: 3.3V
• Touch Panel: Yes (requires at least 4 IOs from the MCU)
• Additional features: PCB plate with power supply IC and SD, compatible with 5110 interface.
