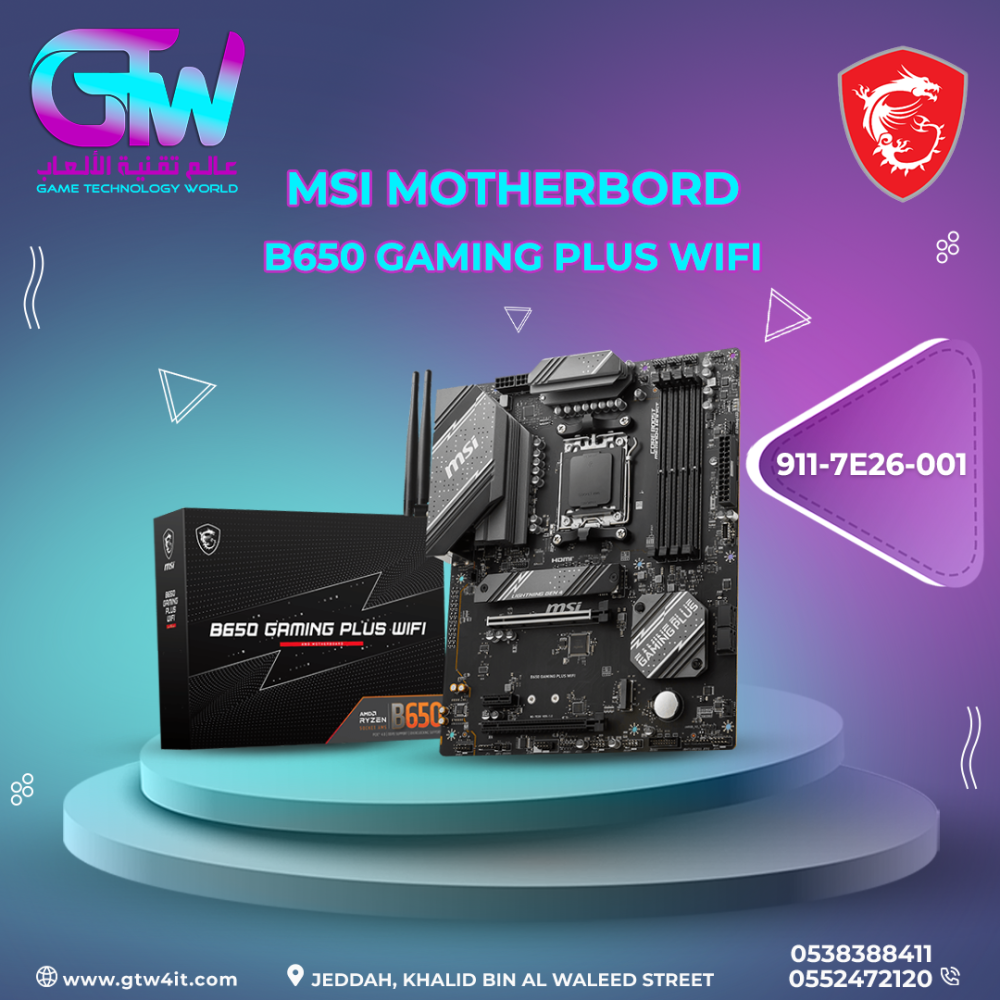

MSI MotherBoard B650 GAMING PLUS WIFI

COOLING OVERVIEW

Extended Heatsink

1. Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

M.2 Shield Frozr

1. Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.

Heavy Plated VRM Heatsink

1. The VRM heatsink covers the upper MOS and helps dissipate the heat.

7W/mK Thermal Pad & Additional Choke Pad

1. High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.

Chipset Heatsink

1. The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

B650 GAMING PLUS WIFI

• Supports AMD Ryzen™ 7000 Series Desktop Processors
• Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
• Enhanced Power Design: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
• Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
• Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2 20G
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• High Quality PCB: 6-layer PCB made by 2oz thickened copper
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
