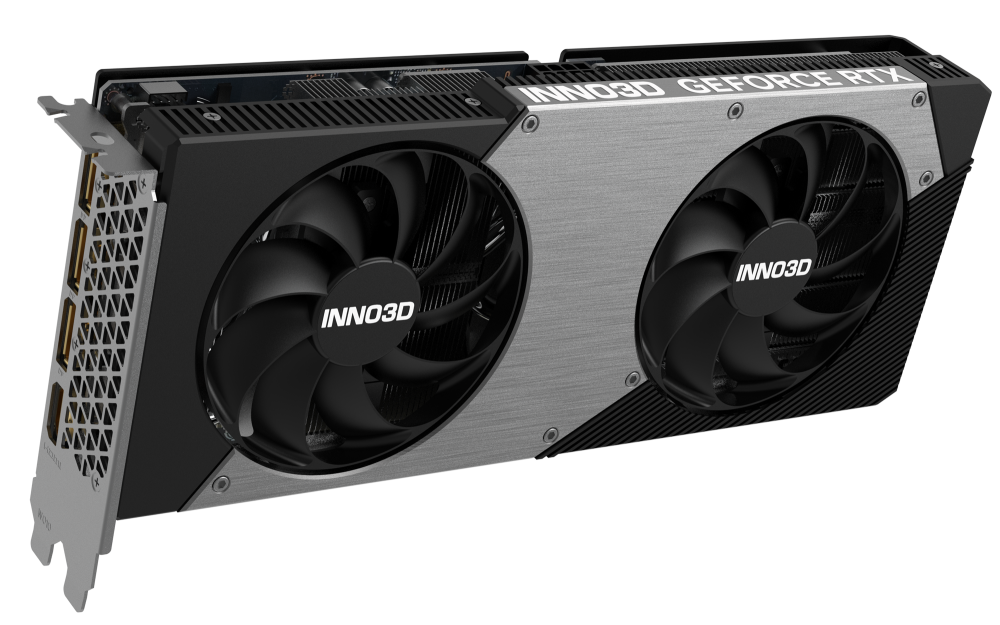

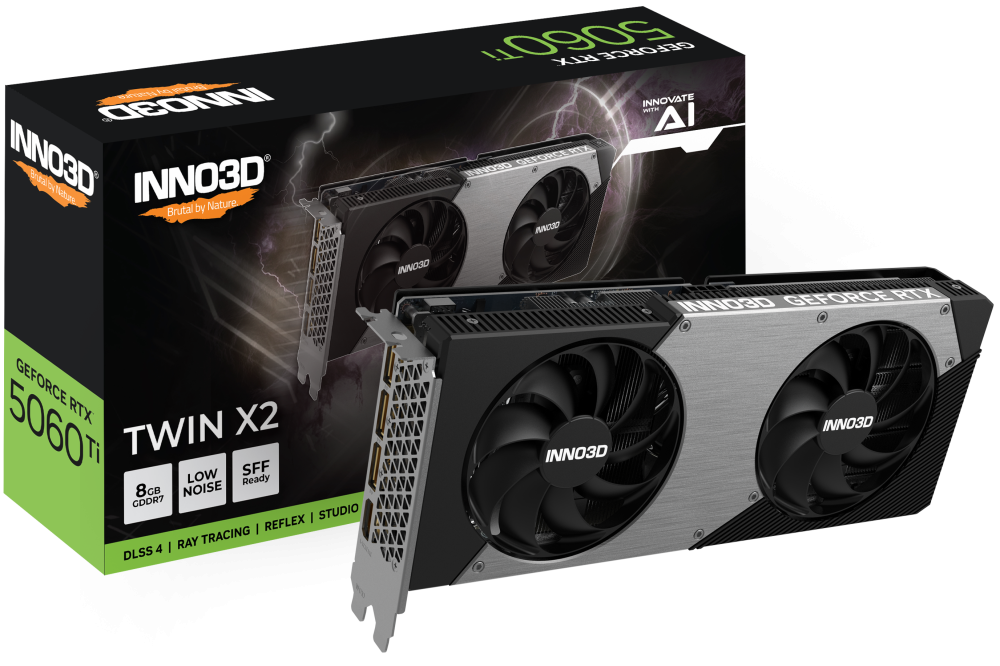

INNO3D GeForce RTX™ 5060 Ti 8GB TWIN X2

GPU Engine Specs

CUDA Cores

4608

Boost Clock (MHz)

2572MHz

Base Clock (MHz)

2407MHz

Thermal and Power Spec

Minimum System Power Requirement (W)

650W

Supplementary Power Connectors

1x PCIe 8-pin cables

Memory Specs

Memory Clock

28Gbps

Standard Memory Config

8GB

Memory Interface

GDDR7

Memory Interface Width

128-bit

Memory Bandwidth (GB/sec)

448 GB/sec

Feature Support

Real-Time Ray Tracing

Yes

Ray Tracing Cores

4th Generation, 72 TFLOPS

Tensor Cores

5th Generation, 759 AI TOPS

NVIDIA Architecture

Blackwell

Microsoft DirectX

12 Ultimate

NVIDIA DLSS

4

NVIDIA Ansel

Yes

NVIDIA FreeStyle

Yes

Bus Support

PCI Express Gen 5

NVIDIA ShadowPlay

Yes

OS Certification

Windows 11 / 10, Linux, FreeBSDx86

NVIDIA Highlights

Yes

NVIDIA G-SYNC™-Ready

Yes

Game Ready Drivers

Yes

NVIDIA Studio Drivers

Yes

NVIDIA GPU Boost™

Yes

Vulkan API

1.4

OpenGL

4.6

NVIDIA Encoder

1x Ninth Generation

NVIDIA Decoder

1x Sixth Generation

Accessories

Graphics Card Dimensions

Length

250mm

Height

116mm

Width

41mm

Display Support

Multi Monitor

up to 4

Maxmium Digital Resolution

4K at 480Hz or 8K at 165Hz with DSC

HDCP

2.3

Standard Display Connectors

3x DisplayPort 2.1b, 1x HDMI 2.1b
