Nissan Patrol Y62 (2013-2023) مساعدات هوائية موديل T طقم كامل + أنظمة التحكم بالهواء

Name: Nissan Patrol Y62 (2013-2023) مساعدات هوائية موديل T طقم كامل + أنظمة التحكم بالهواء
Price: 14825.69 SAR
Availability: InStock

14825.69 ر.س

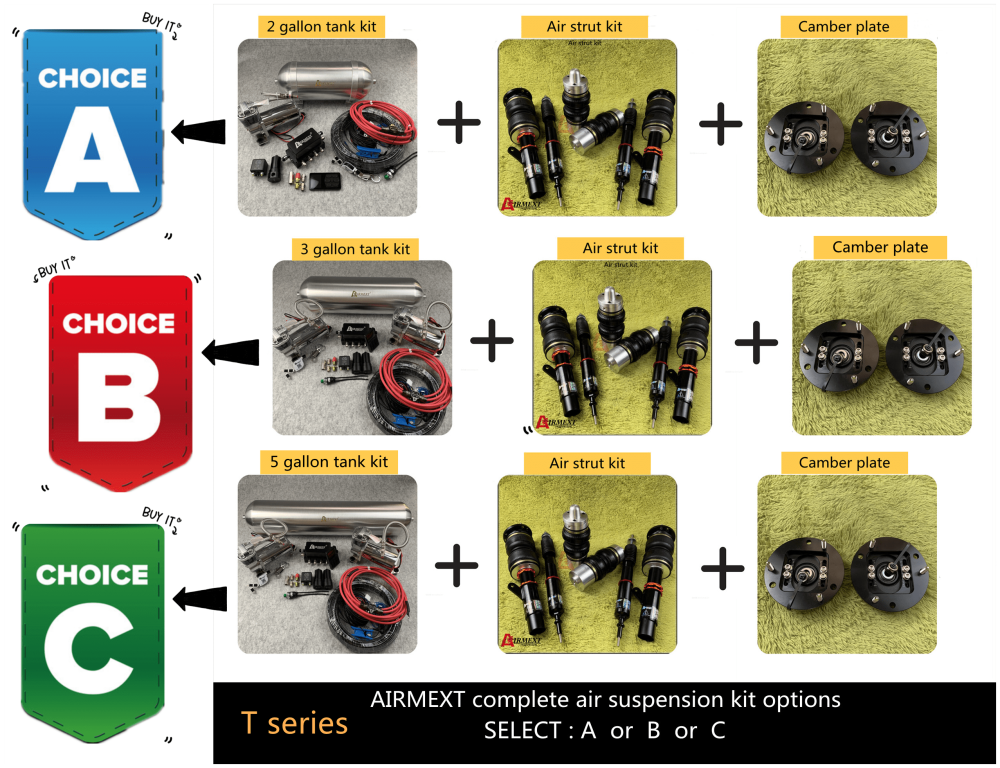

حجم خزان الهواء *

‌

خيار A: طقم جالونين (7.6 لتر)

‌

خيار B: طقم 3 جوالين (11.4 لتر)

‌

خيار C: طقم 5 جوالين (19 لتر) (مستحسن)

Model Fitment

Nissan Patrol Y62 (2013-2019)

Functional Overview

-----This air suspension system is used to refit cars which weighs around 2T , Adjust the chassis height ; Rise automatically when driving while lower when cars park, ability of shock absorption can be adjusted at random, significantly improve the comfort.

-----This is customized product as per your detailed car model , please contact us before you order and clarify your car information so that we can supply the accurate one.

---Electronically controlled air suspension system, also known as the control unit is the core part of the air suspension system and electric control system has the versatility, can be applied to all models, electronic control system for the button panel , AG and wireless remote control lift, have both before and after lifting function, supporting AG ECU to control computer, key-press panel and ECU, the ECU and solenoid valve only need a cable to plug connection between line, wiring simple, ISO9001:2008 certificate on all our products.

جميع القطع تصنع في ألمانيا و ايطاليا لضمان أعلى جودة ممكنة

Features:

---- Four wheels independently controlled (RISE/DROP)

* Front 2 wheels Rise/Drop at same time

* Rear 2 wheels Rise/Drop at same time

* 4 Wheels Rise/Drop at same time

-----Four wheels Slightly adjustable

---- Wired controller

----Cellphone APP control (IOS and Android available)

---- Four wheels independently controlled (RISE/DROP)

* Front 2 wheels Rise/Drop at same time

* Rear 2 wheels Rise/Drop at same time

* 4 Wheels Rise/Drop at same time

-----Four wheels Slightly adjustable

---- Wired controller

----Cellphone APP control (IOS and Android available)

----12 language: Chinese, Traditional Chinese, English, Japanese,Spainish,French,Thai,Korean,Russian,Dutch,Germany,Arabic

---- 5-Level height memory presented /adjustable

----Password changeable

---- Long press up/down button to the end

---- LED Display for Pressure (PSI)

---- Bluetooth signal strength reminder

Display precision : up to 1 PSI

Memory accuracy: up to 3 PSI

---- Automatically Security Checking & Adjusting

---- Whole stroke of car body RISE/ DROP (5.9’’)

Parts included are exactly same as listed below:

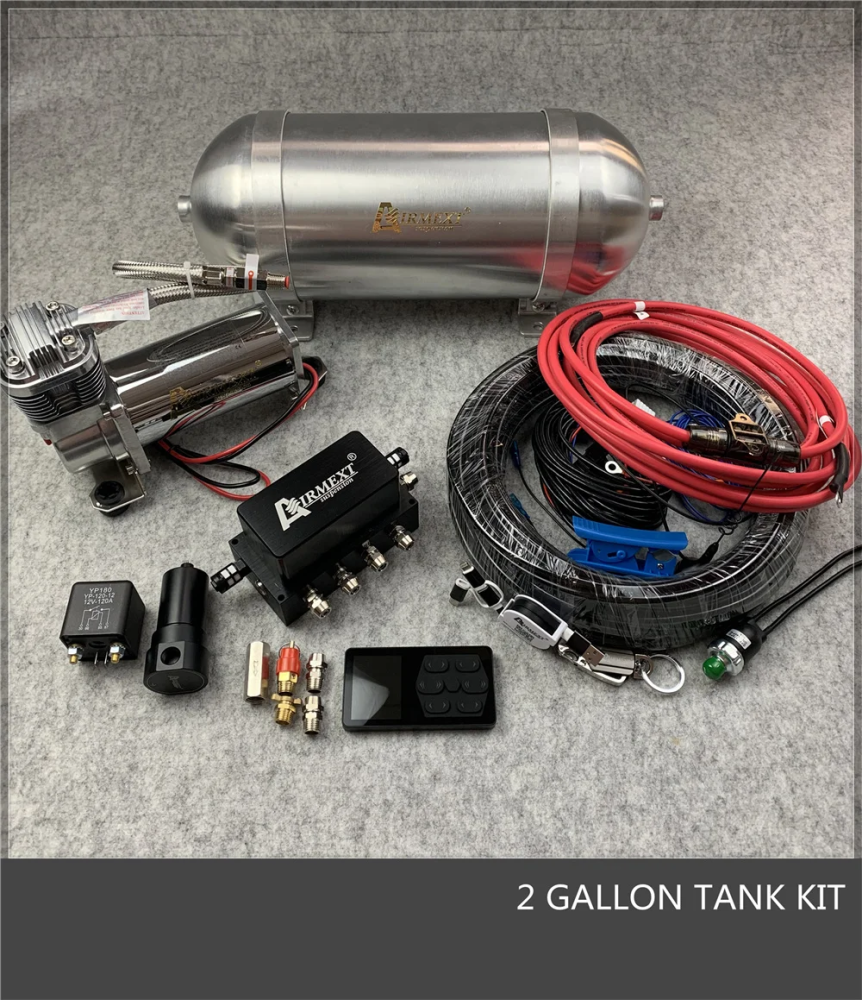

SINGLE PUMP KIT A-------

(1) 2 Gallon air tank (seamless air tank) *1 piece

(2) Silent air pump (SN360)*1 piece

(3)(T series) AIRMEXT air strut kit* 1 set

(4) AIRMEXT air management (SN X5) *1 set

PARTS including:

*Integrated ECU& Valve Group Unit : 1 piece(Electronic Control Unit &Solenoid Valve Manifold Group )
*Relay: 1 piece
*Signal receiver: 1 piece
*Wired / Wireless controller Panel(LED screen) *1 piece

(5) Oil & Water Separator *1 pcs

(6) Sealing press switch(145psi on/175psi off) *1 piece

(7) Connectors *1 set

(8) Air pipe, cables etc. * 1 set

(9) Buyer Manual *1 piece

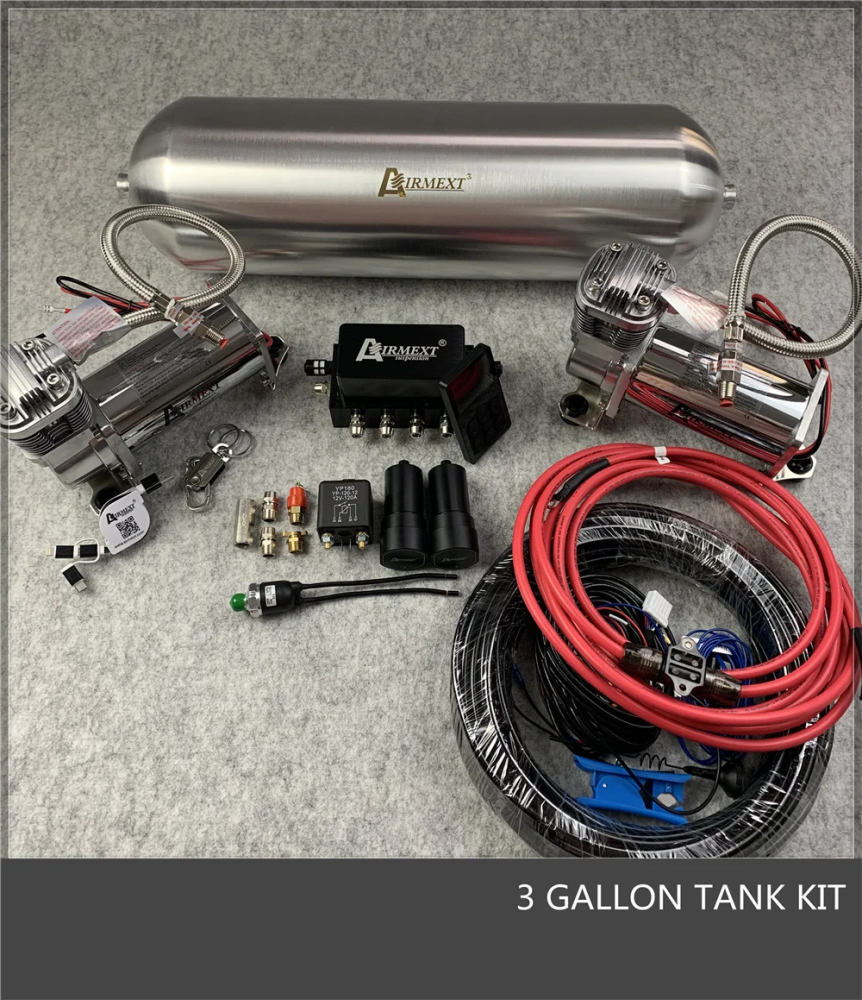

DUAL PUMP KIT B-------

(1) 3 Gallon air tank (seamless air tank) *1 piece

(2) Silent air pump (SN360)*2 pcs

(3)(T series) AIRMEXT air strut kit (including camber plate): 1 set

(4) AIRMEXT air management (SN X5): 1 set

PARTS including:

*Integrated ECU& Valve Group Unit : 1 piece(Electronic Control Unit &Solenoid Valve Manifold Group )
*Relay: 1 piece
*Signal receiver: 1 piece
*Wired / Wireless controller Panel(LED screen) *1 piece

(5) Oil & Water Separator *2 pcs

(6) Sealing press switch(145psi on/175psi off) *1 piece

(7) Connectors *1 set

(8) Air pipe, cables etc. * 1 set

(9) Buyer Manual *1 piece

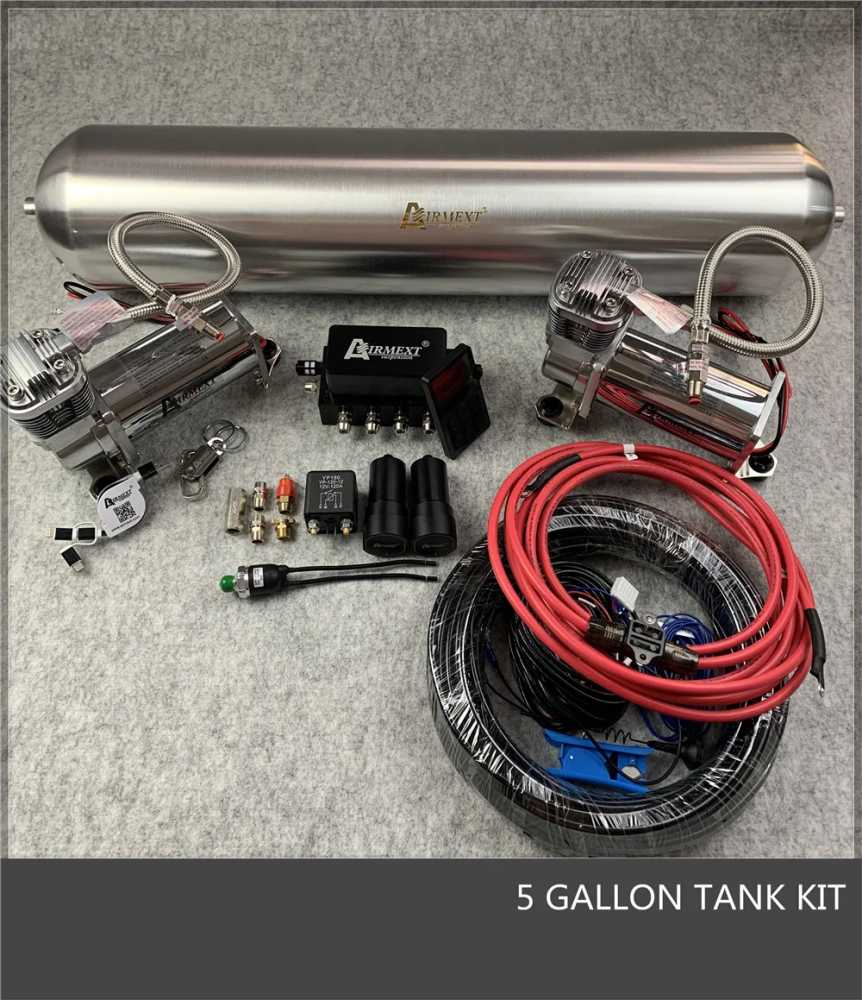

DUAL PUMP KIT C-------

(1) 5 Gallon air tank (seamless air tank) *1 piece

(2) Silent air pump (SN420)*2 pcs

(3) (T series)AIRMEXT air strut kit (including camber plate): 1 set

(4) AIRMEXT air management (SN X5): 1 set

PARTS including:

*Integrated ECU& Valve Group Unit : 1 piece (Electronic Control Unit &Solenoid Valve Manifold Group )
*Relay: 1 piece
*Signal receiver: 1 piece
*Wired / Wireless controller Panel(LED screen) *1 piece

(5) Oil & Water Separator *2 pcs

(6) Sealing press switch(145psi on/175psi off) *1 piece

(7) Connectors *1 set

(8) Air pipe, cables etc. * 1 set

(9) Buyer Manual *1 piece

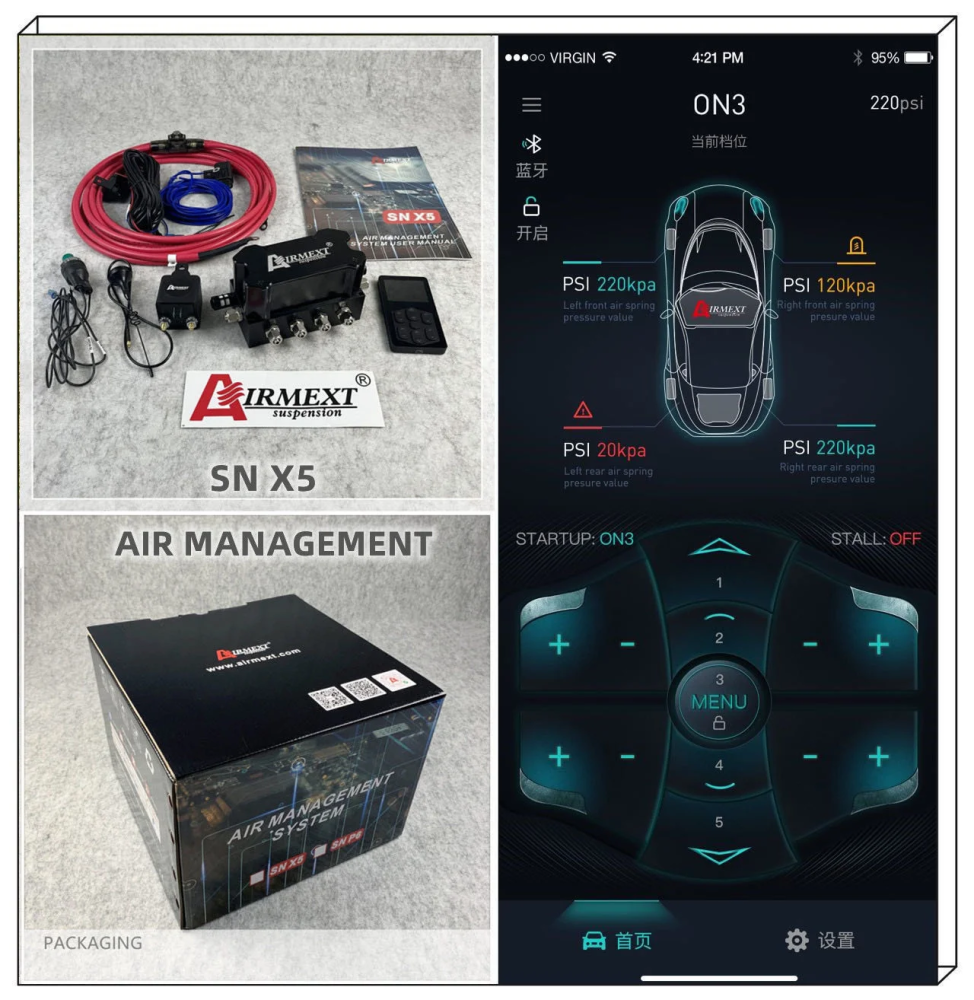

AIR MANAGEMENT SN X5--------------------

NEW APP for SN X5 for APP Store and Google Play

----------------------------------------------------------------------------------------------------------------------------

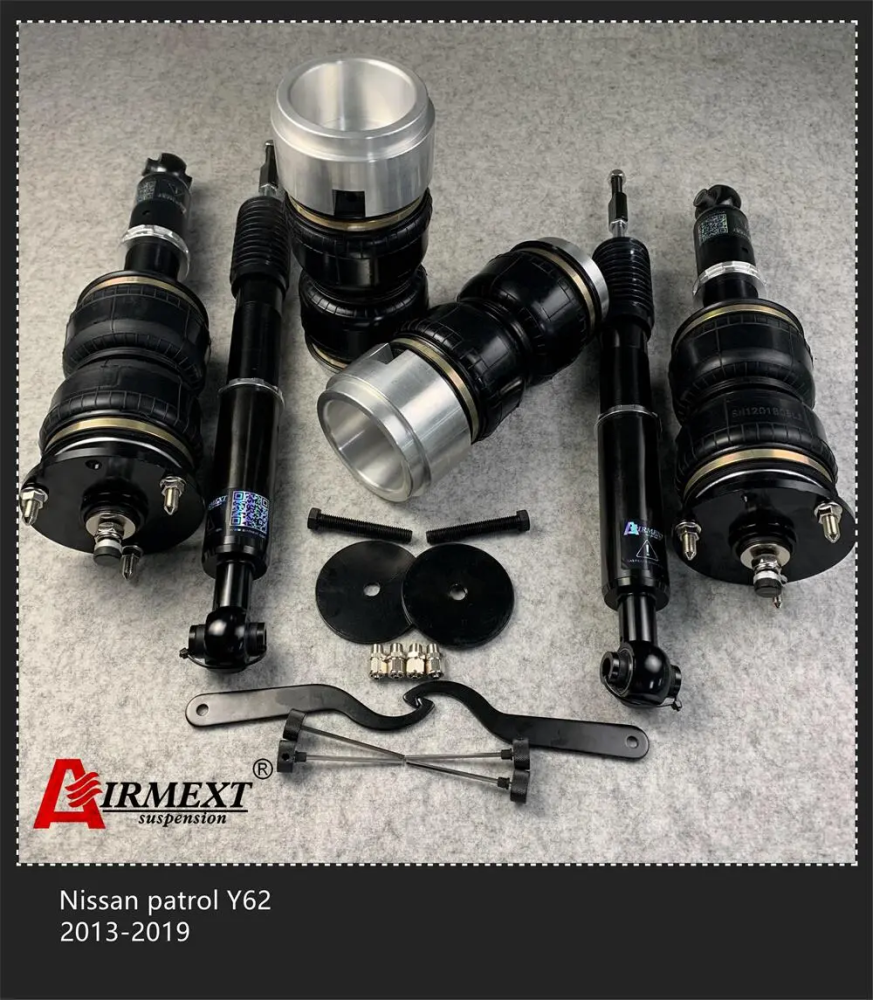

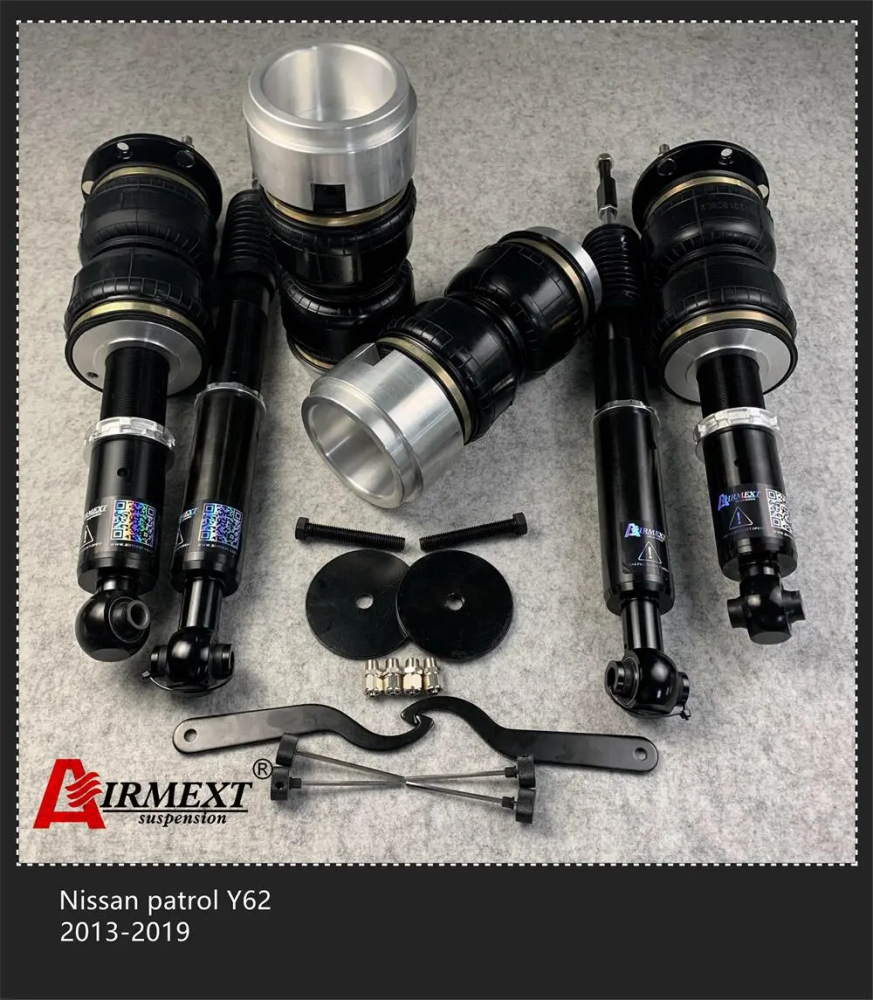

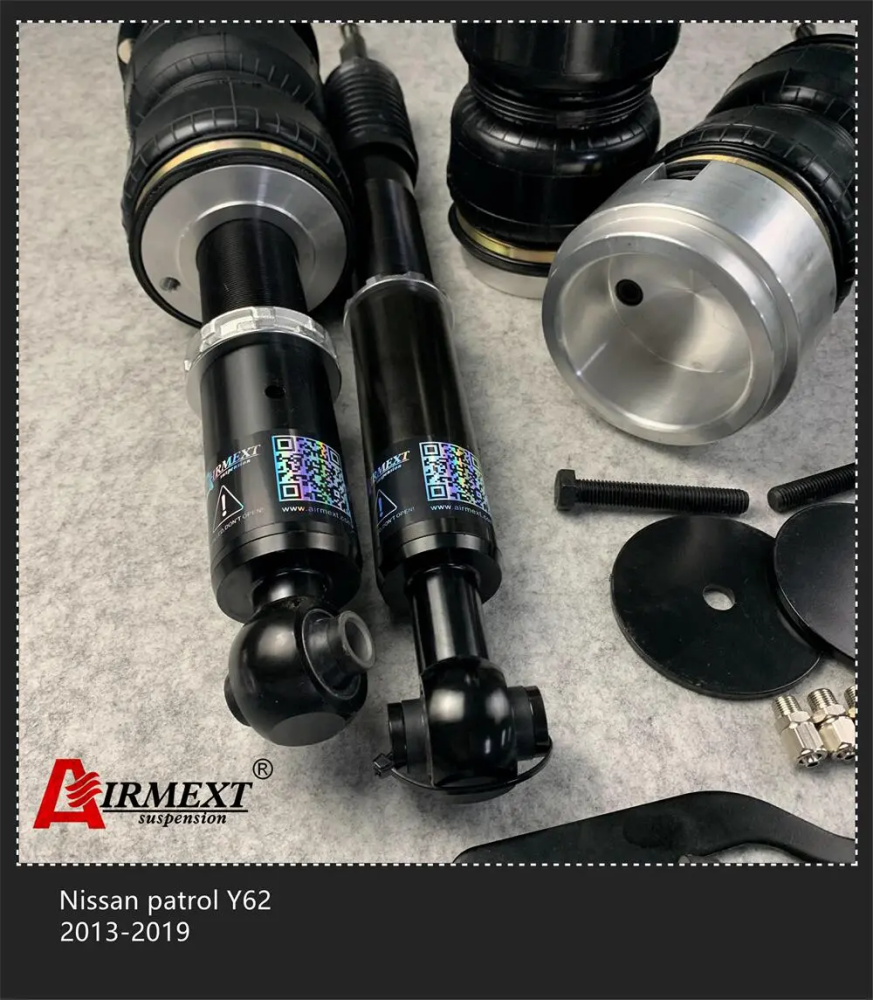

AIR STRUT pack including:

-------4 * AIRMEXT Coilover Shock Absorber (2 Front & 2 Rear)

-------4 * AIRMEXT Rubber Air Spring (2 Front & 2 Rear)

-------2 * Spacers + Bolts

-------4 * 1/8NPT Air Fittings

-------4 * =Dampers

-------2 *Spanners (Wrenches)

-------2 * Sway Bar (Optional If Needed)

-------2 * Pillow Ball Camber Plate (Free)

-------2 * Stainless Steel Braided Air Hose

-------2* Trailing Bar (Optional, Contact Us Before Making Order)

Features:

-----32-level adjustable Damping

which allow you the ability to dial in your air suspension even further. Set damping softer (counterclockwise) or stiffer (clockwise) by simply inserting the included damping knob and turning it either way.

-----Threaded & adjustable shock mounts

Adding further tuning of your ride height at any PSI setting you chose is the ability to have an adjustable mount just like coilover kits. The benefit to this is being able to get the perfect ride height at basically any PSI you are comfortable driving at.

-----125mm drop (front &rear)

Front and rear air strut with 125mm drop (stroke) that lift & lower your car body at random, work with AIRMEXT G5 air management to be 3-level memoried height adjusted.

-----High Pressure Double Bellows Progressive Rate Spring

Engineered and designed to match your vehicle, slim double bellow type bags are available depending on what type of OEM suspension your vehicle has. Air pressure directly corresponds with how stiff or soft your car rides. Higher PSI = stiffer ride. LoweRR PSI = softer ride. Each car is different and it may take some time to dial in your preferred settings.

----High Performance Shock Absorber

Every air strut kit comes with the same quality shocks that are standard in our coilover systems. Air strut shocks have a different internal valving setting to accommodate changes in PSI.

-----12 Month Limited Warranty

Our warranty is 12 months from the original date of purchase which covers manufacturer defects

The main benefit for the system is to adjust the height of chassis by automatically control, rise automatically when driving while lower when car parks, ability of shock absorption can be adjusted at random, significantly improve the comfort.
