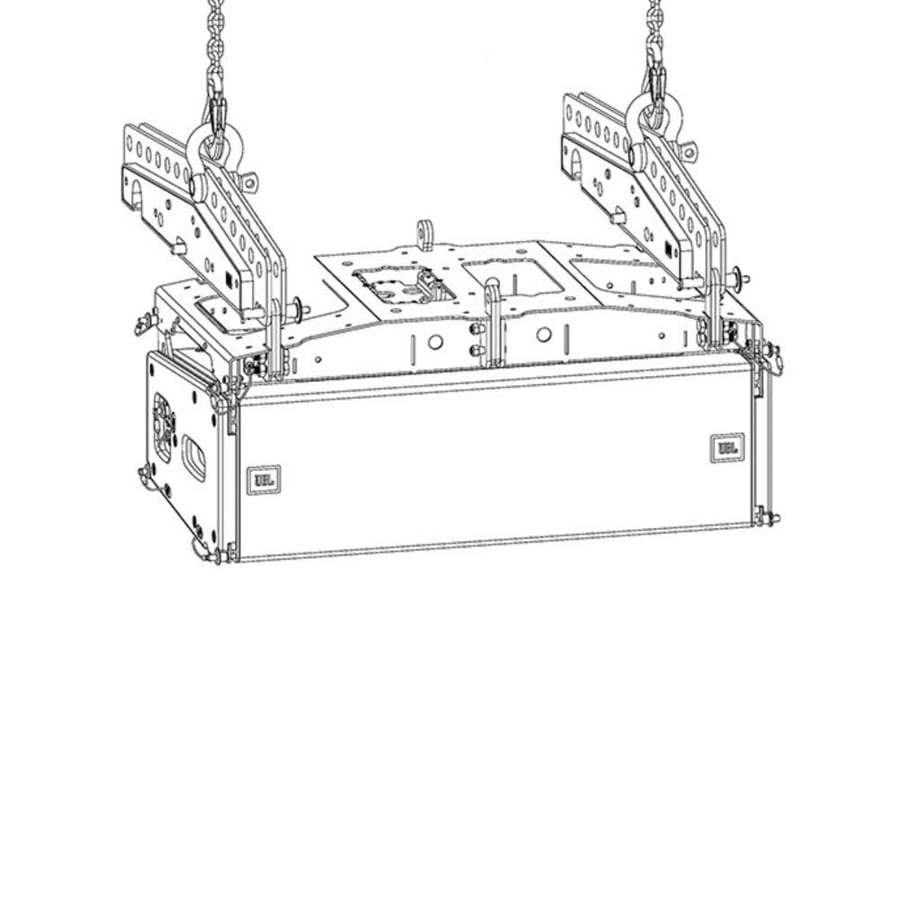

The JBL VTX A8 AF EB extension arm for the VTX A8 suspension frame provides high flexibility in suspension and angle adjustment for Line Array systems.

The JBL VTX A8 AF EB extension arm for the VTX A8 suspension frame provides high flexibility in suspension and angle adjustment for Line Array systems.

• The JBL VTX A8 AF EB extension arm is designed to work with the VTX A8 AF professional suspension frame to provide greater flexibility in JBL VTX A8 and VTX B18 Line Array suspension systems, allowing for the implementation of several professional suspension modes including:
• Single Point
• Front-to-Back
• Side-by-Side
• It gives the user precise control over suspension angles and weight distribution within professional audio systems, making it ideal for large concerts, theaters, stadiums and concert tours.

• It also features a lightweight and robust design with full compatibility with 5/8 inch shackles to provide the highest levels of safety and stability during operation.

Technical description:

• The VTX A8 AF EB headphone extension arm is based on a professional, corrosion-resistant steel frame to provide:
• High flexibility in suspension systems
• Precise control of system angles
• Supports Up-Tilt and Down-Tilt systems
• Side-by-side systems can be implemented

• It contains:
• Multiple anchoring points
• Professional Shackles
• Complete mounting accessories
• Easy to store and transport design

• The arm can also be installed in several locations within the frame to control the suspension center and system angles with high precision of up to 0.5 degrees.

Technical specifications:

• Brand: JBL Professional

• Model: VTX A8 AF EB

• Type: Extension Bar / Professional Extension Arm

• Compatibility:
• JBL VTX A8 AF
• JBL VTX A8
• JBL VTX B18

• Suspension systems:
• Single Point
• Front-to-Back
• Side-by-Side

• Adjustment accuracy:
• 0.5 degree Pick-Point Resolution

• Materials:
• High-quality, corrosion-resistant steel
• Black Powder Coat

• Shape size:
• 5/8 inch

• Endurance:
• maximum:
• 24 VTX A8 headphones
• 13 Subwoofer VTX B18
• Safe limit:
• 22 VTX A8 headphones
• 10 Subwoofer VTX B18

• Dimensions:
• Height: 138 mm
• Width: 734 mm
• Depth: 26 mm

• Net weight: 7.5 kg

• Package contents:
• 1 Extension Bar
• Three 5/8 inch shackles
• 4 Extension Bar Attachment Brackets
• Complete set of screws for installation

Key features:

• Professional extension arm for VTX A8 systems
• Compatible with VTX B18
• Supports multiple suspension modes
• High adjustment accuracy 0.5°
• Strong and lightweight design
• Supports Up-Tilt and Down-Tilt systems
• Corrosion-resistant materials
• Professional manufacturing quality from JBL

Product summary:

• The JBL Professional Headphone Extension Arm for VTX A8 and VTX B18 systems provides high flexibility in suspending and adjusting the angles of professional Line Array systems.

Additional features:

• Side-by-side suspension support
• Provides a balanced weight distribution
• Suitable for parties and concert tours
• Easy to install and remove
• Practical design for transport and storage
• Suitable for large-scale audio projects

Applications used for the product:

• Major concerts:
• Suspending VTX A8 systems at precise angles.
• Stadiums and open spaces:
• Improving sound distribution within large spaces.
• Theaters and large halls:
• Professional control of the sound system's angles.
• World tours:
• Quick and secure installation of suspension systems.
• Professional audio projects:
• Support for high-performance Line Array systems.

Summary and final advice:

• If you use JBL VTX A8 or VTX B18 systems for large parties and professional audio projects, a headphone extension arm is recommended. The VTX A8 AF EB is an important addition that gives you greater flexibility in suspension systems and precise control of Line Array angles. It provides multiple suspension options with the ability to implement Side-by-Side systems and easily adjust Up-Tilt and Down-Tilt angles. Its robust design and light weight make it an ideal choice for technical tours and stationary projects that require reliable, safe, and high-performance professional suspension solutions.

• Detailed product data (Data Sheet).
