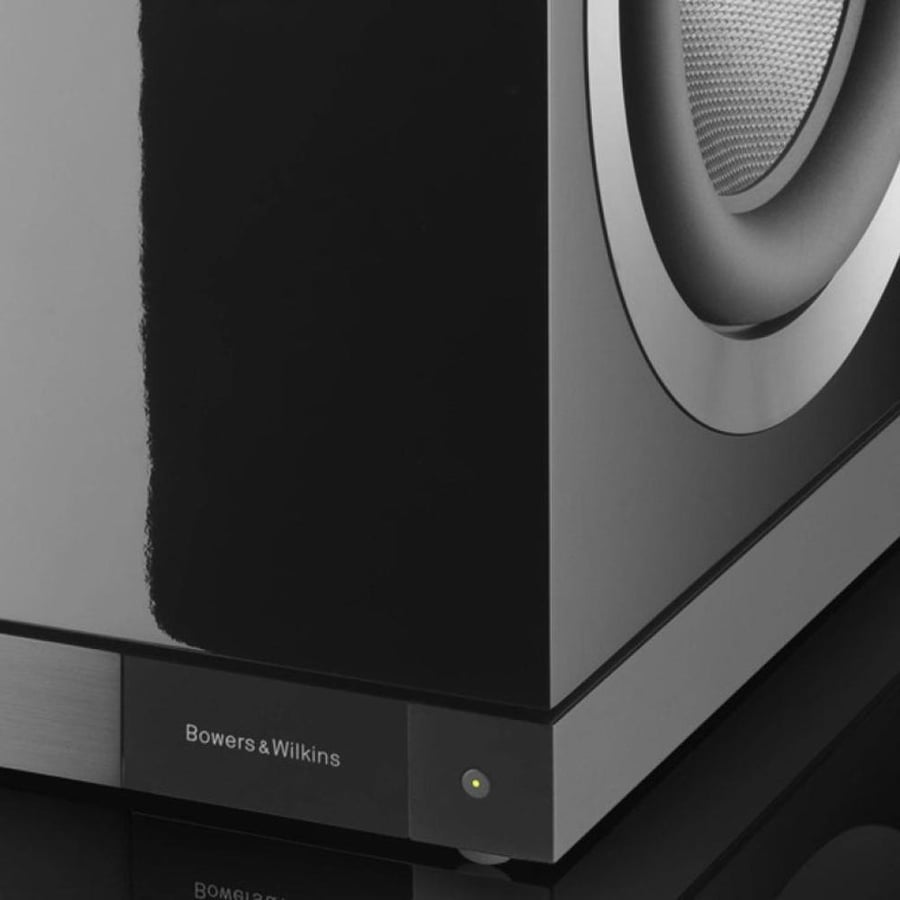

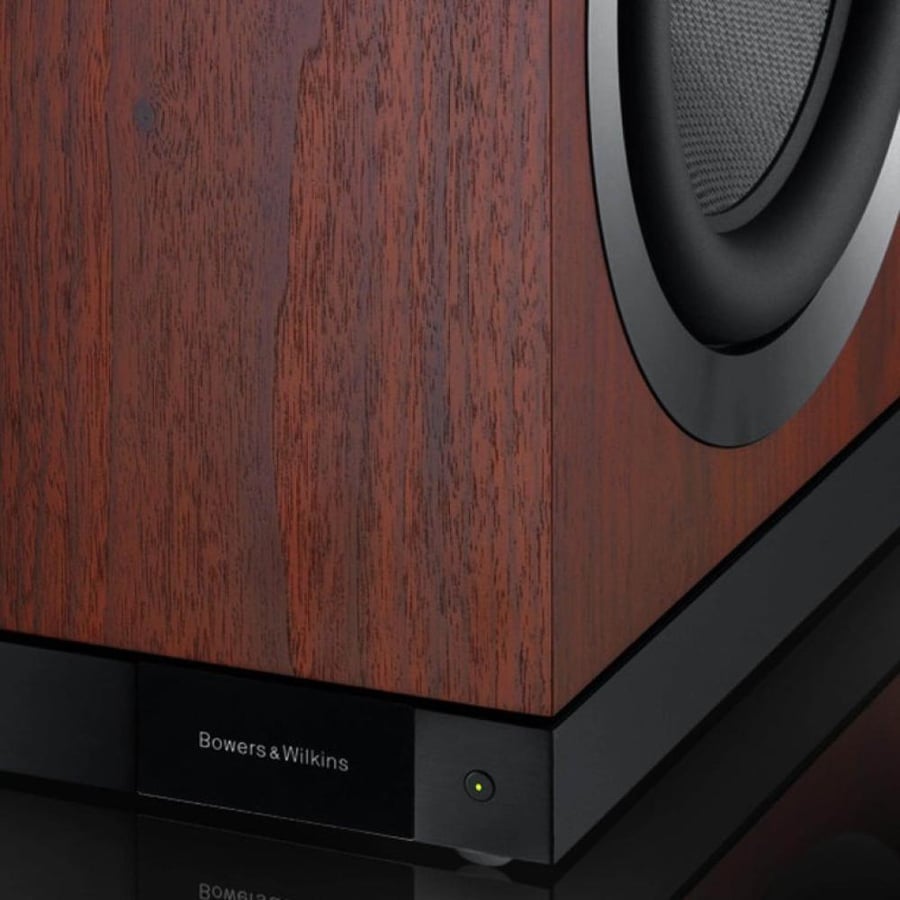

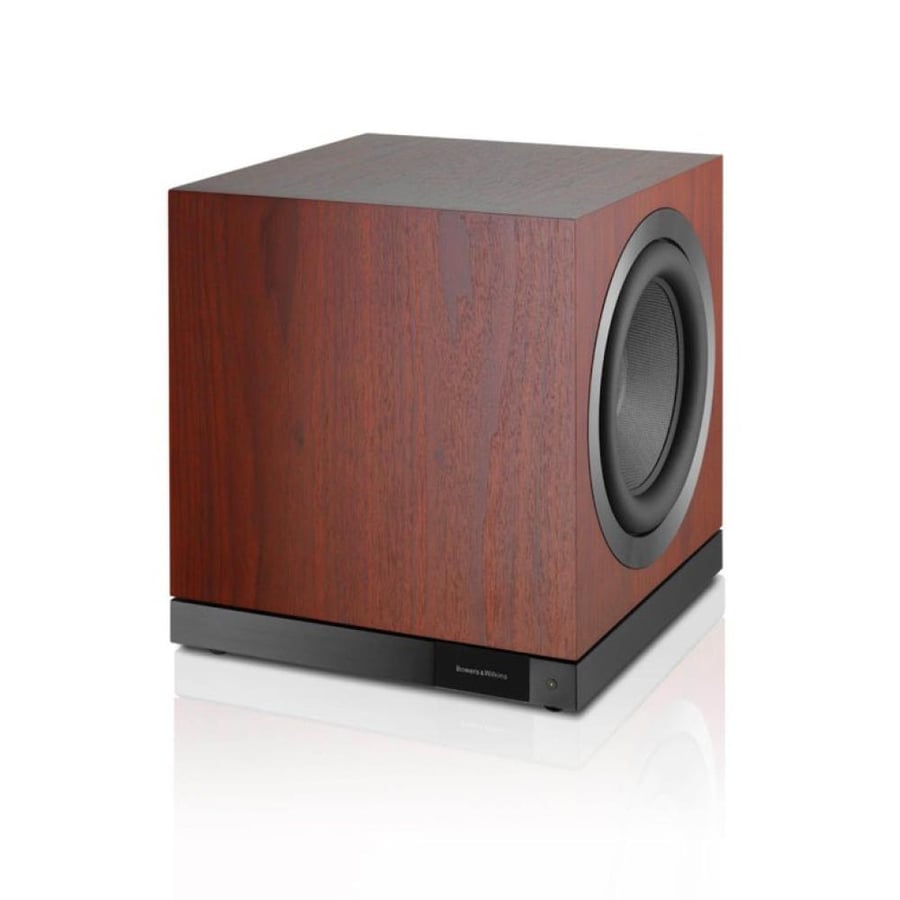

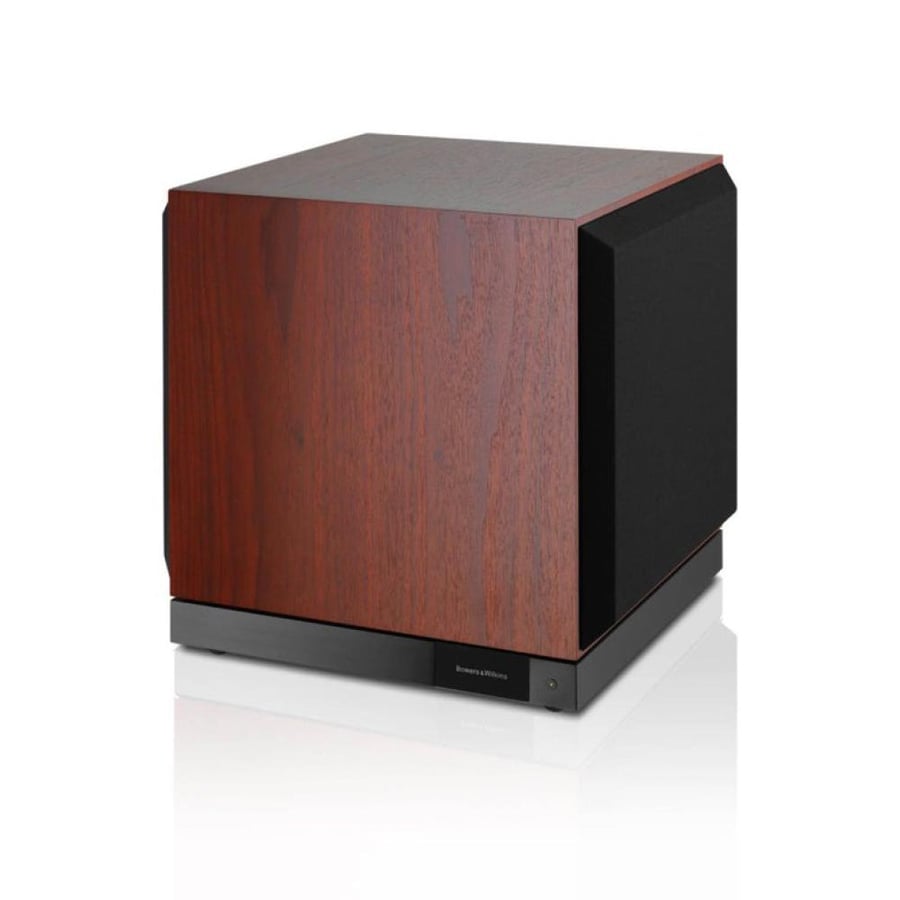

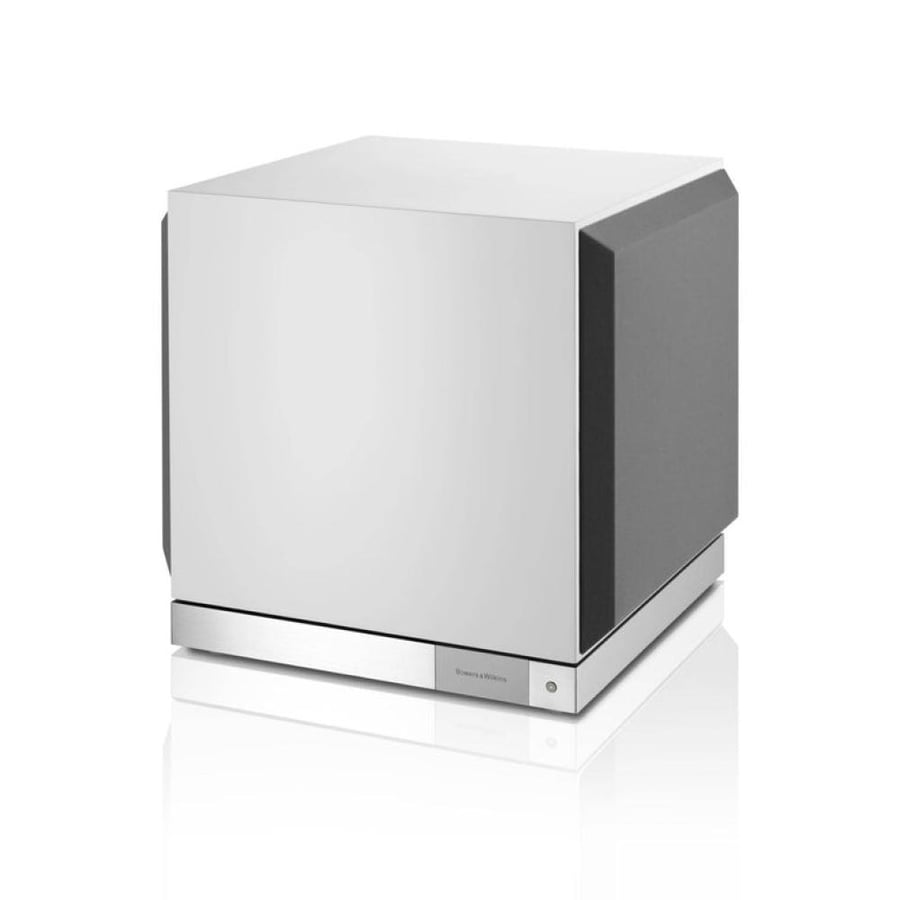

DB1D

Combining 2000 watts of digital amplification with twin balanced Aerofoil™ drivers for incredible low-end power and speed, DB1D is the best Bowers & Wilkins subwoofer.

Diamond bass

Powerful amplification and ultra-fast AerofoilTM drivers: a perfect partner for the acclaimed 800 Series Diamond speakers.

Designed to deliver

DB1D's ultra-rigid, highly damped enclosure channels all its energy into explosive, tightly-controlled bass.

A smarter approach to bass

DB1D's 2000 Watt amplifier and 12-in drivers are controlled by intelligent processing for best-in-class bass delivery.

Nimble and powerful

Solid, dramatic bass is delivered through the rigidity and lightness of the uniquely-shaped, variable thickness Aerofoil™ cone.

A question of balance

The back-to-back (opposed) drivers cancel out cabinet resonances, ensuring all that power is used to create room-shaking bass, not wasted vibrations.

The digital advantage

Digital amplification is cool-running and energy efficient, even when working hard, while Dynamic EQ and Room EQ ensure a precise sound for music and movies.

Take control

By placing control in the palm of your hand, B&w's subwoofer app not only makes their DB Series subwoofers a snap to set up, it also helps maximise your sound quality

SPECIFICATIONS

Dimensions

•  Height: 460mm (18.1 in)
•  Width: 429mm (16.9 in)
•  Depth: 410mm (16.1 in)

Net weight

43kg

Technical features

•  2000w Class D Hypex amplifier
•  2 x 300mm (12 in) Aerofoil-cone drive units in a balanced configuration
•  Digital preamplifier with Dynamic EQ
•  App-based set-up and BT-LE control

Description

DB Series Subwoofer

Drive units

2 x 300mm (12 in) Aerofoil-cone drive units in a balanced configuration

Frequency range

-6dB at 8.5Hz - 500Hz

Frequency response

10Hz - 350 Hz -3dB (centered on level at 100Hz)

Max Power output

2000W

Inputs

•  2 x XLR
•  2 x RCA
•  2 x 3.5mm 12V trigger
•  RS-232 - 9-pin D connector

Cabinet finishes

•  Gloss Black
•  Satin White
•  Rosenut

Grille finishes

•  Black
•  Grey
•  Black
