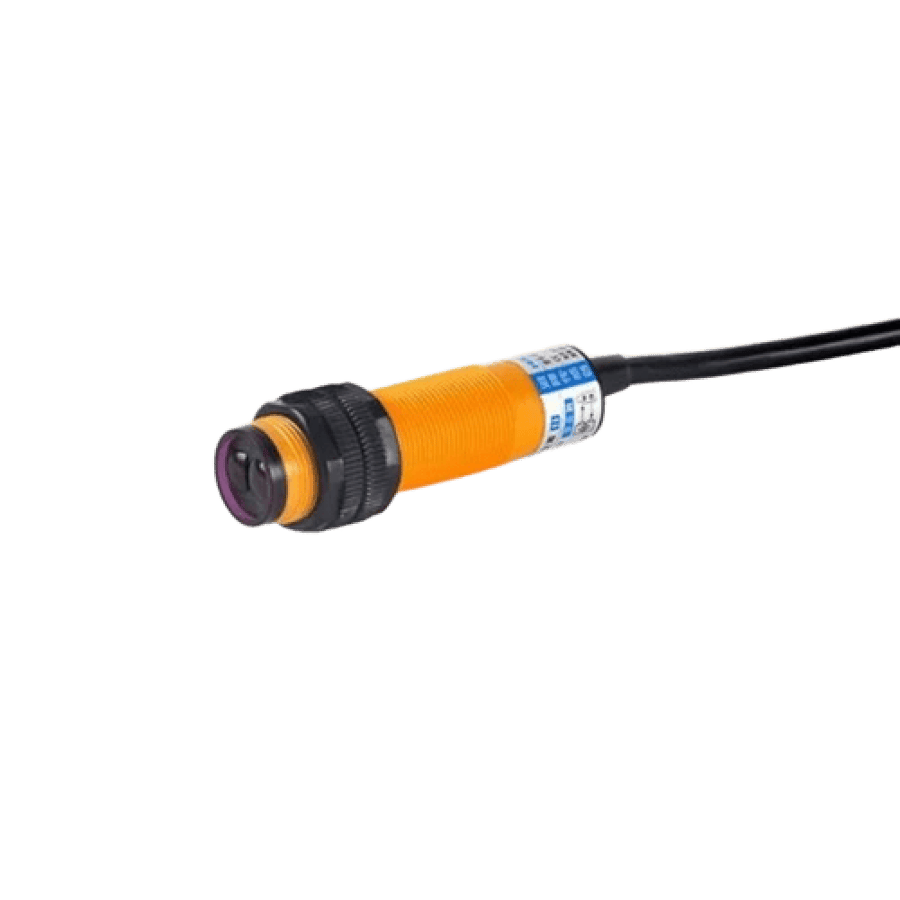

Infrared sensor key E18-D80NK 5V

E18-D80NK adjustable infrared sensor switch 3-80 cm for E18-D80NK infrared sensor switch adjustable IR proximity sensor range 3-80 cm consists of a transmitter and receiver set in one photoelectric switch sensor. The detection distance can be adjusted upon request. The sensor has a detection range of 3-80 cm. The adjustable infrared sensor switch is small, easy to use, inexpensive, easy to assemble, and can be widely used in robots for obstacle avoidance, interactive media, industrial assembly lines, and many other occasions. The switch output signal varies according to obstacles. It remains high when no obstacles are present and remains low when obstacles are detected. There is a bright light behind the probe to detect a range of 3 cm – 80 cm. Electrical characteristics: current: 100 milliamps size: diameter: 17 millimeters sensor length: 45 millimeters lead length: 45 millimeters applications: automatic goods counting device production line maze robots kitchen automation system anti-theft security system, etc. photoelectric sensors (photoelectric switch) NPN normally open model: E18-D80NK. technical parameters of the E18 photoelectric switch: control output DC / SCR / relay current output: 100mA / 5V power supply current consumption DC <25mA response time <2ms point angle: ≤15 degrees, effective adjustable distance 3-80 cm object detection: transparent or opaque operating environment temperature: -25°C to +55°C standard sensing object: sunlight less than 10000LX and flash light 3000LX below structure material: plastic
