M.2-THREE M.2 2280 SSD Heatsink with 6010 Fan Aluminum Heatsink PCIe4.0/5.0 Radiator Heatsink Cooling Thermal Pad for PC

M.2-THREE M.2 2280 SSD Heatsink with 6010 Fan Solid State Drive Radiator PCIe4.0/5.0 Hard Disk Heat Sink Cooling Thermal Pad for Desktop PC
Feature:
1.Versatile Mounting Options: Ensure compatibility and easy installation with the M.2 2280 SSD heatsink, offering versatile mounting that fits seamlessly into your system. This design accommodates various motherboard layouts, preventing clashes with other internal hardware, for a streamlined setup process.
2.Nickel-Plated Heatpipes & CNC-Machined Contact Surface: Engineered for durability and optimal contact, our aluminum heatsink features third-generation copper heatpipes with a resistance-boosting nickel plating and a CNC-machined surface for a flawlessly flat and precise interface with your SSD.
3.Efficient Tower Cooling Design: The tower architecture of our solid state drive radiator ensures efficient heat transfer from the SSD, utilizing premium thermal paste and aluminum for rapid heat conveyance. The design actively moves heat via the pipes and fans, swiftly expelling it for consistent SSD cooling.
4.Dual High-Quality Thermal Paste: Enhance and protect your SSD's functionality with our SSD radiator. It comes bundled with not one, but two applications of high-grade thermal paste to ensure quick heat transfer and maintain your drive's reliable and peak performance.
5.Note: Maximizing SSD performance while ensuring its protection, please note that the offered product exclusively serves as an SSD cooler and does not include the actual solid-state drive. Buy confidently, knowing you're investing in dedicated cooling enhancement.






Specification:
Model: M.2-Three
Color: black
Cooling method: active cooling
Rated voltage: DC12V
Rated current: 0.08A
Input power: 0.96W
Fan speed: 3000RPM
Maximum air volume: 14CFM
Maximum wind pressure: 1.33mmH2O
Noise level: 25.4dBA(MAX)
Application: 2280 solid state drive

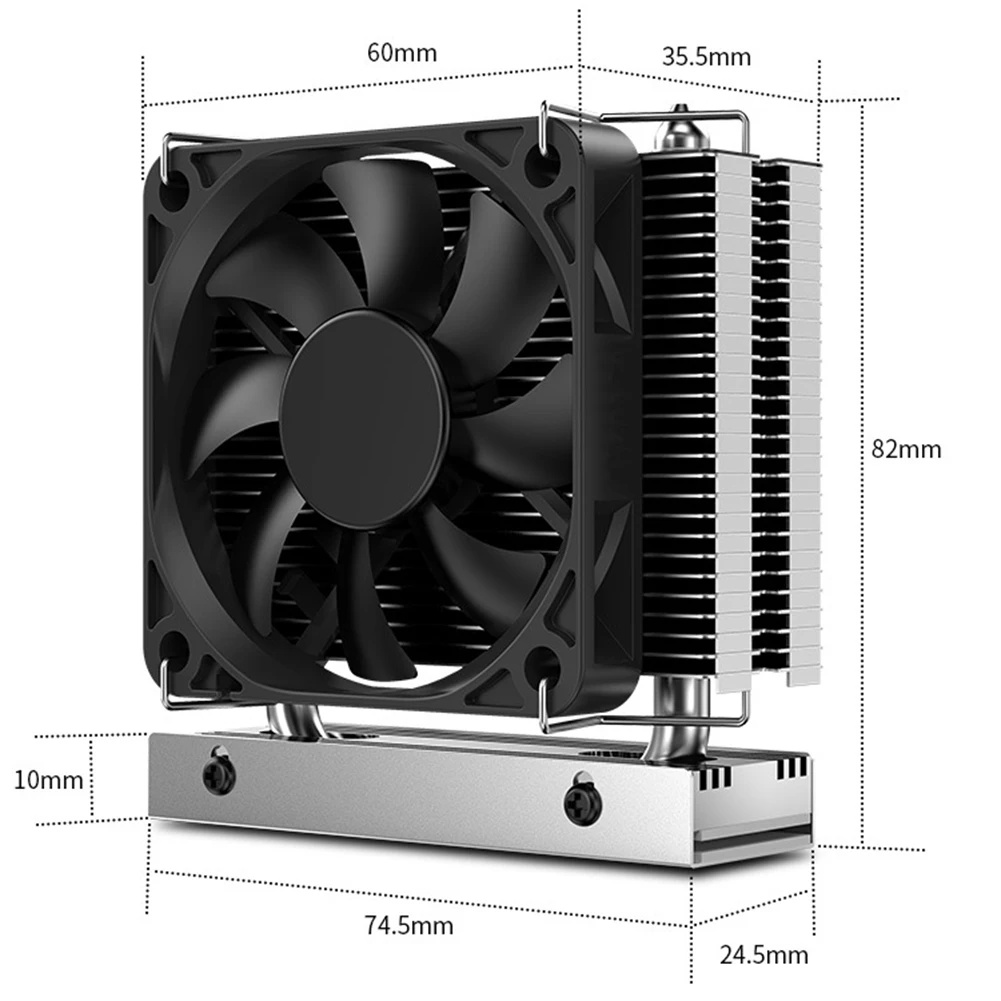

Size: 74.5*24.5(35.5)*82mm
Net weight: 113g

Description:
The overall size of the M.2-Three is 74.5 x 35.5 x 82 mm, and the volume is not large. It is equipped with a 6610 fan provided by Nine Sharks and has a net weight of 113g.
M.2-Three provides three installation methods, one is passive cooling without fan, the width will be reduced to 24.5mm, the other two are active cooling with fan installed, you can choose one of the two sides of the single tower.
M.2-Three adopts the third-generation nickel-plated heat pipe, CNC contact surface and through-fin process, and uses a stainless steel bracket to fix it.
The heat of M.2 SSD is transferred to the heat pipe through thermal paste and aluminum block, and then dispersed to 27 through the heat pipe.
The fins are then quickly exhausted by the fan to ensure the stable operation of the M.2 SSD. The 6010 fan paired with the M.2-Three is 60mm in size, with a rotational speed of 3000±10% RPM, a maximum air volume of 14 CFM, a maximum air pressure of 1.33 mmH2O, and a noise of 25.4 dBA.

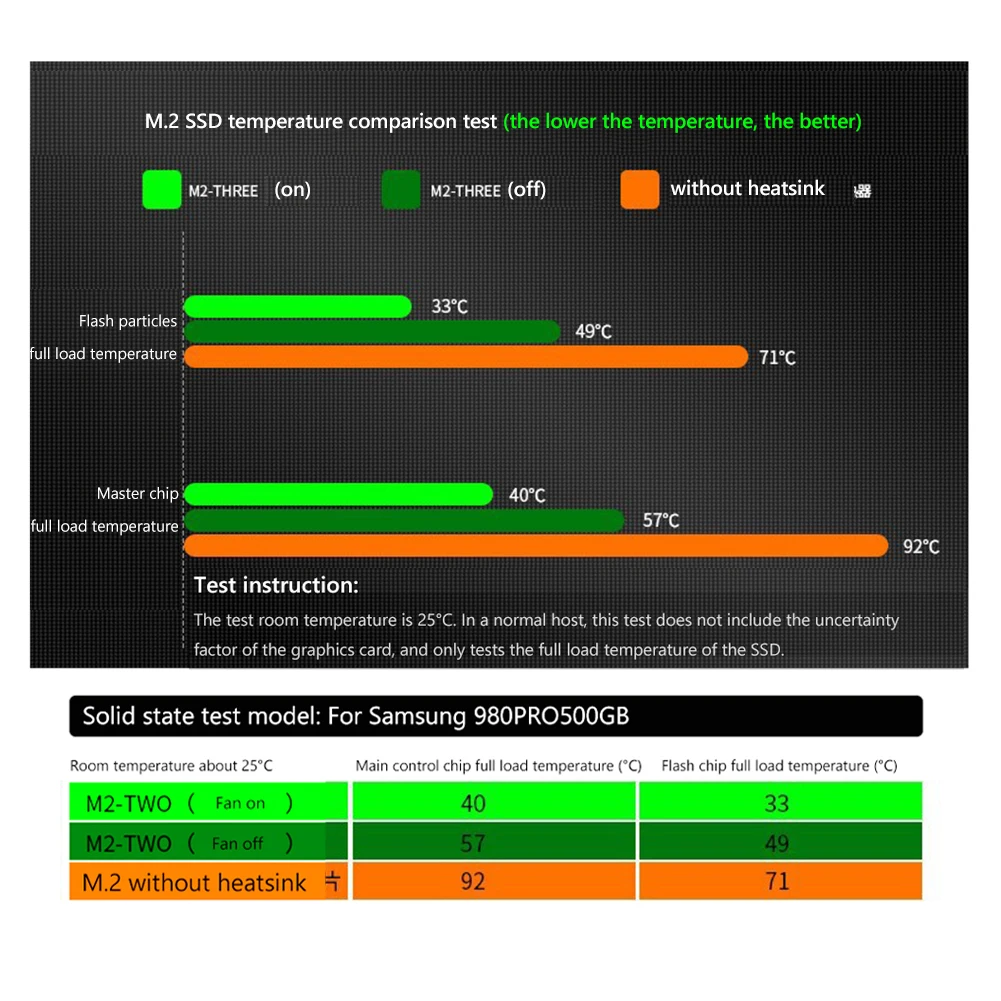

According to the test data provided by the experiment, when combined with Samsung 980 Pro, the cooling effect is obvious.
M.2-Three is an air-cooled heatsink specially designed for PCIe 4.0/5.0 M.2 2280 SSD

Installation method:
1. Bare radiator installation. Minimize space occupation, suitable for environments with insufficient space, and the heat dissipation performance of the heat pipe is still strong;
2. Radiator + 6010 fan. Large space occupation, suitable for environments with sufficient internal space, installed on the side that does not interfere with other hardware

Note:
This product does not contain a solid state drive, just for the product effect
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.

1 x Heatsink
