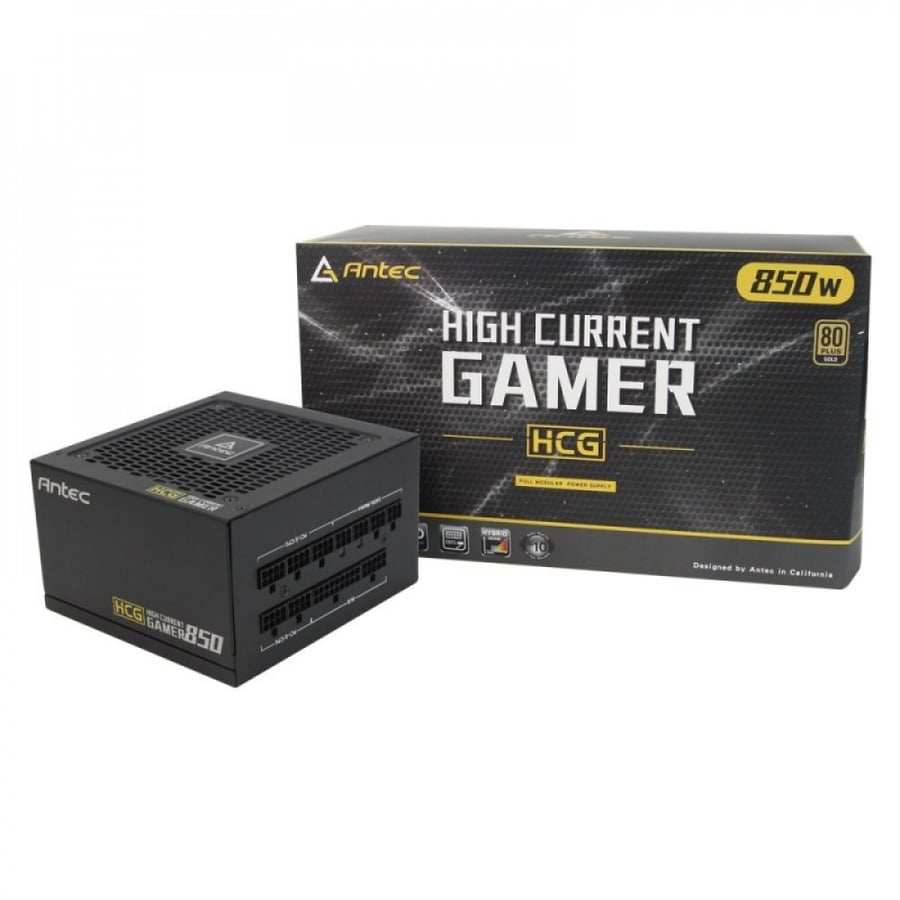

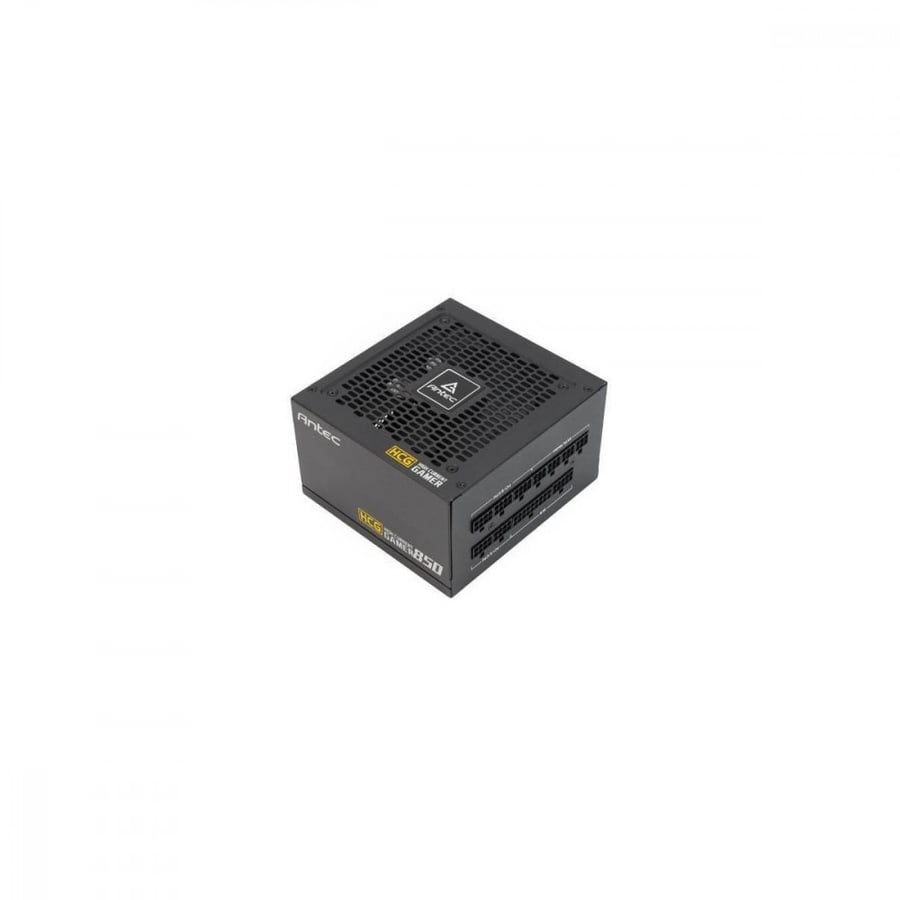

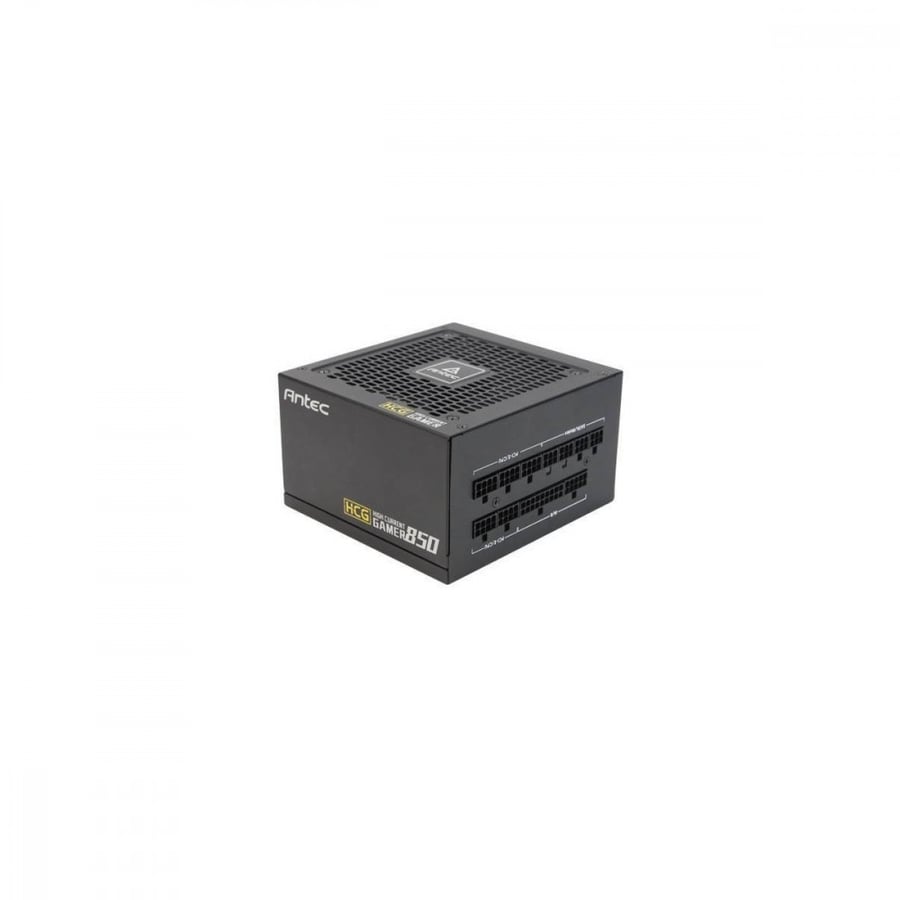

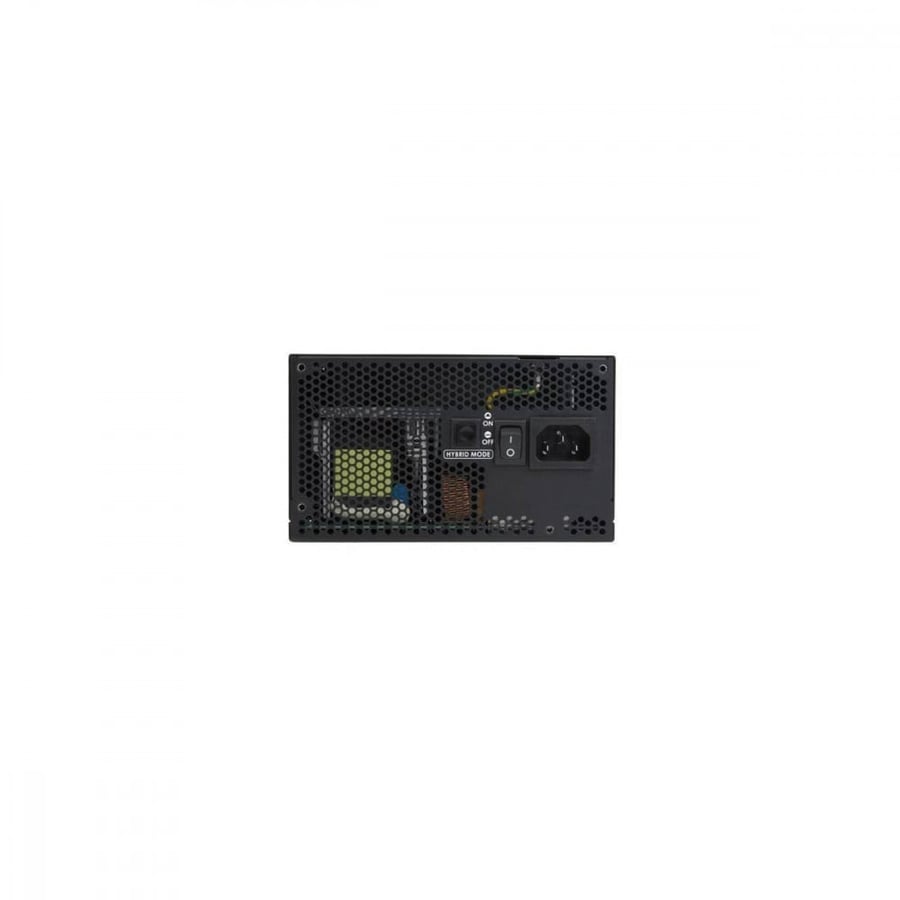

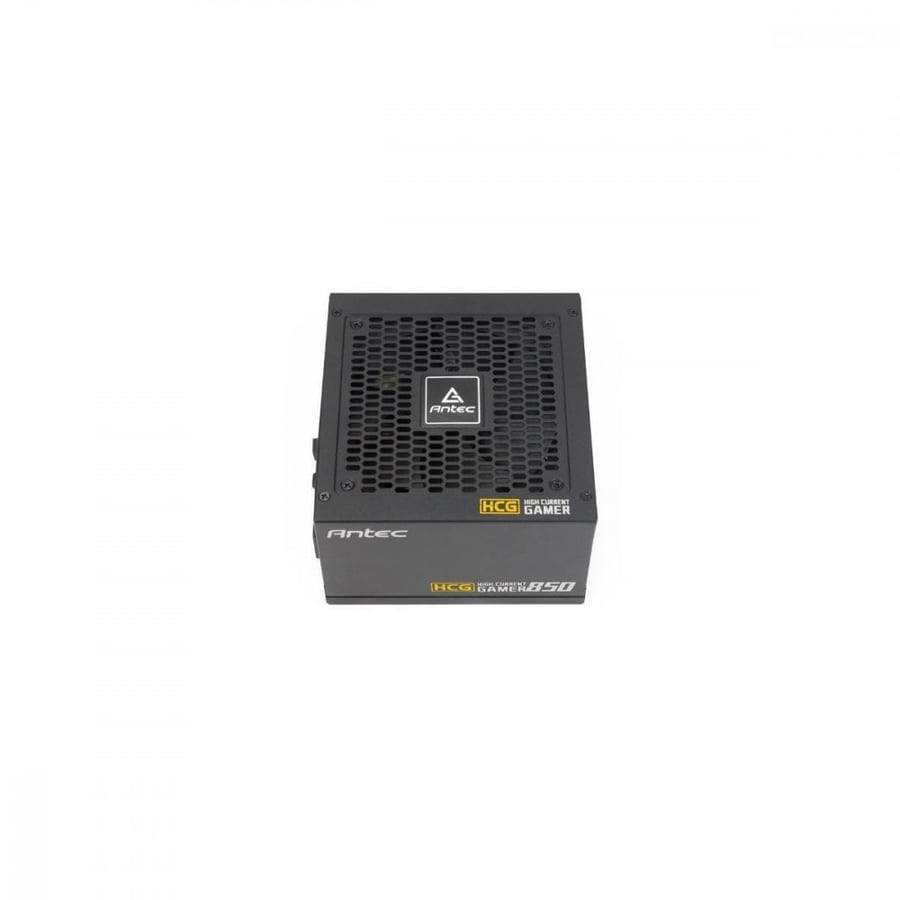

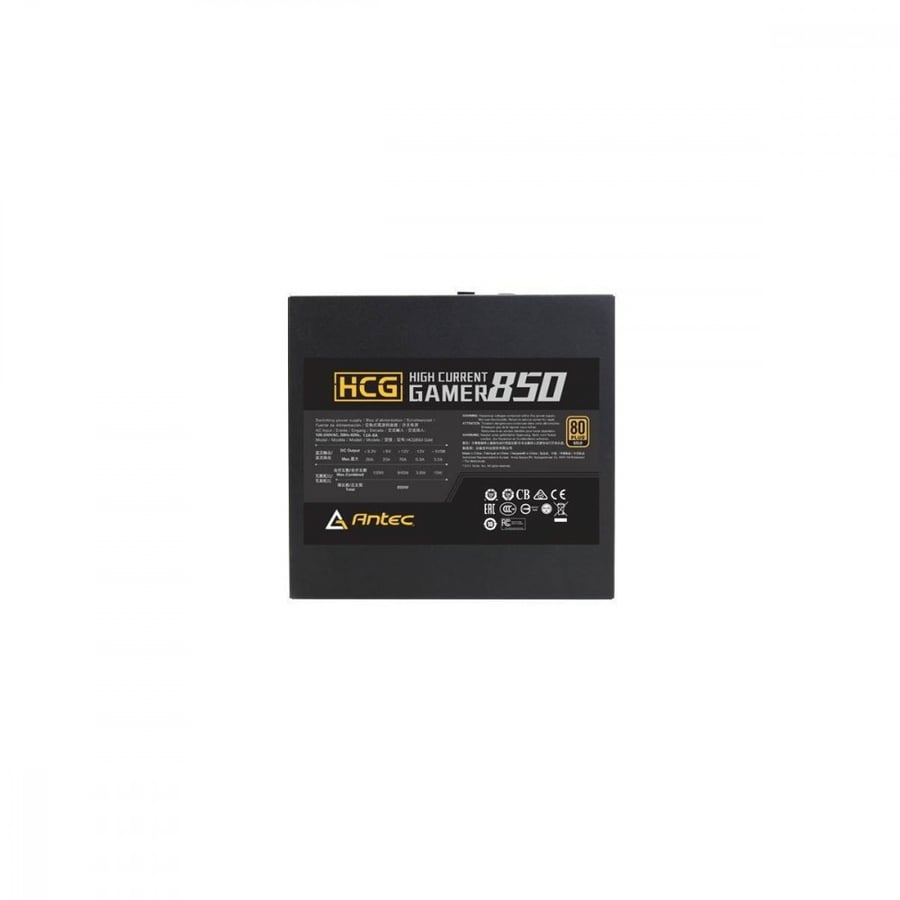

Antec HCG850 Gold alimentator per computer 850 W 24-pin ATX ATX Nero

power circuit

Total Power 850W

AC input voltage 100 - 240

Volt AC Input Frequency 50-60Hz

Input current 6-12 working class 0.9 PFC type active Combined power (+3.3V) 100W Combined power (+12V) 840W Combined power (+5V) 100 Combined power (-12V) 3.6 Combined power (+5Vsb) Max Output Current (+3.3V) 20 Maximum Output Current (+12V) 70 Maximum Output Current (+5V) 20 Maximum Output Current (-12V) 0.3 Maximum Output Current (+5Vsb) 3 Efficiency Ninety-two% Protection Feature Power Overcurrent, overpowered, overloaded, overloaded, short circuited, at maximum current, at maximum power, under load Contact Motherboard connector 24 pin ATX Motherboard power cable length 61 cmNumber of SATA 10 connectorsSATA power cable length450.570.690.810mmPeripheral connectors (Molex) (4-pin) 5 Peripheral Power Cable Length (Molex) 350, 450, 470, 570, 690 mm EPS Power Connector (8-pin) Yes PCI Express Connectors (6 + 2 Pin) 6 PCI Express Power Cable Length 75 cm CPU Power Connector ( 4 + 4 Pins) Yes CPU Power Cable Length 65 cm ATX Connector (24-PIN) Yes Floppy Drive Power Connector 1 Floppy Disk Connector Yes l Floppy drive cable 10.1 cm PCI Express connector Yes 80 PLUS performance Certification 80 PLUS gold Use Computer / Server PSU form factor ATX version 2.4 Product color design Black Cooling type Active Fan diameter 12 cm Number of fans1 fan(s) On / off switch Yes Environmental conditions Operating temperature range0- 40 ° C Dimensions and weight Width 150 mm Depth 140 mm Height 86 mm Weight 2.46 kg Packaging data Packing weight 3.77 kg
