DM250 Gearbox Drilling Machine 25mm | Drilling & Tapping Machine MT3

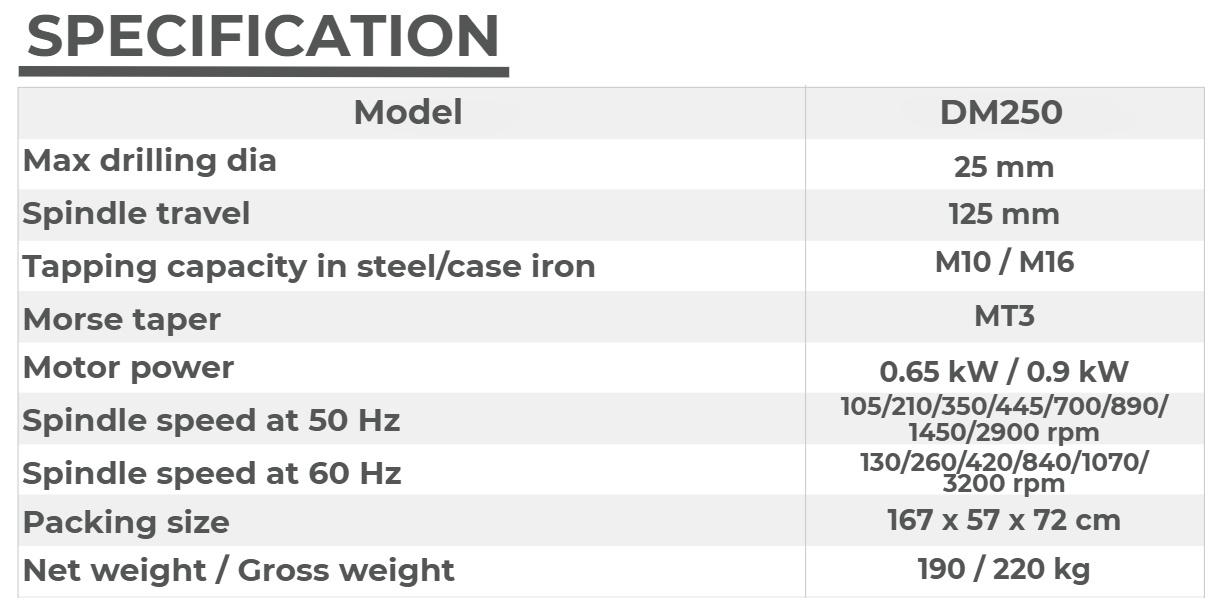

Technical Specs

General

• Model: DM250
• Machine Type: Gearbox Drilling & Tapping Machine
• Max. Drilling Diameter: 25 mm
• Spindle Travel: 125 mm
• Spindle Taper: MT3

Tapping Capacity

• Tapping Capacity in Steel: M10
• Tapping Capacity in Cast Iron: M16

Spindle Speeds

• Spindle Speed at 50Hz: 105 / 210 / 350 / 445 / 700 / 890 / 1450 / 2900 rpm
• Max. Spindle Speed at 60Hz: 3200 rpm

Motor

• Motor Power: 0.65 / 0.9 kW

Dimensions & Weight

• Packing Size: 167 × 57 × 72 cm
• Net Weight: 190 kg
• Gross Weight: 220 kg

Key Features

• Mechanical gearbox spindle drive
• Drilling and tapping functions
• Maximum drilling capacity of 25 mm
• MT3 spindle taper
• 125 mm spindle travel
• Two-speed 0.65 / 0.9 kW motor
• Multiple spindle speeds for different materials and drill sizes
• Tapping capacity up to M10 in steel
• Tapping capacity up to M16 in cast iron
• Floor-standing industrial design

Applications

• Metal drilling
• Internal threading / tapping
• Turning and machining workshops
• Maintenance workshops
• Spare parts manufacturing
• Metal fabrication work
• Educational and industrial training use
