SUMORE SP3123 Gearbox Drill 40mm | Heavy-Duty Geared Head Drill

Product Description

The SUMORE SP3123 Heavy-Duty Gearbox Drill is designed for professional drilling, tapping, and workshop machining applications with a maximum drilling capacity of 40 mm.

It features a strong mechanical gearbox, multiple spindle speeds, power spindle feed, internal threading/tapping capability, coolant system, and integrated work light for better visibility during operation.

Available in 220V or 380V 3-phase configurations, the SP3123 is a practical industrial drilling solution for metal workshops, maintenance centers, and manufacturing facilities.

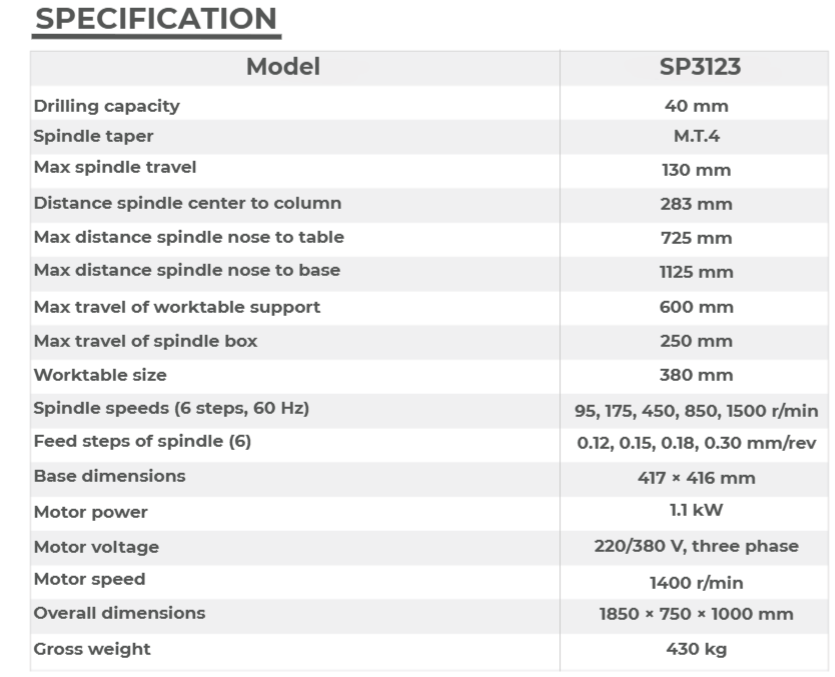

Technical Specs

General

• Brand: SUMORE
• Model: SP3123
• Machine Type: Heavy-Duty Gearbox Drill
• Max. Drilling Capacity: 40 mm
• Spindle Taper: MT4

Working Range

• Max. Spindle Travel: 130 mm
• Spindle Center to Column: 283 mm
• Max. Spindle Nose to Table: 725 mm
• Max. Spindle Nose to Base: 1125 mm
• Max. Worktable Support Travel: 600 mm
• Max. Spindle Box Travel: 250 mm
• Worktable Size: 380 mm

Spindle

• Spindle Speeds: 95 / 175 / 450 / 850 / 1500 rpm
• Spindle Feed: 0.12 / 0.15 / 0.18 / 0.30 mm/rev

Motor & Electrical

• Main Motor Power: 1.1 kW
• Motor Speed: 1400 rpm
• Voltage Options: 220V / 380V – 3 Phase

Dimensions & Weight

• Base Size: 417 × 416 mm
• Overall Dimensions: 1850 × 750 × 1000 mm
• Gross Weight: 430 kg

Key Features

• Heavy-duty mechanical gearbox
• Drilling capacity up to 40 mm
• MT4 spindle taper
• Multiple mechanical spindle speeds
• Power spindle feed
• Internal threading / tapping capability
• Integrated coolant system
• Integrated work light
• Adjustable worktable
• Available in 220V and 380V 3-phase versions
• Strong industrial design for workshop and factory use

Applications

• Metal drilling
• Internal threading / tapping
• Turning and fabrication workshops
• Spare parts manufacturing
• Equipment maintenance workshops
• General metalworking
• Daily industrial drilling operations
