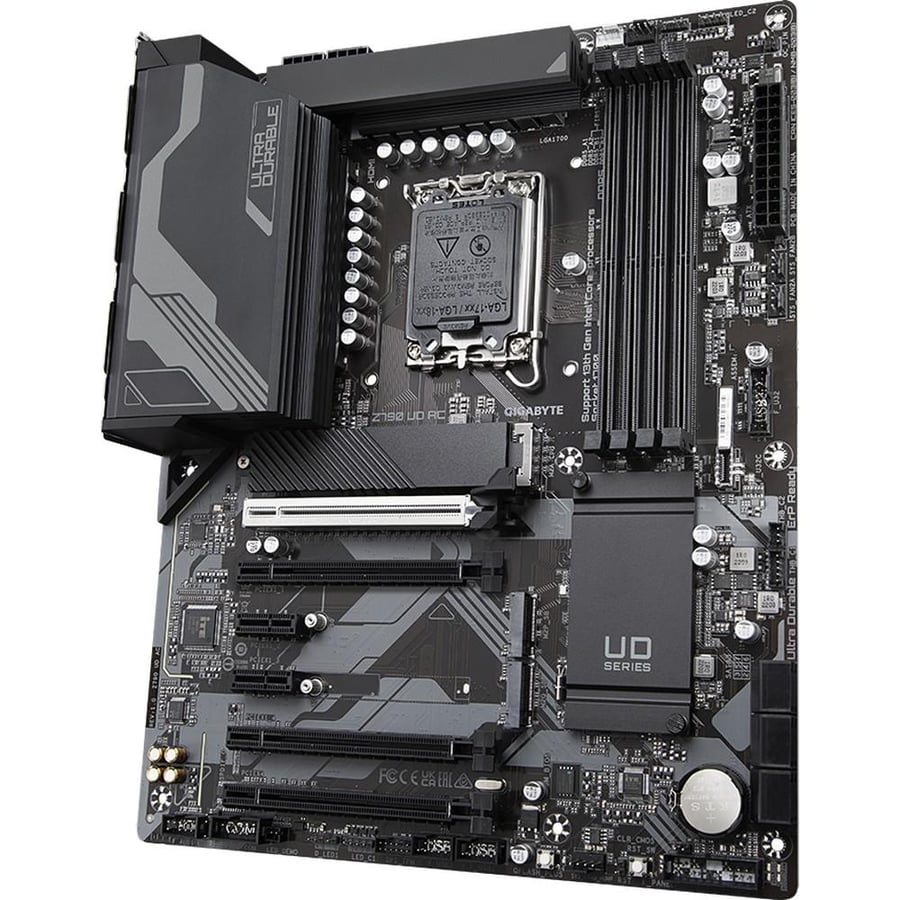

Gigabyte Z790 UD AC LGA1700 Socket For intel CPUs Motherboard

• The GIGABYTE Z790 UD AC is a high-performance ATX motherboard designed for gaming and enthusiast PC builds, supporting Intel 12th, 13th, and 14th Gen processors with high-speed DDR5 memory and PCIe 5.0 graphics support.
• It features a 16+1+1 digital VRM design, advanced thermal solutions, triple PCIe 4.0 M.2 slots, Wi-Fi AC, and 2.5GbE LAN for stable and reliable gaming performance.

Product Features:

Support for Latest Intel Processors:

• Compatible with Intel 12th, 13th, and 14th Gen Core processors.

16+1+1 Digital VRM Design:

• Advanced digital power delivery for stable system performance and overclocking.

High-Speed DDR5 Memory:

• Supports four DDR5 DIMM slots with XMP 3.0 support.

PCIe 5.0 Ready:

• Features a PCIe 5.0 x16 slot with EZ-Latch quick-release design.

Advanced Thermal Design:

• Large heatsinks and M.2 Thermal Guard improve cooling performance.

Fast Networking:

• Integrated Wi-Fi 802.11ac and 2.5GbE LAN connectivity.

Modern Connectivity:

• Rear USB-C 20Gb/s and front USB-C connectivity for modern devices.

Product Details:

CPU :

• LGA1700 socket : Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Chipset :

• Intel Z790 Express Chipset

Memory :

• Support for DDR5
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for Extreme Memory Profile (XMP) memory modules

Audio :

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN :

• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module :

• Realtek® Wi-Fi RTL8821CE
• BLUETOOTH 4.2

Expansion Slots :

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

Chipset:

• 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4)
• 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)
• 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Storage Interface :

CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

• 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
• 6 x SATA 6Gb/s connectors

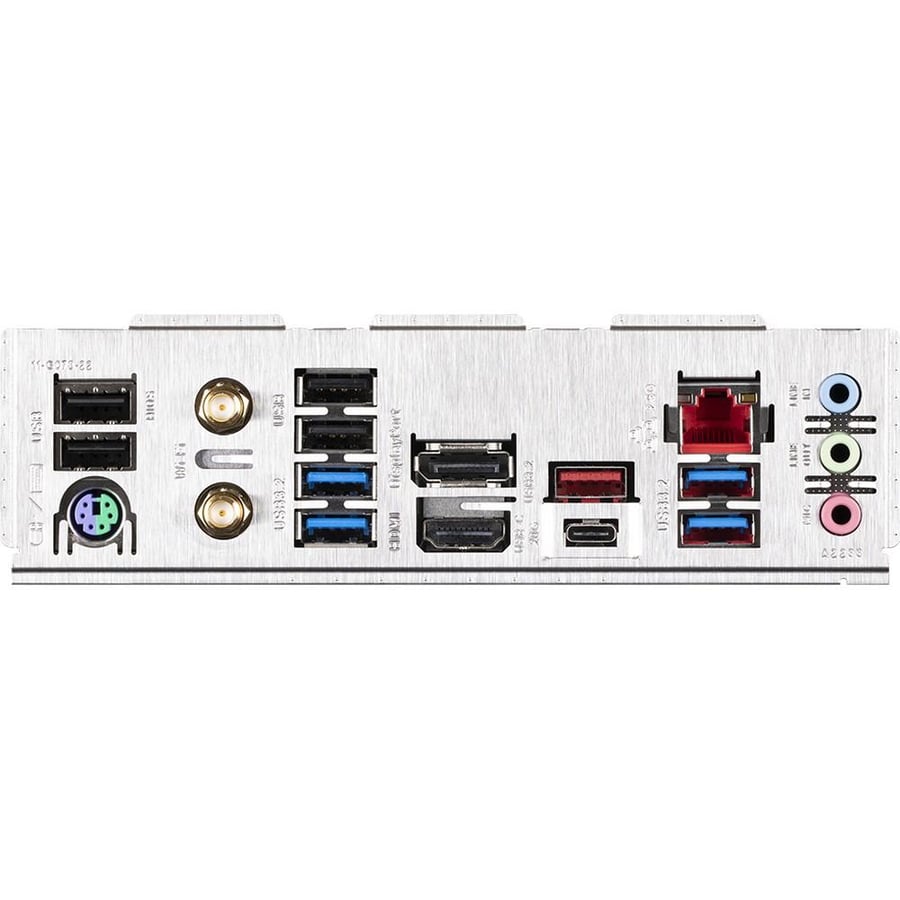

Back Panel Connectors :

• 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (1T1R)
• 1 x HDMI 2.0 port
• 1 x DisplayPort
• 1 x RJ-45 port
• 3 x audio jacks

Form Factor :

• ATX Form Factor; 30.5cm x 24.4cm
