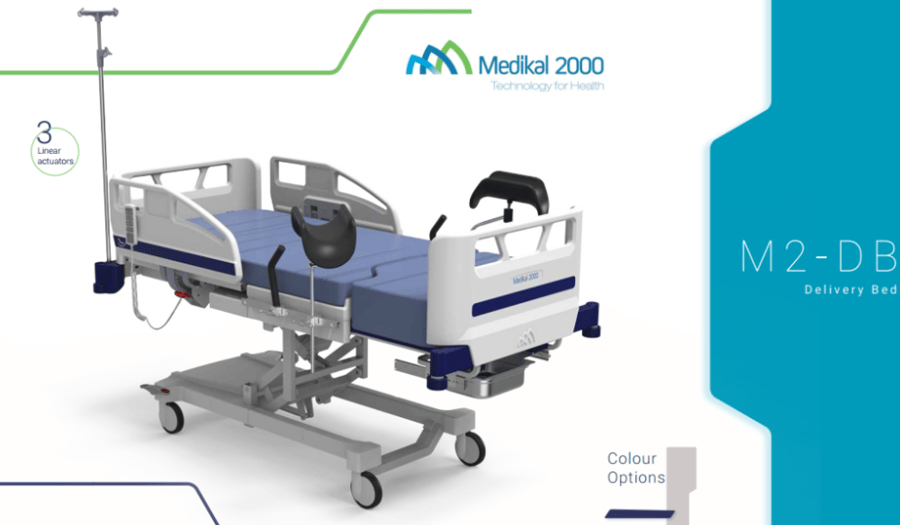

Electric bed for childbirth, model M2-DB, Medikal 2000

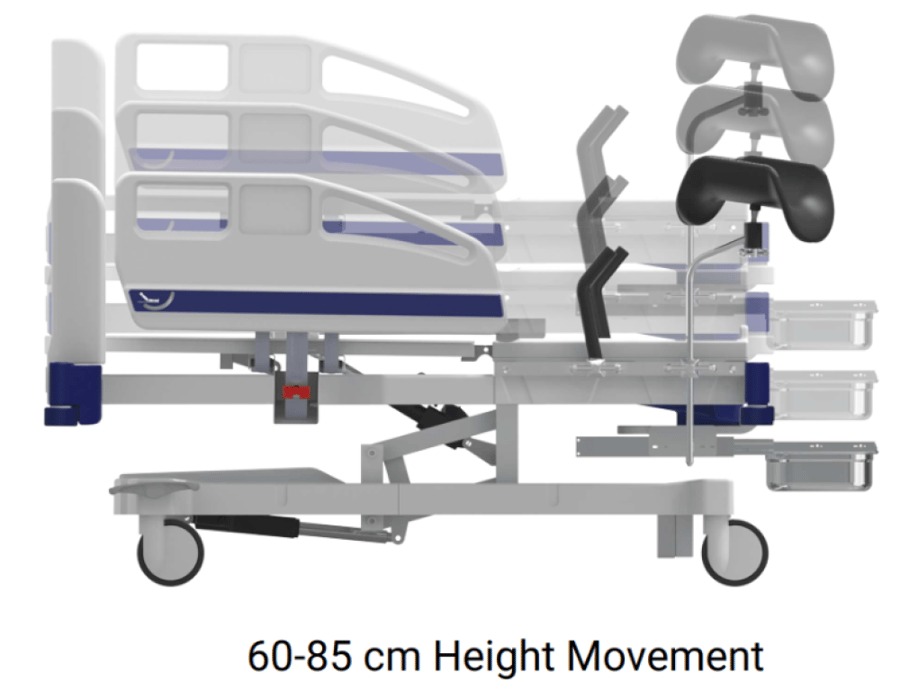

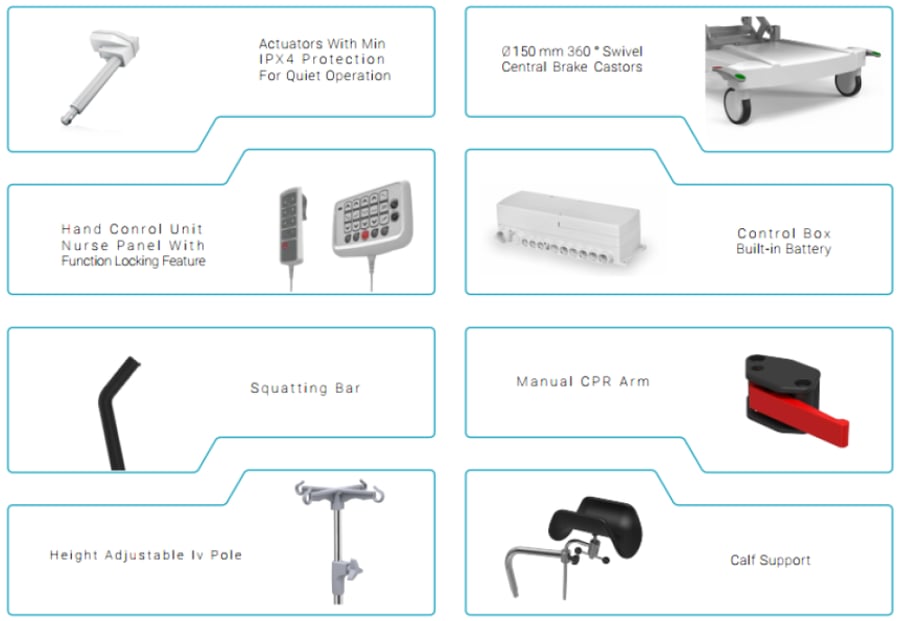

Electric Delivery Bed M2-DB – Medikal 2000 Technical specifications: Model: M2-DB – Delivery Bed (3 motors). Manufacturer: Medikal 2000 – Turkey. Number of motors: 3 quiet linear electric motors, with liquid protection standard. Movement functions: raise and lower bed height. Backrest adjustment. Leg/knee section adjustment. Trendelenburg position (head tilt down to 20°). CPR: mechanical/electronic mechanism for quick response in emergencies. Side rails: made of polypropylene (PP), foldable. Head and foot panels: easily removable. Surface: made of integrated materials with a leather part and ABS foot extension. Wheels: 4 swivel wheels with 150 mm diameter and central locking system. Frame: powder-coated steel with nano ceramic layer, corrosion-resistant. Mattress: high-density foam (density 28) consisting of two parts for mother’s comfort. Dimensions and capacities: Overall width: 103.5 cm. Overall length: 210 cm. Minimum bed height: 58 cm. Maximum bed height: 90 cm. Lying surface (closed): 144 × 85 cm. Lying surface (extended): 193 × 85 cm. Backrest angle: up to 70°. Trendelenburg angle: up to 20°. Safe load: up to 230 kg. Practical features: Easy-to-use manual control unit. Nurse panel with command lock feature. Built-in angle indicators on side bars. Toilet basin with integrated drainage pipe. Adjustable IV stand. Urine bag holder. Additional options: under-bed lighting, delivery strip, file holder, colored head and foot pieces. Specifications of the M2-DB Medical Electric Delivery Bed, Turkish manufacturing: • Three longitudinal motors with at least IPX4 protection for quiet operation. • Nurse panel with lock function plus a standard remote control. • Electronic movement of backrest, footrest, height, and tilt. • Surface made of pressed material. • X-ray feature on the backrest. • 360-degree swivel wheels with central brake system (150 mm). • Side panels made of polypropylene and removable head and foot panels. • Electronic control and manual CPR. • Protective plastic bumpers. • Foldable foot extension. • Urine bag holder. • Accessories slots and connector ports. • Waste container. • Tension panel. • Leg support. • Battery. • Adjustable height IV pole. • Metal parts coated with nano ceramic powder. • Backrest slide. • Side angle indicator. • Lower structure covered with ABS plastic, consisting of two parts: seat extension and foot. • Two-piece mattress with density 28. Brand: 2000 Medikal. To view the catalog, click here.
