JBL Garden Speaker, 60W, Full Range Sound Performance, Stylish and Weather-Resistant Design, Model GSF3

Garden Speaker JBL 60W full-range sound performance in a sleek, weather-resistant design, model GSF3

• The JBL GSF3 is a professional outdoor speaker (Coaxial 3" Full-Range Landscape Loudspeaker) designed to deliver balanced and clear sound in high-end outdoor environments.
• Thanks to its compact design that is water and dust resistant according to the IP66 standard, this speaker offers superior sound quality with high durability, making it ideal for installation in gardens, resorts, malls, amusement parks, and open cafes.

• The GSF3 Gardens speaker features a Coaxial System with high-precision components to provide a complete audio experience that includes the full range of frequencies, with a 15W multi-connector adapter to facilitate integration into 70/100V central audio systems, or direct operation in 8-ohm mode as required.

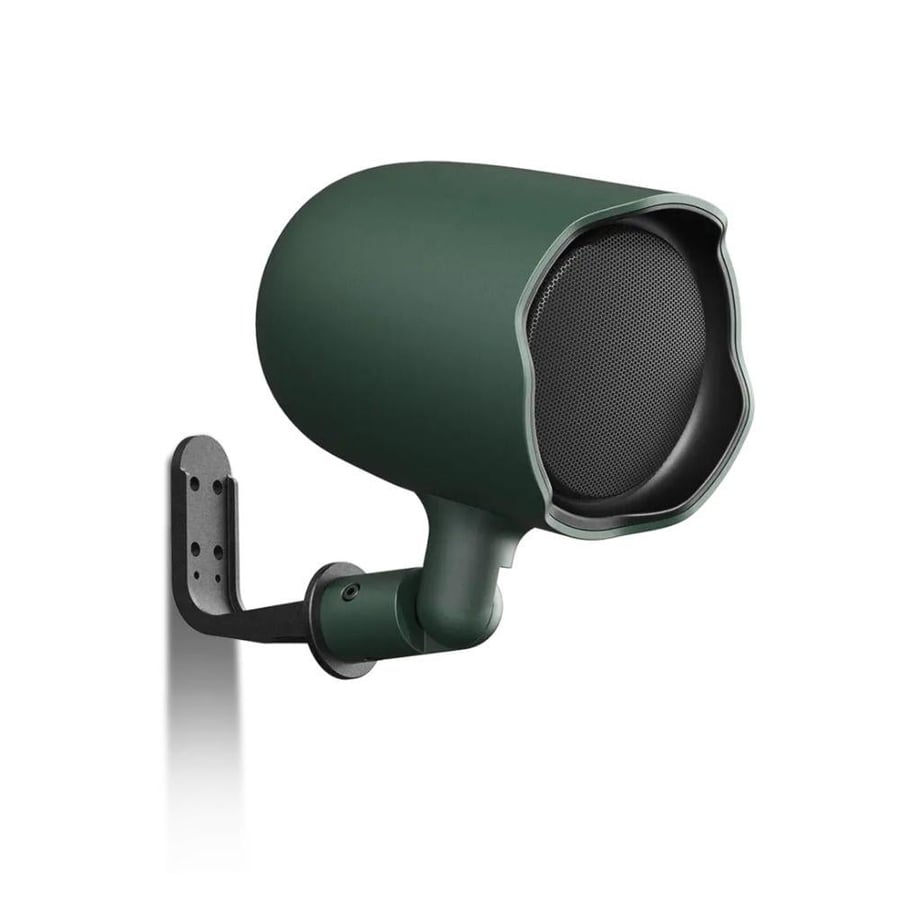

• It also comes with a sleek, low-profile design that blends into the landscape without attracting attention, and is easily mounted via a floor base or L-shaped bracket to fix it to vertical or horizontal surfaces.

Technical description:

• External speaker The JBL GSF3 features an advanced engineering design that combines coaxial speakers and JBL's professional audio technologies to deliver outstanding sound performance in open spaces:
• Operating system: Full-Range Coaxial 2-Way.
• Low-frequency amplifier (Woofer):
• With a diameter of 3 inches (83 mm), it is made of polypropylene with a diameter of 1 inch (25 mm) voice coil mounted on a Kapton™ base to reduce distortion and improve acoustic response.
• High-frequency amplifier (Tweeter):
• A 0.8-inch (20 mm) titanium dome with neodymium magnets provides superior clarity in fine and high detail, even in open spaces.
• The transformer:
• 15W multi-connector, switchable between 70V/100V operating systems or direct 8 ohm mode as required.
• External structure:
• Made from a high-quality polycarbonate and ABS blend with a UL94V-0 fire resistance rating, to ensure high durability in all climatic conditions.

Technical specifications:

• Type: Coaxial Full-Range Outdoor Speaker
• Electrical power:
• 30W continuous
• 60W continuous program (2 hours)
• 120 watts maximum (Peak Power)
• Frequency range (-10 dB): 74 Hz – 20 kHz
• Response time (+/-3 dB): 120 Hz – 15 kHz
• Sensitivity: 84 dB SPL
• Maximum sound pressure (SPL): 103 dB (peak) / 95 dB (continuous)
• Coverage angle: 90° conical
• Nominal impedance: 8 ohms
• Connections: Direct wire with insulating gel-filled nuts
• Voltage converter:
• 70V: 15W / 7.5W / 3.75W
• 100V: 15W / 7.5W
• Casing material: Polycarbonate + ABS, waterproof and dustproof with IP66 standard
• Available colors: Dark Green (Pine Green RAL 6028) – Beige Sand (Beige Grey RAL 7006)
• Dimensions:
• Diameter: 132 mm
• Depth: 167 mm
• Height with ground base: 430 mm
• Net weight: 1.7 kg
• Attached attachments:

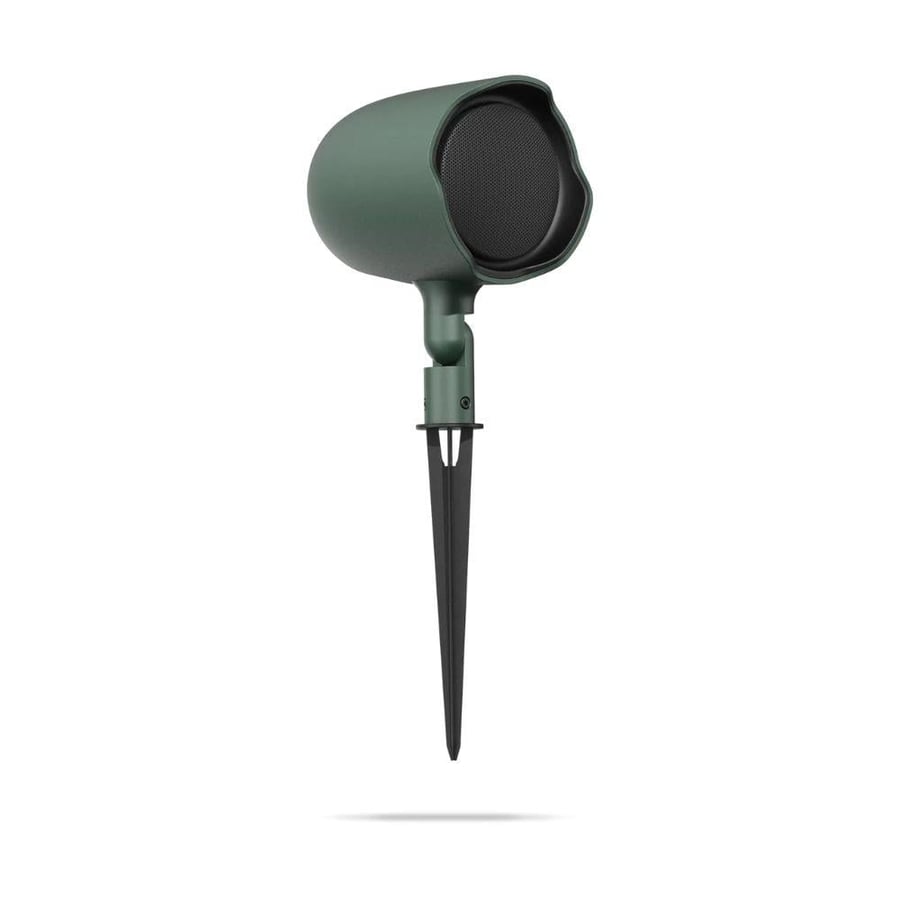

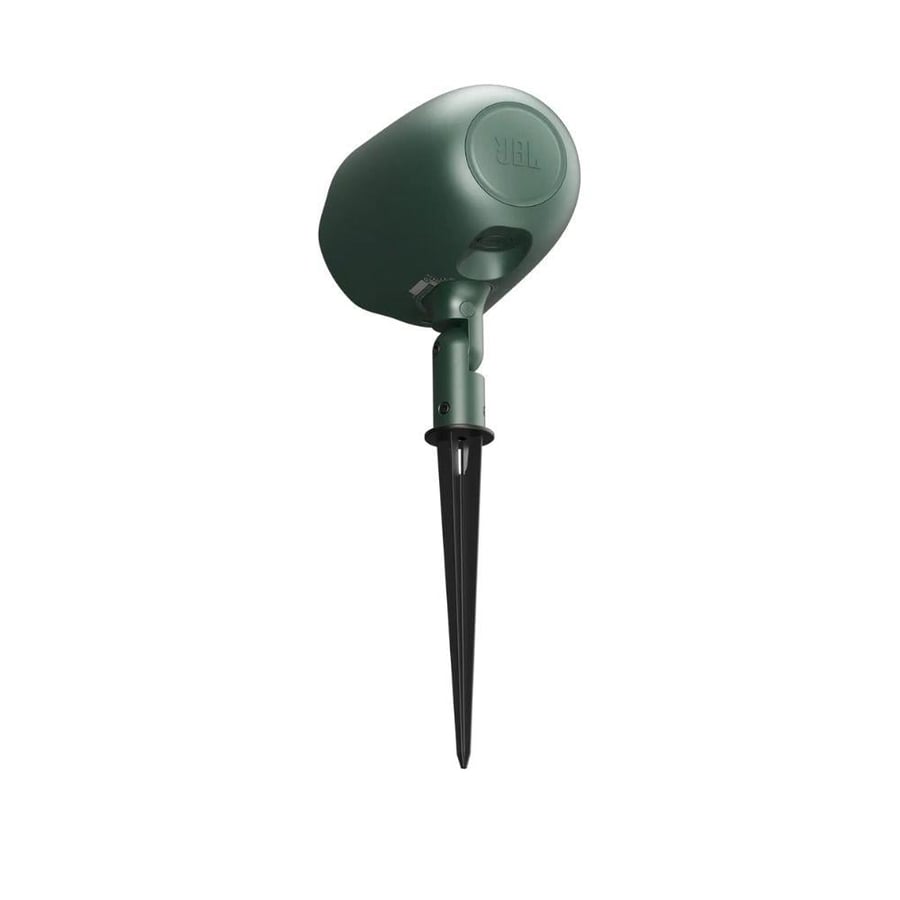

• Ground stake
• L-shaped metal base for mounting on walls or surfaces
• Trend factor (Q): 7.9
• Directional Indicator (DI): 9 dB

Key features:

• Weather-resistant design with an IP66 standard for superior durability in all outdoor conditions.
• An integrated co-axial system delivers balanced and clear sound across the entire frequency range.
• Built-in 70/100 volt converter that can be switched to 8 ohms for full compatibility with different systems.
• Low-rise design blends easily into gardens and natural spaces.
• High operating power of up to 60 watts for powerful audio performance in open environments.
• Durable polymer structure that is resistant to water, dust, and ultraviolet rays.
• Multiple mounting options (floor/wall) for high flexibility in sound distribution.
• Wide 90° coverage angle to ensure uniform sound distribution.

Product summary:

• The JBL GSF3 garden speaker represents the ideal solution for outdoor audio systems that combines high-performance sound with robust engineering.
• The speaker provides a pure outdoor audio experience thanks to its advanced components and robust design, with high flexibility in installation and integration within central sound systems.
• Whether mounted on the floor or on the walls, the GSF3 gives you a balanced sound that spreads clearly and broadly in all directions.

Additional features:

• The ability to integrate with SAP and external amplifiers such as the JBL GSB8 and GSB12 to expand the bass range.
• A bottom water drainage outlet (Drip Hole) protects the speaker components from water accumulation.

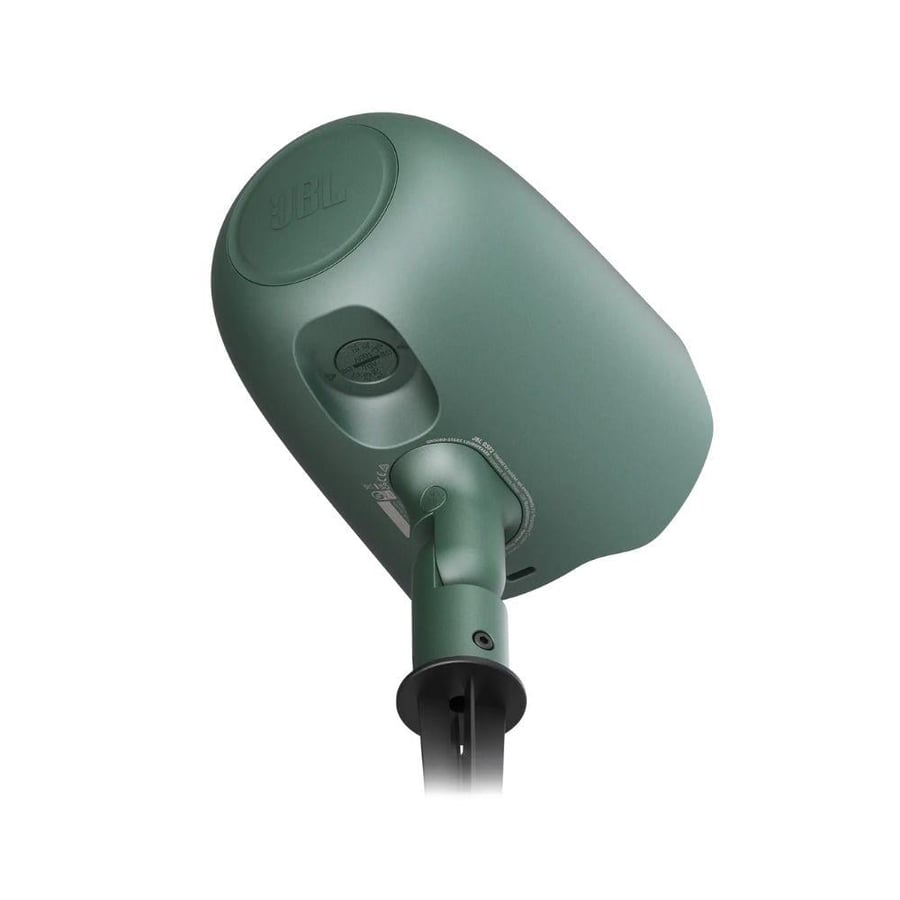

• Adjustable Hinge system for precise sound angle determination.
• A globally award-winning design in industrial excellence for its practical and simple beauty.
• The Tap Selector indicator is located at the bottom and protected from water leakage.

Applications used for the product:

• Gardens, villas, and luxury homes.
• Resorts, swimming pools, and tourist hotels.
• Parks and recreational centers.
• Malls, cafes, and outdoor restaurants.
• Stadiums and sports facilities.
• Commercial outdoor audio systems.

Summary and final advice:

• If you're looking for a compact, professional outdoor speaker that delivers wide-range sound with amazing accuracy and high durability, the JBL GSF3 Garden Speaker is the perfect choice.
• These headphones offer you genuine JBL sound quality in a compact, weather-resistant design, with great flexibility in installation and connection.

Detailed product data (Data Sheet).
