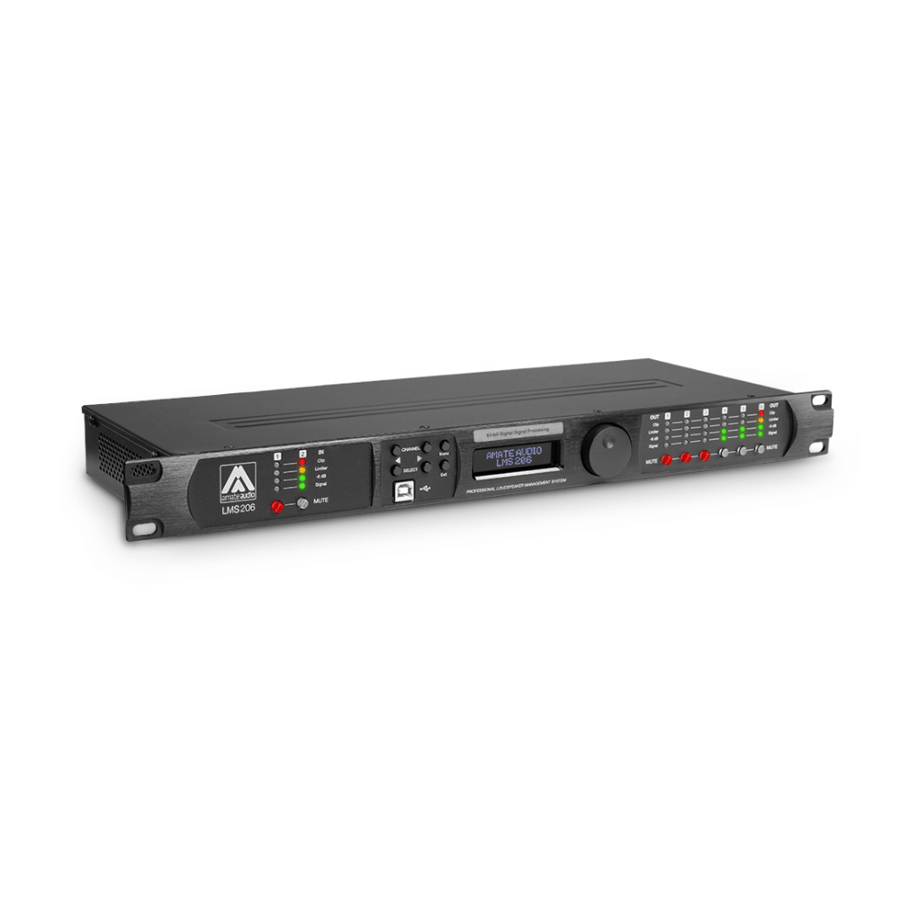

Amate Audio's professional audio processor with USB and Ethernet control and 64-bit digital processing delivers ideal sound for passive amplifiers (model LMS206).

Professional audio processor with USB and Ethernet control and 64-bit digital processing for LMS206/LMS608 distribution, ideal sound for Amate Audio passive amplifiers.

• Audio Amate Audio's LMS206 and LMS608 audio processors represent the next generation of advanced speaker control systems, designed to deliver superior professional performance in complex audio environments. These units are engineered for continuous, precise, and 24/7 operation, making them ideal for passive speaker systems.

• Features of the audio The LMS206 and LMS608 audio processors feature 64-bit digital processing and intelligent engineering features such as signal delay, parametric equalization, multiple frequency filters, password protection, and preset storage. With a USB (LMS206) or USB and Ethernet (LMS608) control interface, audio content can be fully controlled and settings easily customized via a computer.

Technical description:

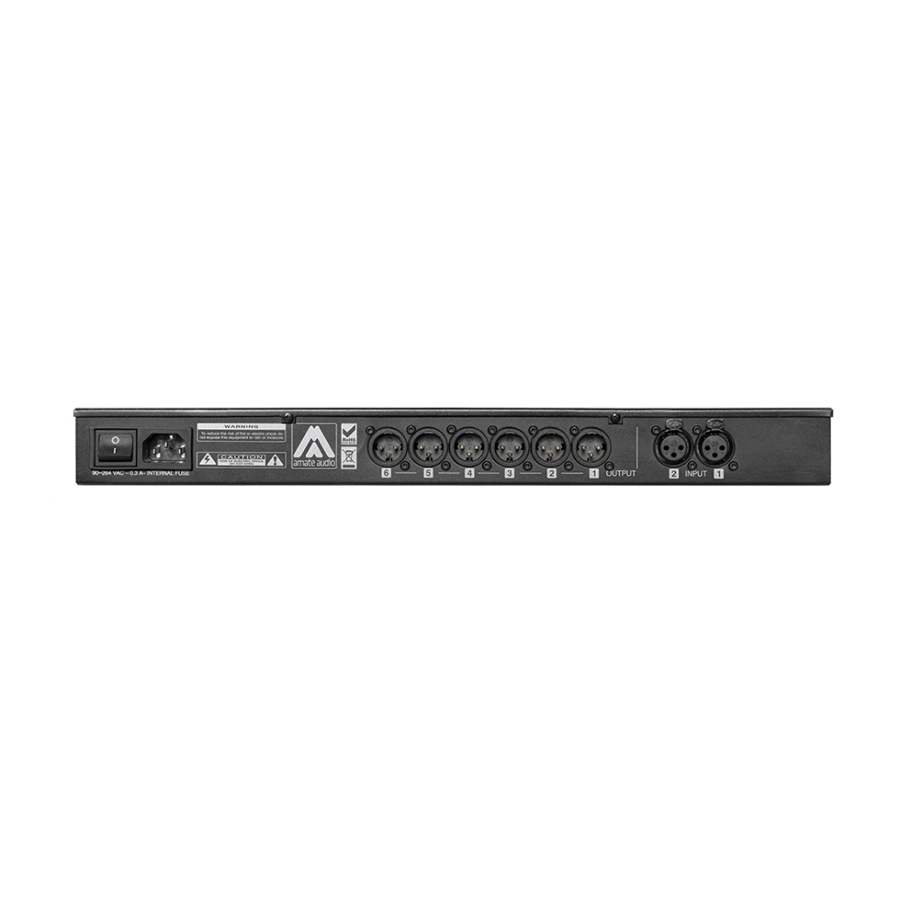

• He provides The LMS206 audio processor has two inputs and six balanced XLR outputs, while the LMS608 comes with four XLR inputs, two AES/EBU digital inputs, and eight XLR outputs. Both systems feature an LCD interface and are controlled via software for Windows and macOS. Each input can be routed to any output, and both offer 10 parametric EQ settings, multiple crossover filters, independent volume limits, a time delay of up to 2 seconds (equivalent to 680 meters), and 1 Hz frequency resolution.

Technical specifications:

• Specification: LMS206 LMS608
• Inputs: 2 (XLR) 4 (XLR) + 2 AES/EBU
• Outputs: 6 (XLR) 8 (XLR)
• Signal input range: 0 dBu / +23 dBu
• Input dynamic range: 110 dB 118 dB
• Output level: 0 dBu / +12 dBu
• Frequency response: 20 Hz – 20 kHz (+/- 0.5 dB) 20 Hz – 20 kHz (+/- 0.5 dB)
• Digital converters: 24-bit, 65 kHz
• Latency: Less than 1.32 ms, Less than 1 ms
• Connection: USB + Ethernet
• Device dimensions: 44x483x165 mm (1U Rack) 44x483x165 mm (1U Rack)
• Weight: 2.5 kg
• Power: 90-264V, 45-65Hz

Key features:

• 64-bit digital processing for high-resolution audio
• Parametric EQ with 10 bands per input/output
• Multi-type crossover filters (Butterworth, Linkwitz-Riley, Bessel)
• Time delay of up to 2 seconds (680 meters)
• USB and Ethernet interface for seamless computer control

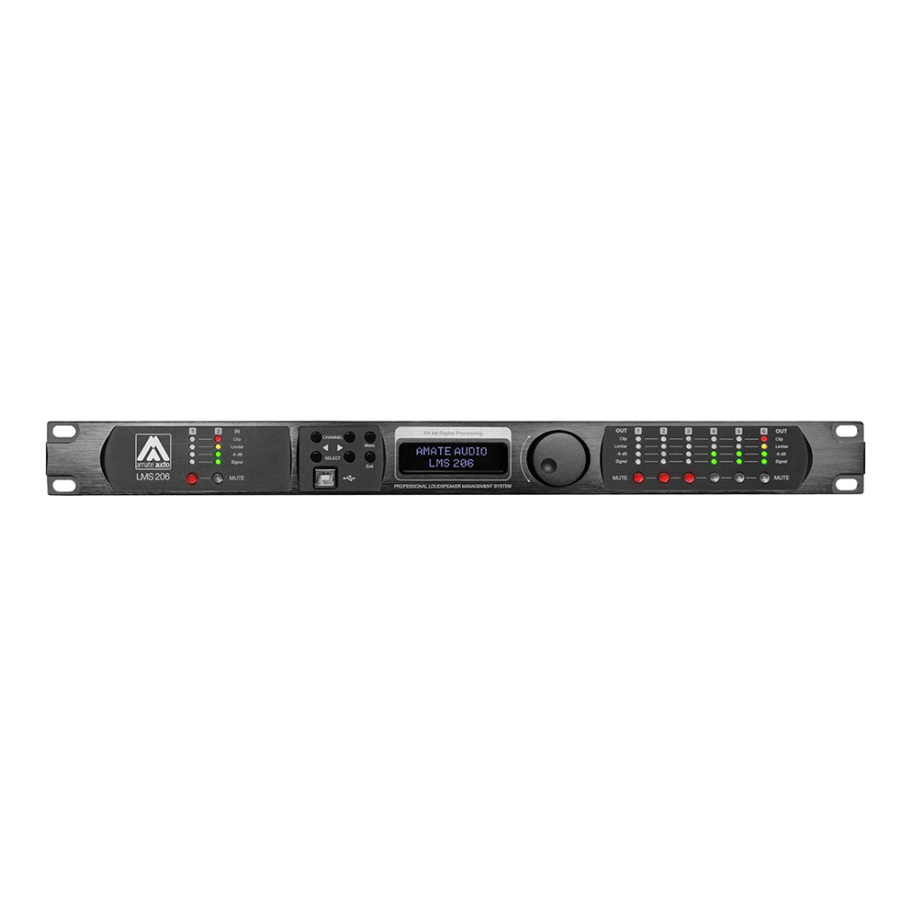

• LCD screen for clear display of settings
• Store up to 100 presets
• Password protection system
• Monitoring signal level, Clip, and Limiter

Product summary:

• Whether you specialize in setting up sound systems for events or manage a professional audio facility, the LMS206 and LMS608 are audio processors that give you complete control over sound distribution, protection, and quality. They provide everything you need in terms of filters, limits, and digital processing to deliver precise, clear sound with ease of use and customization.

Additional features:

• Compact design in 1U rack size
• High capacity for customizing each input and output channel
• Compatible with professional audio systems including Amate Audio amplifiers
• High energy efficiency and low consumption

Applications used:

• Theaters and conference halls: Balanced sound distribution across different spaces with precise delay techniques.
• Sound systems for mosques and educational centers: Complete control over every sound source and output to ensure perfect coverage.
• Live events and parties: Presets to save setup time and quick adjustment of the sound level according to the event.
• Audio studios: Advanced EQ and time processing control are ideal for advanced recordings.
• Installation in fixed audio systems: Easy integration with other devices to provide a stable and efficient audio environment.

Summary and final advice:

The Amate Audio LMS206/LMS608 audio processor is an indispensable tool for any professional audio system that demands flexible control and precise performance. This processor offers all the necessary functions for sound enhancement and integrity, along with remote control capabilities, making it the ideal choice for professional and sophisticated installations. If you're looking for reliable performance and advanced control, this is the processor for your project.
