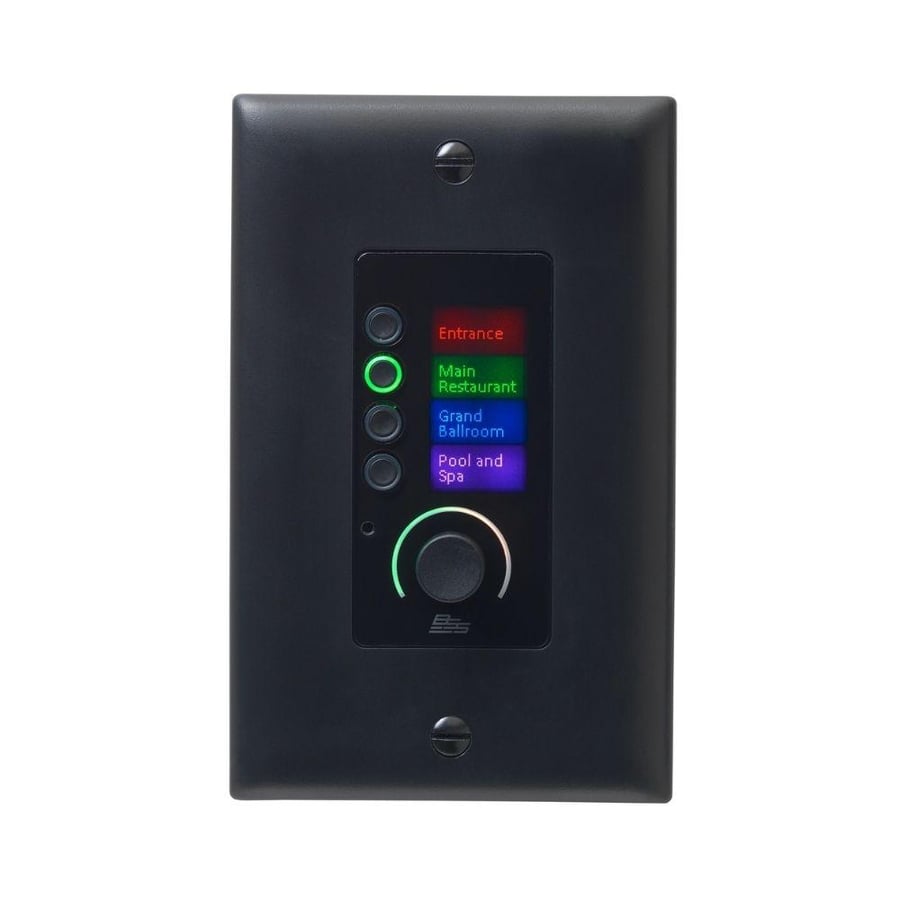

Soundweb 4-button network wall controller with volume control knob for HiQnet systems, black color, model EC4BV-BLK-M, BSS brand

Soundweb 4-button network wall controller with volume control knob for HiQnet systems, black color, model EC4BV-BLK-M, BSS brand

• The Soundweb Contrio EC4BV-BLK-M Volume Switch is an advanced Ethernet-based wall-mounted control unit designed specifically for intelligent control of professional audio systems within the HARMAN HiQnet environment. This unit combines programmable buttons with a rotary volume control knob to provide a flexible and seamless user experience across various professional applications.

Technical description:

• The EC4BV-BLK-Mwall controller relies on a single Ethernet connection used for setup, control, monitoring, and power supply via PoE, reducing the complexity of connections.
• The unit features a push/rotary encoder with an interactive light ring, four control buttons, and a color LCD screen. All interface elements are backlit with multiple colors (up to eight different colors with adjustable brightness).

• The unit is set up very easily via HiQnet Audio Architect software using a drag-and-drop method, with the ability to customize the functions of each button and knob according to system requirements.

Technical specifications:

• Brand: BSS
• Series: Soundweb Contrio
• Model: EC4BV-BLK-M
• Control type: Ethernet (Network)
• Business protocol: HiQnet
• control interface
• Control handle:
• Push/Rotary Encoder
• Continuous control of values (such as volume level)
• Press to activate, mute, or access settings
• Encoder Ring:
• Visual display of volume level
• Displaying the muted/unmuted status
• Ability to display a moving volume level meter
• Number of buttons: 4 multi-function buttons
• Screen:
• Type: LCD
• Resolution: 64 x 128 pixels
• Display custom texts
• Lighting
• Multi-color backlighting (up to 8 colors)
• Full control over light intensity
• Backlighting for buttons, handle ring, and screen
• Communication and Energy
• Network port: One Ethernet
• Power: PoE (Power over Ethernet)
• Composition
• Installation style: wall
• Size:
• US Decora (Single-Gang)
• EU Single-Gang
• Color: Black
• Programming
• Setup program: HiQnet Audio Architect
• Setup method: Drag & Drop

Key features:

• Integrated network control via Ethernet
• Rotating knob for smooth volume control
• 4 customizable buttons for multiple functions
• Interactive lighting ring to display status and level
• LCD screen for displaying text and information
• PoE support to reduce extensions
• Quick and easy setup via HiQnet

Product summary:

• Volume key provides Soundweb Contrio EC4BV-BLK-M is an advanced control interface that combines precise manual control via the rotary knob and quick control via buttons, with a clear visual display of the status, making it an ideal choice for professional control of modern audio systems.

Additional features:

• Sleep Mode to automatically turn off the lights
• Wake up upon any user interaction
• Remote locking and unlocking capability
• Local unlock using a 4-digit PIN code
• Supports multiple operating modes to dynamically change the functions of the handle and buttons.

Applications used for the product:

• Conference and meeting rooms
• Hotels and shopping centers
• Universities and educational institutions
• government buildings
• Smart multi-zone audio systems

Summary and final advice:

• If you are looking for a smart wall-mounted control unit that combines buttons, rotary control, and interactive visual display, the Soundweb Contrio EC4BV-BLK-M gives you the ultimate flexibility and professionalism in managing your sound system with complete confidence.

• Detailed product data (Data Sheet).
