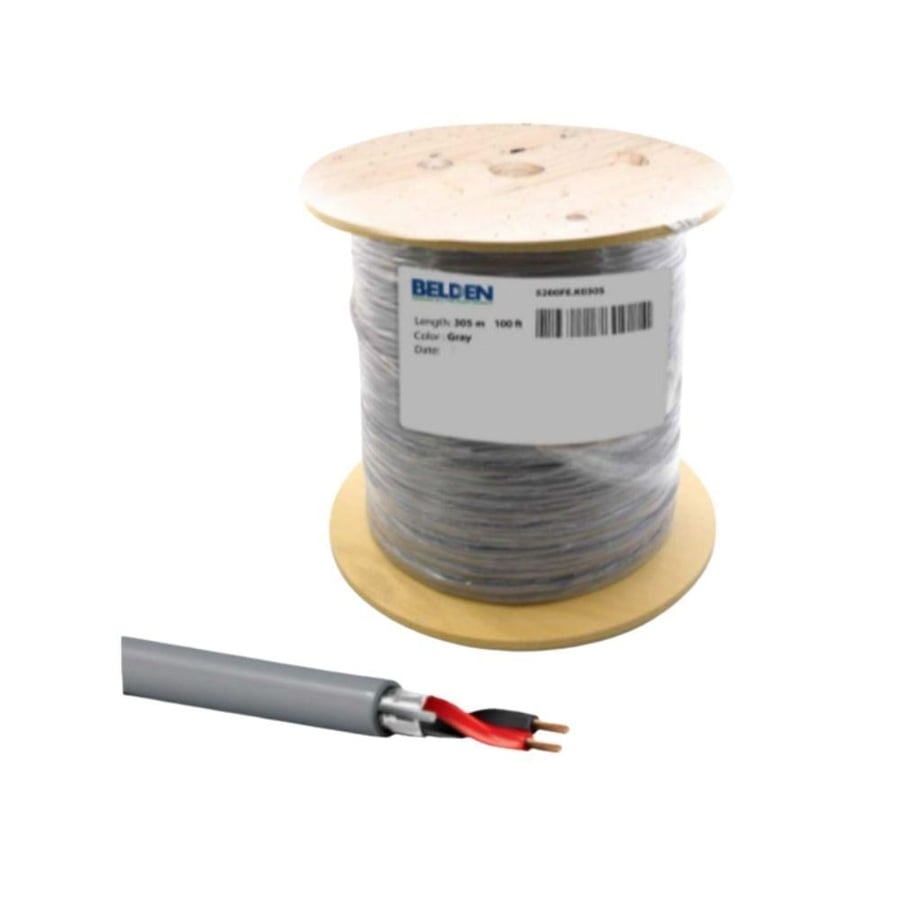

BE-5200FE 305m copper headphone cable featuring two 2x16AWG stranded bare copper conductors with a protective layer and PVC outer sheath. Gray color. Brand: BELDEN

BE-5200FE 305m copper headphone cable featuring two 2x16AWG stranded bare copper conductors with a protective layer and PVC outer sheath. Gray color. Brand: BELDEN

• The Belden be-5200fe headset cable is a professional headset and audio system cable from the American brand Belden, specifically designed for commercial audio systems and public address (PA) systems. It features two 2x16AWG stranded bare copper conductors with a Beldfoil® Shield and a PVC outer sheath, providing stable signal transmission with high protection against interference and electromagnetic interference.

Technical description:

• The BELDEN be-5200fe headphone cable utilizes two 16AWG bare copper stranded conductors with polypropylene insulation to ensure high signal transmission efficiency. It also features a Beldfoil® Shield layer to minimize electrical interference, a CMR (Riser Rated) PVC outer sheath, and a ripcord for easy cable stripping during installation.

Technical specifications:

• Brand: BELDEN
• Model: be-5200fe
• Product type: Shielded headphone and audio system cable
• Applications: Commercial audio systems, security systems, and public address systems
• Number of conductors: 2 conductors
• Connector size: 16 AWG
• Conductor type: Stranded Bare Copper
• Internal insulation: Polypropylene
• Protection: Beldfoil® Shield
• Outer cover: PVC
• Cable classification: CMR (Riser Rated)
• Length: 305 meters (1000 feet)
• Color: Gray
• Country of origin / Brand: American (BELDEN)

Key features:

• High-quality braided copper conductors to ensure stable signal transmission.
• The Beldfoil® Shield layer reduces noise and electromagnetic interference.
• The 2×16AWG size is suitable for professional audio applications.
• Durable PVC casing provides excellent protection against corrosion and external elements.
• The CMR rating is suitable for vertical extensions within buildings.
• A pull cord (Ripcord) to facilitate the installation and stripping of the casing.
• Reliable performance in voice, security and communication applications.
• American manufacturing quality ensures reliability and long operational life.

Product summary:

• The BELDEN be-5200fe headset cable provides professional-grade audio signal transmission thanks to its braided copper connectors and Beldfoil® shielding layer, making it an ideal choice for projects requiring high quality, interference protection, and long-term reliability in commercial and security audio systems.

Additional features:

• A 305-meter-long reel suitable for large projects.
• High flexibility facilitates pulling and extension operations.
• Suitable for fixed installations inside buildings.
• It maintains signal quality even in environments with electrical interference.
• Resistant to continuous use in professional applications.
• Easy to cut to the desired length.
• BELDEN's world-renowned quality in professional cable solutions.

Applications used for the product:

• Public address systems (PA Systems).
• Mosque audio systems.
• Commercial audio systems.
• Background Music Systems.
• Voice alarm and evacuation systems.
• Security and surveillance systems.
• Schools and universities.
• Hospitals and medical centers.
• Hotels and shopping malls.
• Administrative buildings and offices.
• Telecommunications and voice infrastructure projects.

Summary and final advice:

• If you're looking for a professional shielded Belden headset cable that offers the highest levels of reliability and signal transmission quality, the BELDEN be-5200fe is a top choice in its class. With its braided copper conductors, interference-resistant Beldfoil® Shield coating, and CMR rating, it delivers exceptional performance for professional projects in audio systems, public address systems, security, and building infrastructure.

• Detailed product data (Data Sheet).
