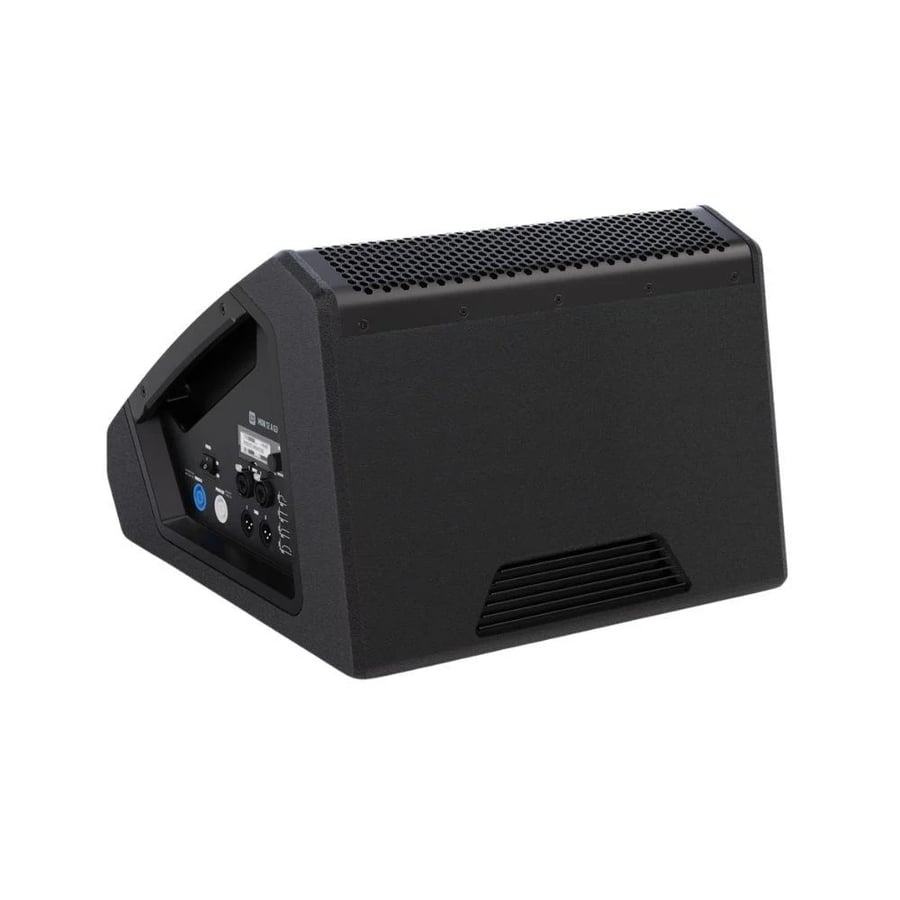

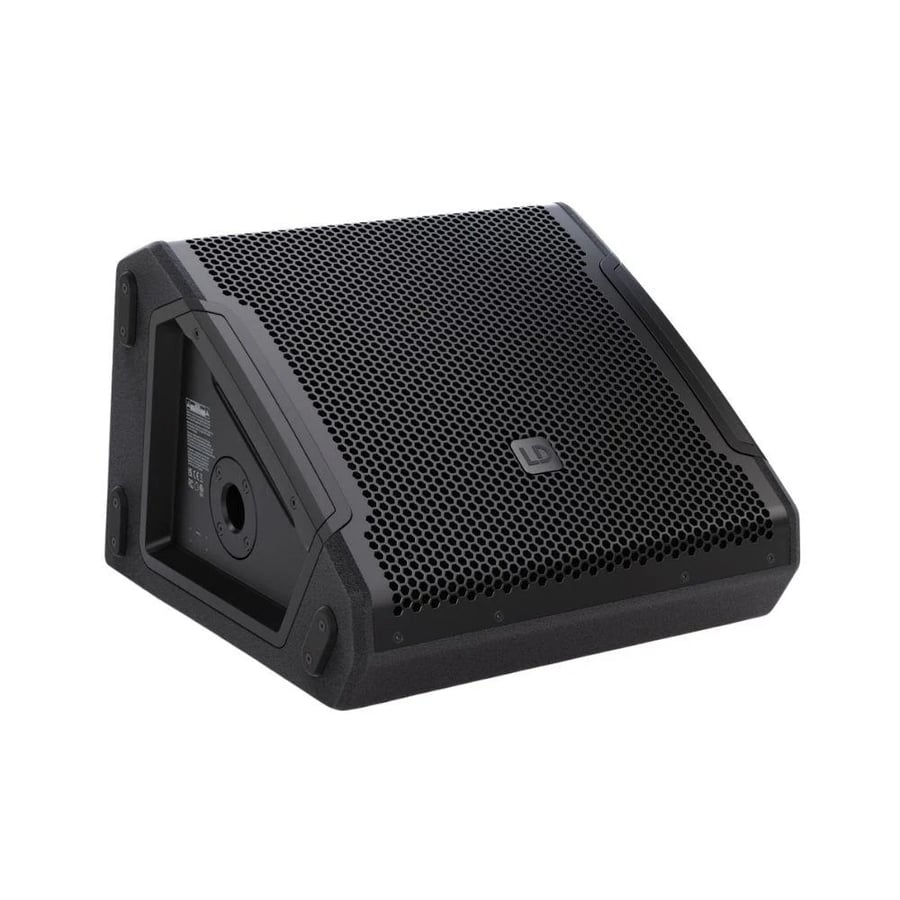

MON 12 A G3 Monitor Theater Active 12-inch 1200W Peak Speaker with DSP, Designed Specifically for Theaters, Black Color, LD Systems Brand

MON 12 A G3 Monitor Theater Active 12-inch 1200W Peak Speaker with DSP, Designed Specifically for Theaters, Black Color, LD Systems Brand

• The LD Systems MON 12 A G3 Monitor speakers deliver professional-grade performance specifically designed for theaters and live performances. They combine a coaxial design, a high-efficiency digital amplifier, and intelligent sound processing to produce clear, balanced audio even at maximum volume. With their ideal 12-inch size, they are the preferred choice for musicians, bands, and event organizers seeking power, precision, and reliability.

Technical description:

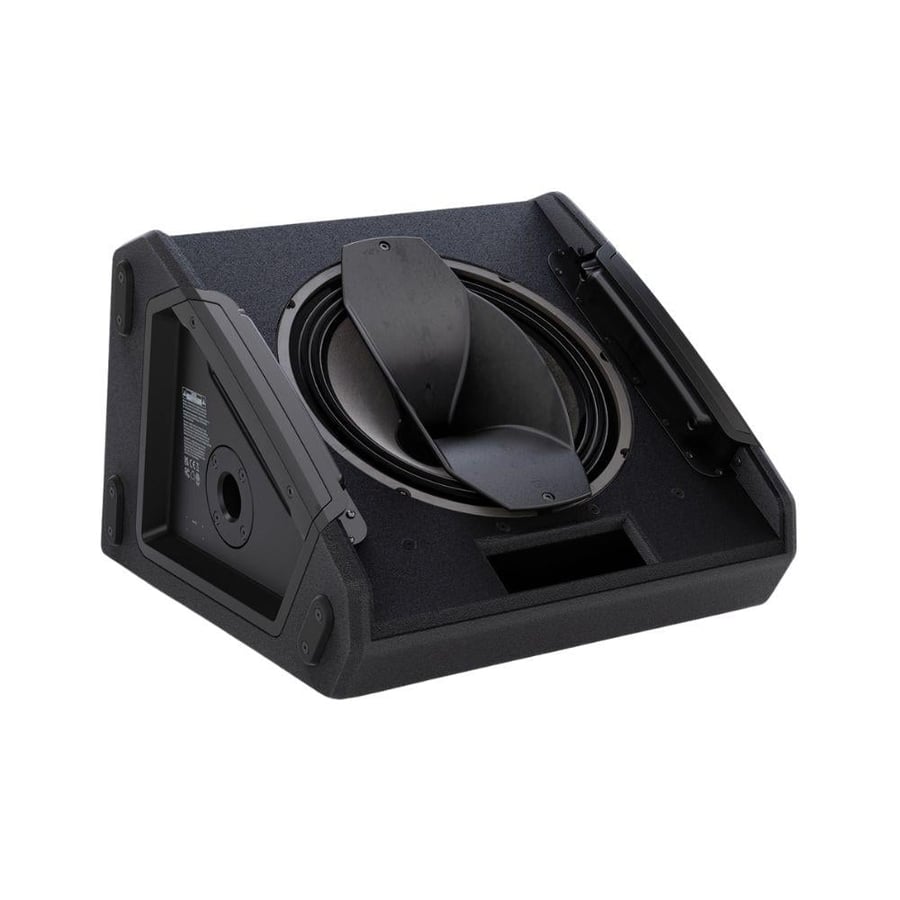

• The MON 12 A G3floor monitor relies on a 2-Way Coaxial system that integrates a 12-inch woofer with a 1.75-inch high-pressure driver with a titanium diaphragm, to provide homogeneous sound distribution and high accuracy in all frequencies.

• The speaker comes equipped with a Class-D amplifier with a power of 300 watts RMS and 1200 watts Peak with the ability to produce sound pressure up to 127 dB. It also includes a DynX® DSP processor (second generation) that provides a three-band equalizer, Notch filter, Delay function, as well as four ready operating modes to suit various professional applications.

Technical specifications:

• Brand: LD Systems
• Model: MON 12 A G3
• Speaker type: Active Stage Monitor
• System design: Bidirectional Coaxial
• Box type: Bass Reflex
• Waffle size: 12 inches
• Audio woofer coil: 2.5 inches
• High-frequency driver: 1 inch with 1.75 inch voice coil and titanium diaphragm
• Amplifier type: Class-D
• Continuous power (RMS): 300W
• Maximum power (Peak): 1200 watts
• Maximum sound pressure (Peak SPL): 127 dB
• Average sound pressure: 120 dB
• Frequency response (-3dB): 68 Hz – 18 kHz
• Frequency response (-10dB): 55 Hz – 20 kHz
• Crossover frequency: 1400 Hz
• Coverage angle: 50° horizontal × 90° vertical
• Observation angle: 33°

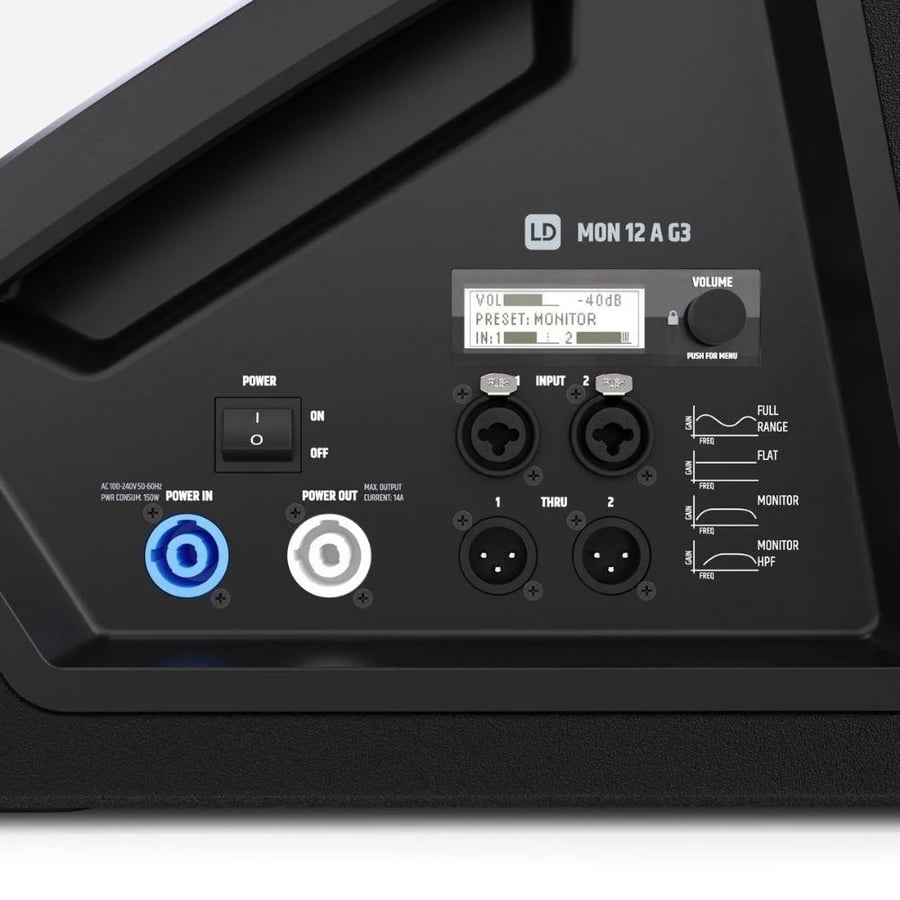

• Number of entrances: 2
• Inputs: XLR / Jack TRS 6.3 mm
• Number of outputs: 2
• Outputs: Three-pronged XLR
• Digital processing: DynX® DSP Gen.2
• DSP functions: Three-band EQ, Delay, Notch Filter, 4 Presets
• Internal mixer: Built-in
• Power Delivery: PowerCON Compatible Loop Through
• Mounting base: 36 mm (0° / 5°)
• Protection: Multi-range limiter, overheat protection, overload protection, and overvoltage protection
• Frame material: Birch Multiplex wood with MDF
• Body thickness: 15 mm
• Protective net: Aluminum
• Power supply: SMPS
• Operating voltage: 100-230V AC, 50/60Hz
• Electrical power: 150 watts
• Dimensions: 425 × 315 × 453 mm
• Weight: 17.4 kg
• Color: Black
• Accessories: Power cable

Key features:

• Professional coaxial design delivers accurate and consistent sound.
• Class-D amplifier with 300W RMS and 1200W Peak power.
• Professional sound pressure up to 127 decibels.
• DynX® DSP Gen.2 processor for clear, distortion-free sound.
• Three-band equalizer with Notch filter and Delay function.
• Four preset operating modes to suit different uses.
• Audio and power loop-through capability to facilitate connections.
• Suitable as a stage observer or Front of House (FOH) auditor.
• Mounting base on a stand with two angles (0° and 5°).
• A sturdy wooden frame with Polyurea coating and durable aluminum mesh.

Product summary:

• The LD Systems MON 12 A G3 Monitor Speakers are among the best theatrical monitoring speakers in their class, combining high power, sound accuracy, and ease of installation with a professional design that makes them suitable for live performances, theaters, conferences, and professional sound systems.

Additional features:

• True Point Source technology for accurate audio picture.
• Powerful low-frequency performance thanks to the 12-inch Wover.
• Professional design suitable for intensive daily use.
• The ability to pass electricity and sound between multiple speakers.
• Wide audio response up to 20 kHz.
• Sleek and durable design that withstands professional working conditions.
• Easy to transport and install thanks to the side handles.

Applications used for the product:

• Stage Monitoring.
• Concerts and live performances.
• Front of House (FOH) systems.
• Conferences and events.
• Theaters and performance halls.
• Mosque audio systems.
• Audio equipment rental companies.
• Professional sound systems.
• 2.1 systems with subwoofer.
• Delay Line headset.

Summary and final advice:

• If you're looking for a professional 12-inch floor monitor that offers the perfect balance of power, clarity, and ease of use, the LD Systems MON 12 A G3 is an excellent choice. With its pivoting design, DynX® DSP processor, and up to 1200W peak power at 127dB sound pressure, you'll get reliable performance and exceptional sound quality in a variety of professional audio applications, from stage sets to mainline sound systems.
