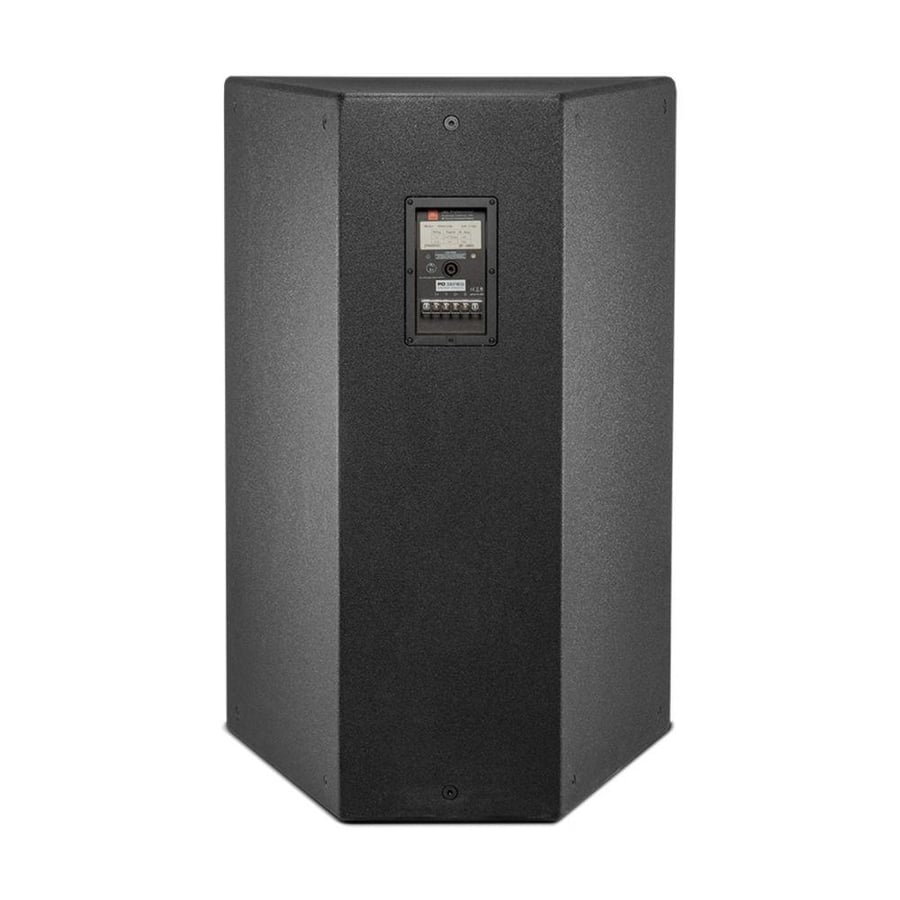

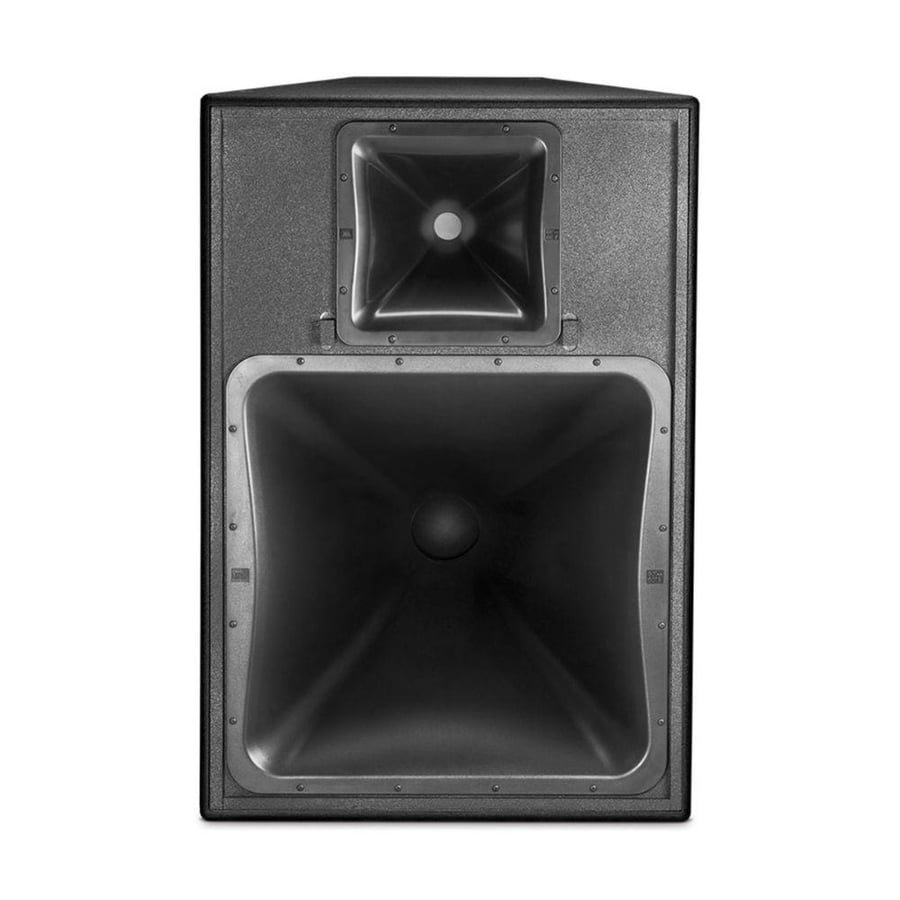

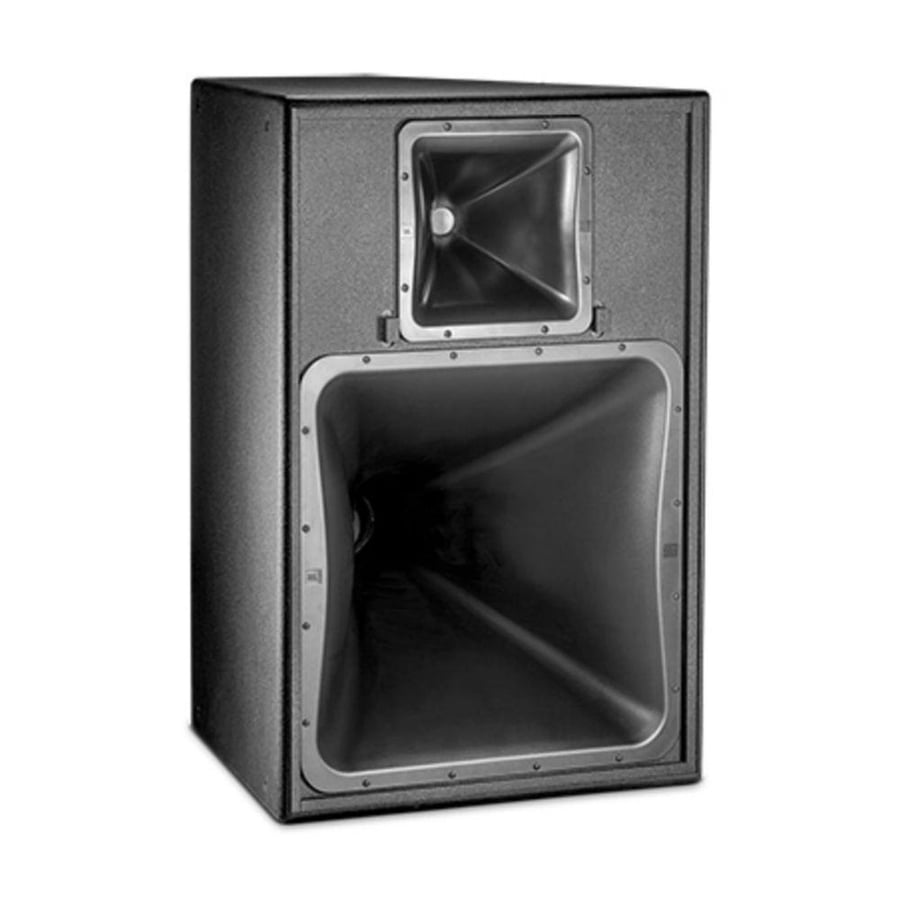

JBL Professional Horn 12-inch Speaker, 300W, Two-Way, 60x40 Coverage, Maximum Control, Sound Direction, Model PD6212/64

JBL Professional Horn 12-inch Speaker, 300W, Two-Way, 60x40 Coverage, Maximum Control, Sound Direction, Model PD6212/64

• The JBL PD6212/64 speaker is one of the most well-balanced models in the Precision Directivity series, offering both power and coverage control. With a 60° x 40° angle, the speaker delivers precise, directional sound propagation, ideal for projects requiring high clarity, projection power, and complete control over sound direction.
• Thanks to its 12-inch LF driver housed within a horn, the speaker delivers excellent Mid-Bass power with very high sensitivity, making it suitable for speech and music simultaneously.
• This Horn speaker model is an ideal choice for theaters, enclosed halls, and multi-purpose venues that require consistent and uniform sound quality across a wide space without distraction.

Technical description:

• The PD6212/64 speaker relies on a highly sensitive 12-inch M222-8A LF driver, delivering consistent performance even when running for extended periods.
• The 2453H high-frequency unit with a 4-inch coil ensures superior speech clarity and fine details, with high endurance for professional operation.
• The PT™ 60x40 horn ensures uniform coverage with excellent control and is an ideal choice for spaces that require greater focus in the middle of the hall or on the stage.
• The speaker also supports Bi-Amp modes for advanced control and Passive mode for traditional use, providing great flexibility in system setup.

Technical specifications:

• Frequency range (-10 dB): 80Hz – 18kHz
• Response (±3 dB): 90Hz – 16kHz
• System power (Passive IEC): 300W – Peak 1200W
• Driver strength (AES):
• LF: 400W Peak 1600W
• HF: 75W Peak 300W
• Sound pressure (SPL):
• LF: 137 dB
• HF: 135 dB
• Passive: 140 dB Peak
• Sensitivity: 107 dB SPL
• Impedance: 8Ω
• Coverage angle: 60° × 40°
• Drivers:
• LF: 12" M222-8A
• HF: 2453H – 4" Voice Coil
• Dimensions: 991 × 673 × 897 mm
• Weight: 69 kg
• Manufacturing: 11-layer Finnish wood
• Finish: Impact-resistant DuraFlex™
• Connection ports: Speakon NL4 + Barrier Strip

Key features:

• High control over sound direction with a 60x40 angle suitable for deep tracks.
• Strong LF performance thanks to the 12-inch loaded horn
• Very high clarity for mid- and high frequencies
• Powerful sound pressure level up to 140 dB
• Professional design and robust construction for intensive use
• Compatible with Bi-Amp and Passive systems
• A robust structure resistant to harsh conditions
• Uniform coverage without energy waste or sound distortion

Product summary:

• The JBL Horn PD6212/64 speaker offers a perfect balance between sound power and coverage accuracy, making it an excellent choice for those who need powerful sound directed with greater precision.
• Whether you want clarity of speech in a mosque, balanced musical performance in a hall, or professional sound distribution in a public facility, this model is capable of delivering excellent results with high consistency and durability.

Additional features:

• Rotatable audio guides for horizontal or vertical use
• Thick metal mesh resistant to corrosion and impact
• Weather-resistant options WRC/WRX
• Multiple suspension points for professional suspension systems

Applications used for the product:

• Indoor halls and theaters
• Conference centers
• Multi-purpose halls
• Professional PA systems
• Indoor sports facilities
• With its 60x40 coverage, it is suitable for places that require high concentration in a specific area, without excessive diffusion or loss of sound energy.

Summary and final advice:

• If you're looking for a powerful 12-inch speaker with focused 60x40 coverage and very high clarity, then this speaker is for you. The JBL PD6212/64 is one of the best options in its class.
• It gives you excellent output power, accurate diffusion, and clarity of speech suitable for mosques, halls, and facilities that need a reliable, professional sound system.
• Thanks to its high sensitivity, Bi-Amp support, and long lifespan, it is a headset built to deliver stable and powerful performance over the years.

Detailed product data (Data Sheet).
