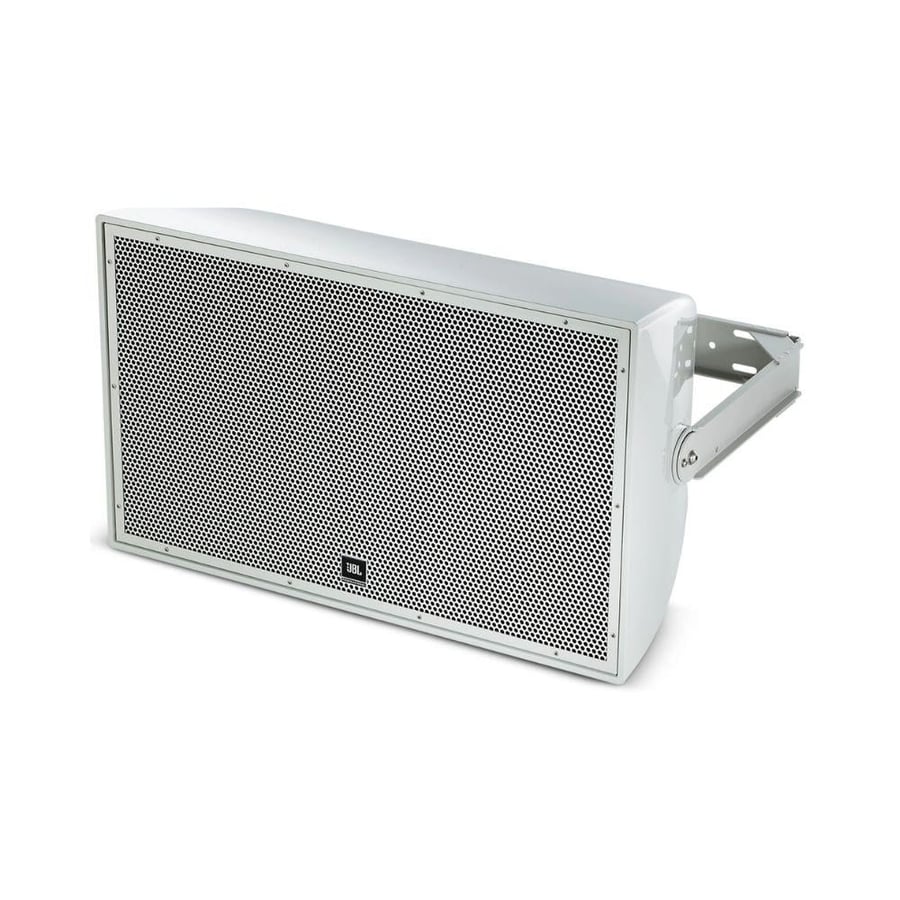

JBL 15-inch outdoor speaker, 600 watts, wide 120° x 60° coverage, suitable for large systems in large facilities, model AW526

JBL 15-inch outdoor speaker , 600 watts, wide 120° x 60° coverage, suitable for large systems in large facilities, model AW526

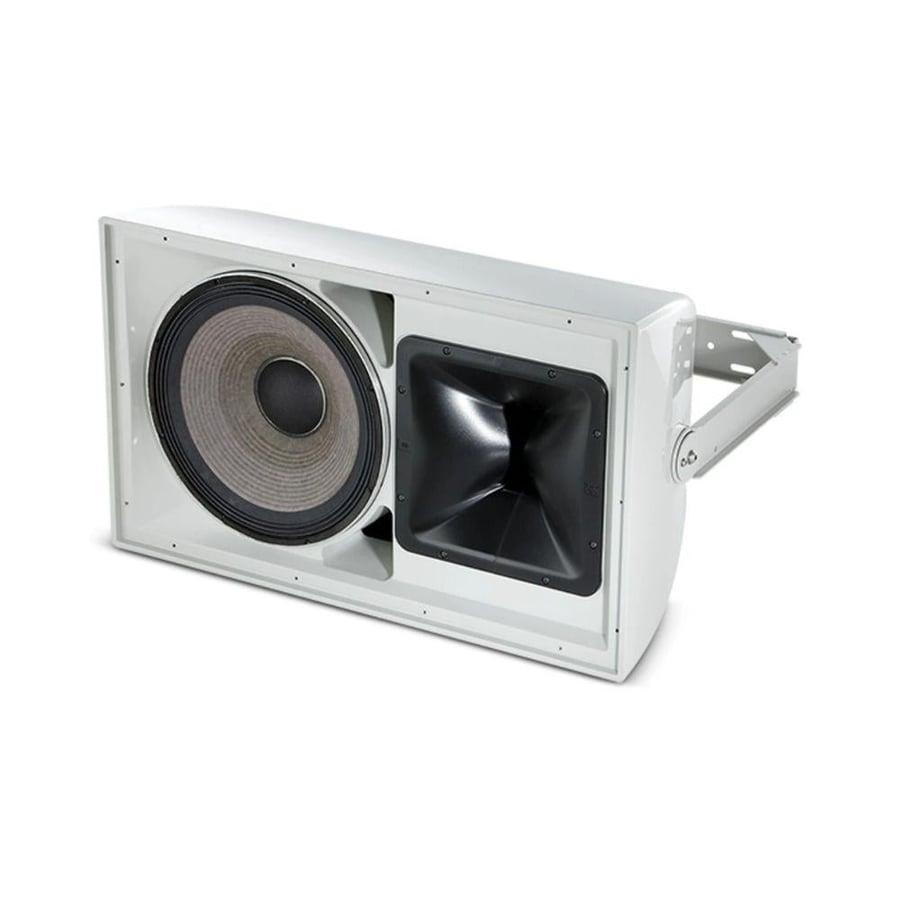

• External speakers The JBL AW526 is one of the most powerful outdoor speakers in its class, designed to deliver powerful and reliable sound performance in the toughest environments. It features a full 2-way design with a 15-inch Differential Drive® driver that provides strong, balanced low-end power, as well as a high-precision compression driver for exceptionally clear high frequencies.

• An external speaker With 120° × 60° coverage via a professional PT™ Waveguide rotating audio guide, it can be mounted in the appropriate shape — horizontally or vertically — without loss of coverage quality.
• Its structure is made of weather-resistant Fiberglass with an IP55C rating, with a multi-layered stainless steel protective mesh to withstand rain, sun, humidity, and harsh conditions.
• The speaker comes with a 400W 70/100V converter, making it suitable for large systems in large facilities.

Technical description:

• It depends The AW526 external speakers are based on the JBL 2265H professional driver, which uses Differential Drive® technology, giving higher power with a lighter weight and purer sound performance.
• The 2432H high-performance driver delivers high-resolution High Frequencies audio with a 3-inch voice coil to provide the highest levels of clarity even in large open spaces.
• The PT-H126HF-1 audio driver provides consistent, distortion-free sound distribution at a wide angle, making the speaker suitable for large horizontal gathering areas.

Technical specifications:

• System type: High-power 2-way external speaker
• Operating power:
• 600 watts (2400 watts peak)
• Frequency range:
• 35 Hz – 20 kHz (-10 dB)
• 55 Hz – 17 kHz (±3 dB)
• Coverage angle: 120° × 60° – Rotating horn
• Sensitivity: 100 dB @ 1W/1m
• Maximum sound pressure: 128 dB (peak 134 dB)
• 70/100V transformer:
• 70V: 400W / 200W / 100W
• 100V: 400W / 200W
• Drivers:
• LF: 15" JBL 2265H – Audio File 3"
• HF: JBL 2432H – 1.5" slot and 3" coil
• Impedance: 8 ohms
• Structure: Multi-layered fiberglass, weather-resistant
• Protection: IP55C
• Dimensions: 485 x 810 x 478 mm
• Weight: 28.3 kg

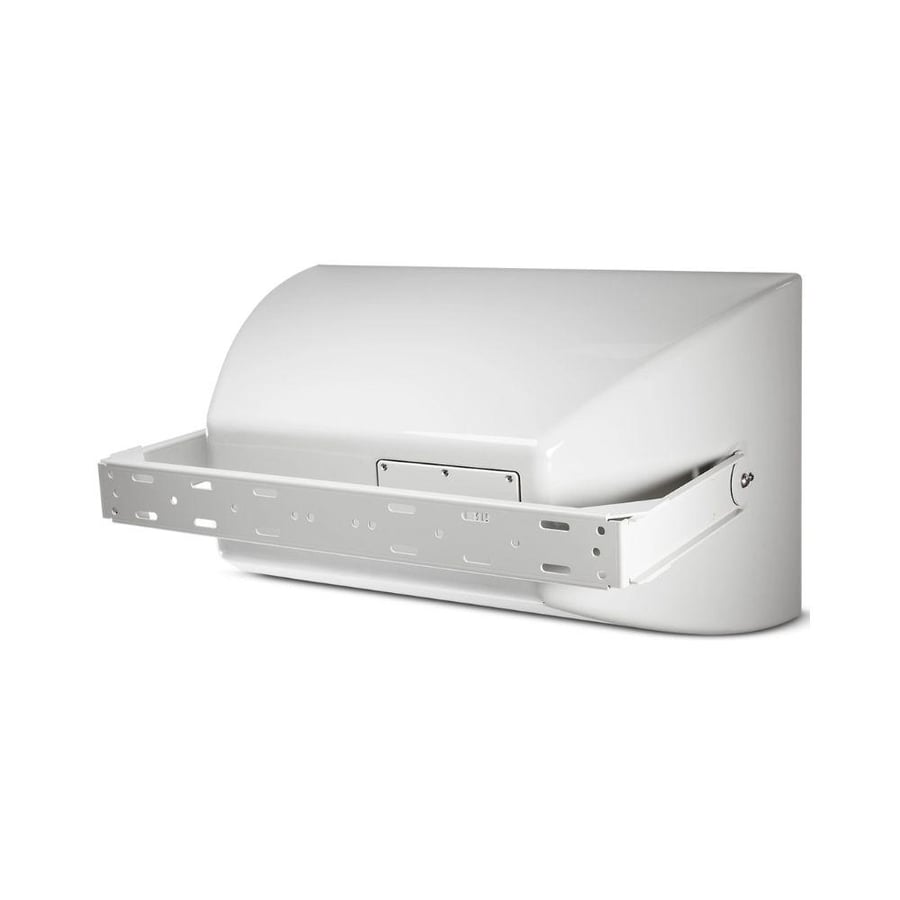

• Installation:
• U-brackets included
• M10 and M6 mounting points
• Protective mesh: Stainless steel – 14-gauge

Key features:

• 600W power with exceptional performance at low frequencies.
• Wide sound coverage 120° × 60° suitable for large spaces.
• The fiberglass structure is weather-resistant and performs efficiently in rain, sun, and high humidity.
• Driver 15 inch with Differential Drive® technology for maximum power and lowest weight.
• The built-in 70/100V converter makes it suitable for large projects.
• A multi-layered mesh for corrosion resistance in harsh environments.
• Rotating horn for horizontal or vertical use as needed.

Product summary:

• The AW526 outdoor speaker offers a perfect balance of power, durability and wide coverage, making it one of the best choices for professional outdoor projects.
• Whether in stadiums, sports facilities, swimming pools, parks, or entertainment centers—these headphones will provide you with huge, clear sound all day long and in the toughest conditions.

Additional features:

• Consistent performance during prolonged operation.
• Excellent protection from sun, salt and rust.
• Supports cables up to 10AWG.
• Improved design to reduce vibrations.
• It can be easily mounted on walls or corners.

Applications used for the product:

• Ideally used in:
• Stadiums and sports halls
• Amusement park rides and entertainment venues
• Open-air theaters
• Gardens and swimming pools
• Outdoor shopping centers
• public gathering places
• Parks and festivals
• It provides strong and clear coverage for very large areas.

Summary and final advice:

• If you need 600W outdoor speakers that offer wide coverage with high sound power and stability in the harshest conditions, the JBL AW526 is an excellent choice for any professional project.
• It offers high value and unmatched performance, and is suitable for projects that require a strong sound that is evenly distributed over a large area.

Detailed product data (Data Sheet).
