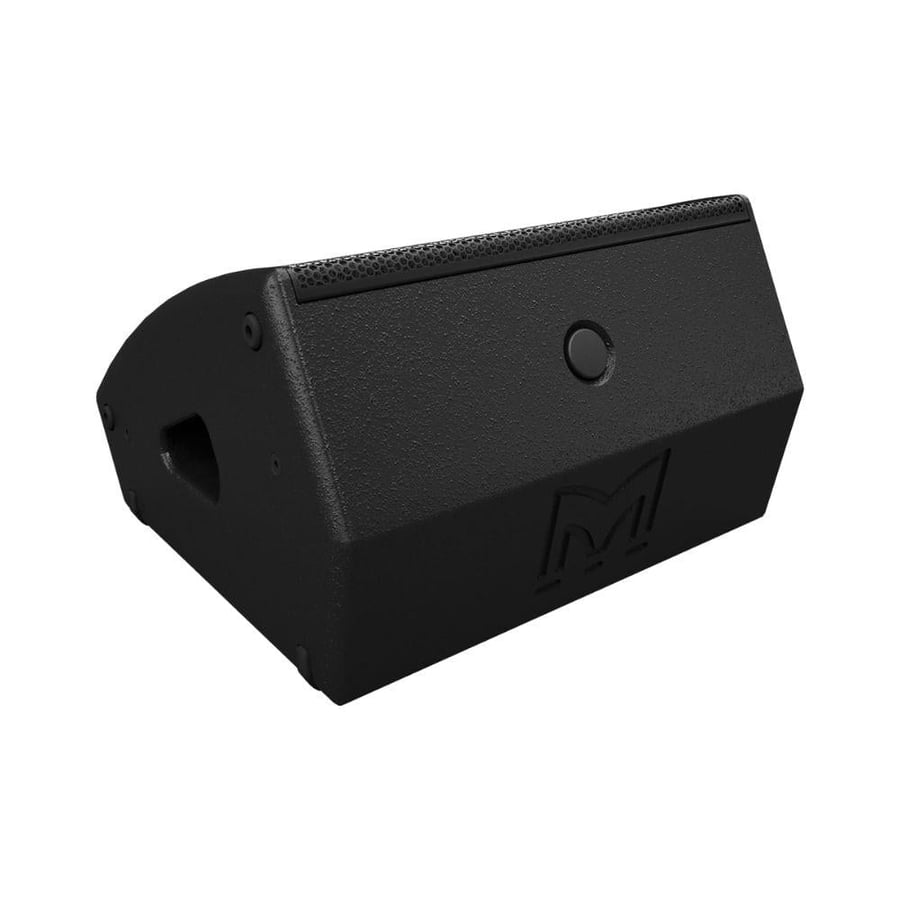

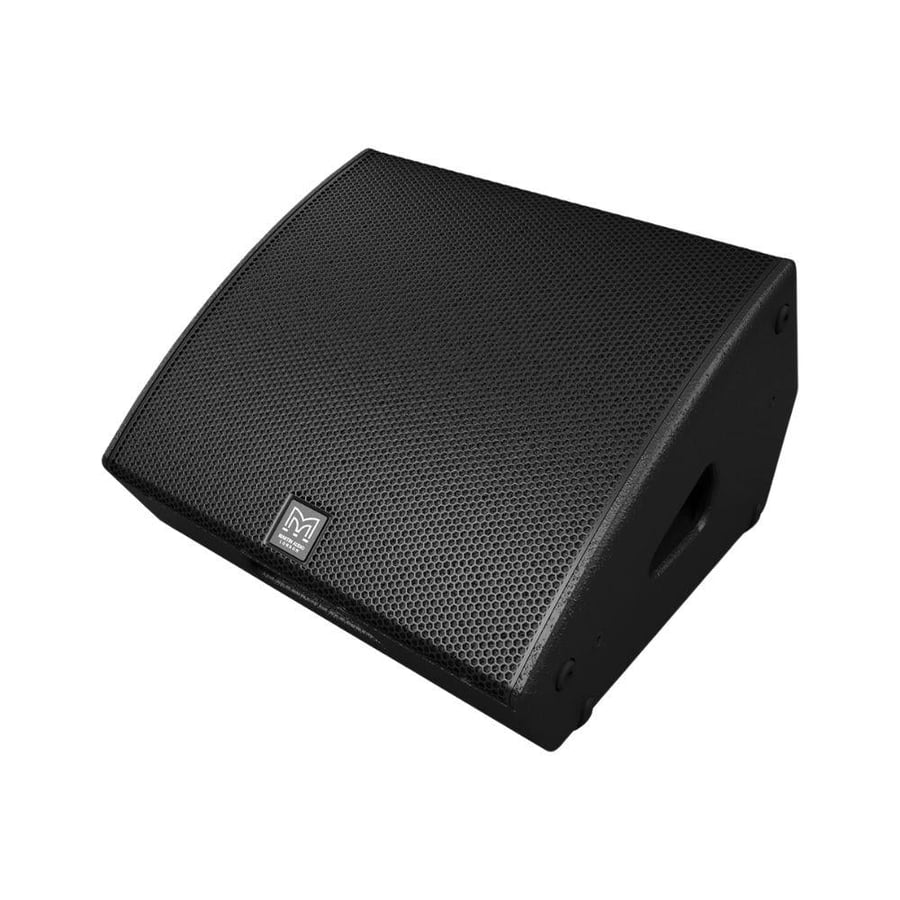

LE100 12-inch 300W Theater Monitor Speaker with Pivot Stage Display - BASF Martin Audio Brand

LE100 12-inch 300W Theater Monitor Speaker with Passive Coaxial Theater Projection Screen by MARTIN AUDIO

• The Martin Audio LE100 Monitor Speaker is one of the most popular professional stage monitor speakers, combining a compact design with high-fidelity audio performance to meet the needs of theaters, concerts, and professional studios. The speaker utilizes Martin Audio's exclusive Coaxial Differential Dispersion™ technology to deliver consistent and stable sound coverage, ensuring clear and balanced audio for performers and artists throughout the stage.

• Thanks to its high power and excellent build quality, the LE100 is an ideal choice for bands, theaters, houses of worship, and audio system rental companies.

Technical description:

• The Monitor LE100 speakers are based on a two-way passive design with a 12-inch bass unit and a 1-inch coaxial compression driver, providing balanced audio performance with exceptional clarity across all frequencies.

• Differential Dispersion™ technology provides a variable horizontal spread from 110° to 60° to cover an almost rectangular listening area at head level, which ensures consistent sound level and quality regardless of the positions of listeners or performers on stage.

• The speaker is made of high-quality Birch/Poplar Plywood with a scratch-resistant black finish. It also features a sturdy steel grille, built-in handles and multiple hanging points, as well as a base for mounting it on a stand when used as a side-firing sound system or sound booster speaker.

Technical specifications:

• Brand: Martin Audio

• Model: LE100

• Product type: Passive Stage Monitor

• Design: Two-Way Passive

• System type: Coaxial Differential Dispersion™

• Speaker size (Bass): 12 inches (300 mm)

• Voice coil: 2.5 inches (63.5 mm)

• High-frequency motor: 1 inch with a 1.75 inch (44 mm) coil

• Continuous power (AES): 300W

• Peak power: 1200 watts

• Frequency response: 78Hz – 20kHz (±3dB)

• Minimum frequency: 58Hz (-10dB)

• Sensitivity: 97dB

• Maximum sound pressure level: 129dB Peak

• Resistance: 8 ohms

• Coverage angle: 110° to 60° horizontally × 60° vertically

• Crossover frequency: 1.6kHz

• Materials: Multi-layered birch/poplar wood

• Paint: Black grained, scratch-resistant

• Front grille: Perforated steel with acoustic fabric

• Monitor angle: 27°

• Connectors: 5 x NL4

• Attachment points: 4 x M8

• Pole Mount base

• Dimensions: 490 x 302 x 472 mm

• Weight: 18 kg

Key features:

• Coaxial Differential Dispersion™ technology for homogeneous sound coverage.
• The Point Source design provides high accuracy in audio transmission.
• Professional operating power of 300W RMS and 1200W Peak.
• 12-inch bass with strong low-frequency performance.
• Excellent clarity of sound, speech, and musical performances.
• Professional, shock-resistant wooden frame.
• Durable steel mesh to protect internal components.
• It can be mounted on a stand or used as a floor monitor.
• Five NL4 connection points for connection flexibility.
• Built-in handles for easy transport and installation.

Product summary:

• Availability The Martin Audio LE100 monitor headphones deliver professional performance, combining power, precision, and balanced sound distribution, making them one of the best theatrical monitor headphones for theaters, concerts, and studios. Thanks to Martin Audio's advanced technologies and superior build quality, they provide performers with a clear and consistent listening experience throughout their performances.

Additional features:

• Suitable for use as a floor monitor or sidephone.
• Low-rise design does not obstruct the view of the stage.
• The spread of a rectangular sound maintains the clarity of the performance.
• High resistance to intensive use during tours and parties.
• Easy to transport thanks to the built-in handles.
• It can be integrated with professional amplifiers and subwoofers from Martin Audio.
• Full compatibility with professional audio systems.

Applications used for the product:

• The professional theatrical monitor.
• Concerts.
• Theaters.
• Musical groups.
• Places of worship.
• Conferences and events.
• The studios.
• Side Fill systems.
• Drum Fill systems.
• Audio system rental companies.

Summary and final advice:

• If you're looking for a professional theater monitor headset that offers exceptional clarity, balanced sound distribution, and high reliability, then Monitor speaker The Martin Audio LE100 is one of the best options in its class. Thanks to Differential Dispersion™ technology, 300W RMS power, and a sound pressure level of up to 129dB, it will ensure consistent, professional performance in theaters, concerts, and conferences, regardless of the use.

• Detailed product data (Data Sheet).
