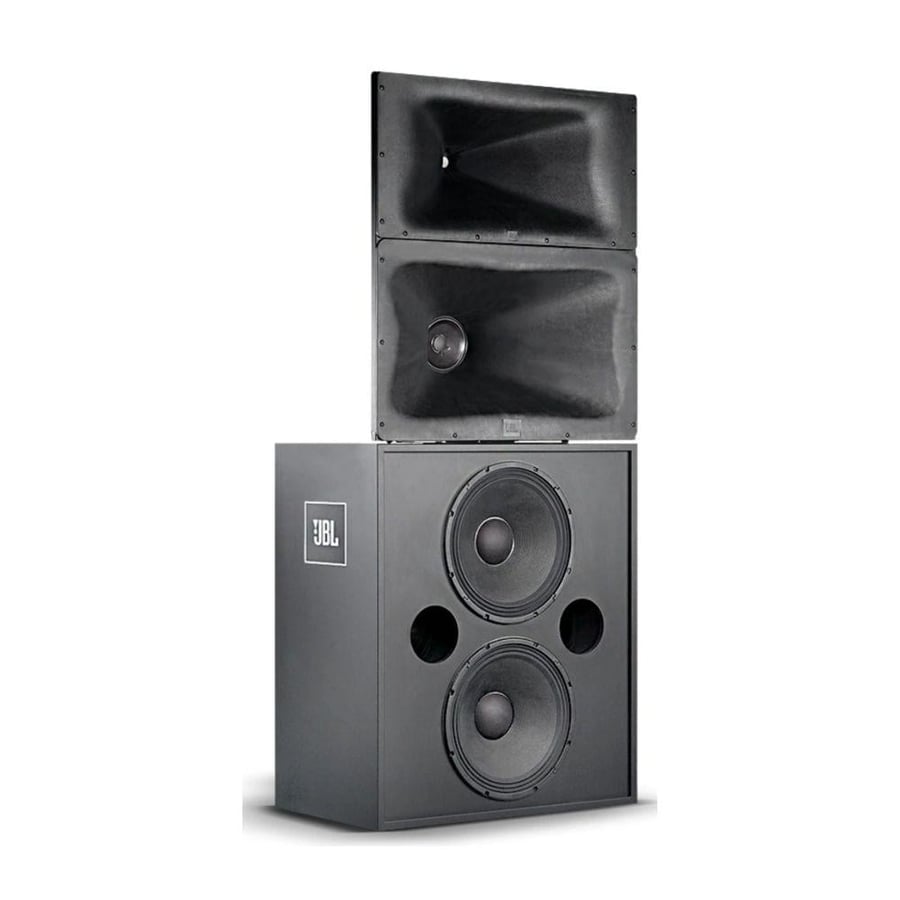

JBL 500W Professional 3-Way Cinema Speaker System with ScreenArray, Powerful Performance with Passive and Bi-Amp Options, Model 3730

JBL Professional 3-Way ScreenArray Cinema Speaker System : Powerful performance with Passive and Bi-Amp options, Model 3730

• The JBL 3730 ScreenArray® Cinema Speakers deliver a high-definition cinematic sound experience thanks to their 3-way design, ensuring consistent sound distribution and exceptional clarity in every detail. This system was developed to meet the needs of small and medium-sized cinemas while maintaining the highest performance standards at a competitive price.

• The speaker system supports Passive or Bi-Amp operating modes to provide greater flexibility in acoustic design, while SSC™ Screen Spreading Compensation technology compensates for the spread of high frequencies behind the screen to achieve greater clarity in dialogue and effects.
• The speaker also relies on Optimized Aperture Waveguide sound drivers that provide accurate coverage and low distortion even at high levels.

Technical description:

• Cinema headphones The JBL 3730 features Dual 15” LF Drivers for powerful, deep bass, with a 6.5” MF mid-frequency unit and a 1” HF Compression Driver to ensure complete balance across all sound ranges.
• The system allows you to choose between full Passive or Bi-Amplified operation for more precise control over each bandwidth via specialized processors and power supplies.

Technical specifications:

• Frequency response (±3dB): from 40Hz to 18kHz
• Frequency range (-10dB): from 30Hz to 18kHz
• Sensitivity: 105dB
• Nominal resistance: 4Ω
• Passive power rating: 600W
• Power consumption (Bi Amp): LF 500W / MF-HF 125W
• Crossover settings: 450Hz and 2kHz
• Coverage pattern: 90° horizontal, -30°/+20° vertical
• LF units: 2 x 15" Ribbon Coil
• MF unit: 6.5" size
• HF Unit: 1" Driver
• Dimensions: 68.25 x 30 x 17.75 inches
• Net weight: 67.1 kg

Key features:

• 3-Way ScreenArray® design for clear, powerful, and consistent sound throughout the auditorium
• The option of Passive or Bi-Amp operation provides flexibility in connection and control.
• SSC™ technology for enhanced audio clarity behind the screen
• Enhanced audio drivers for low distortion and accurate response
• Powerful bass thanks to Dual 15" LF Drivers
• Ideal performance for small and medium-sized halls

Product summary:

• Designed Speaker system The JBL 3730 delivers powerful and impactful cinematic sound with clear distribution across all sound ranges, making it an ideal choice for cinemas that want a high-quality, flexible, and cost-effective solution.

Additional features:

• Full integration with JBL Cinema DSP processors
• Compatible with Crown and Cinema Processor systems
• Internal circuitry protects the circuit board and ensures long-lasting performance.
• A design that allows for easy installation behind the screen

Applications used for the product:

• Small and medium-sized cinemas
• VIP private screening rooms
• Commercial cinemas
• Professional AV systems for hard monitors

Summary and final advice:

• If you are looking for professional cinema speakers that deliver powerful sound, flexible operation, and high clarity in dialogue and in-room effects, the JBL 3730 ScreenArray® speaker system is a reliable option that offers excellent value for performance, especially for mid-budget cinema systems without compromising on quality.
