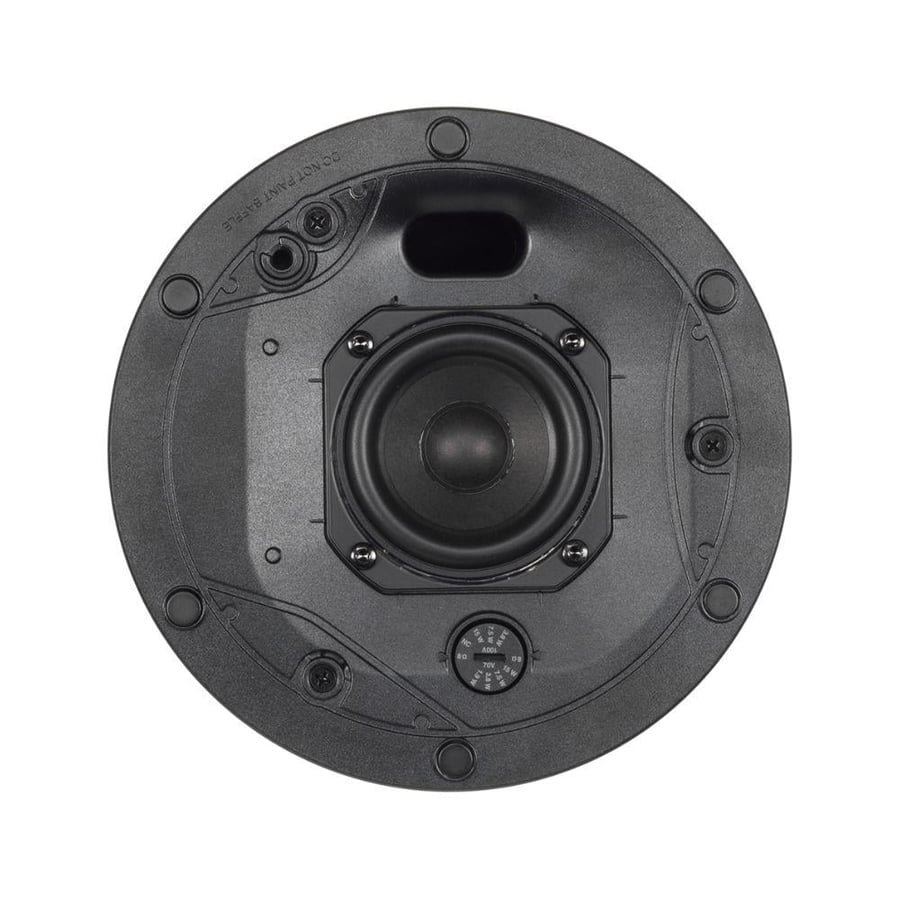

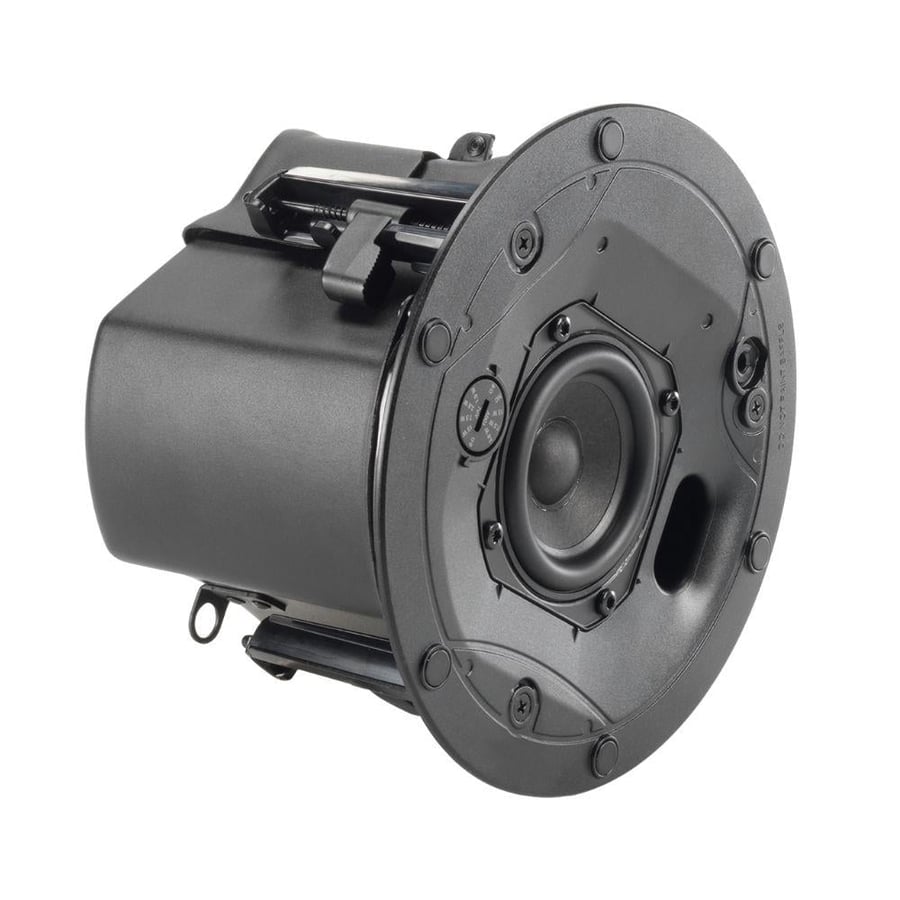

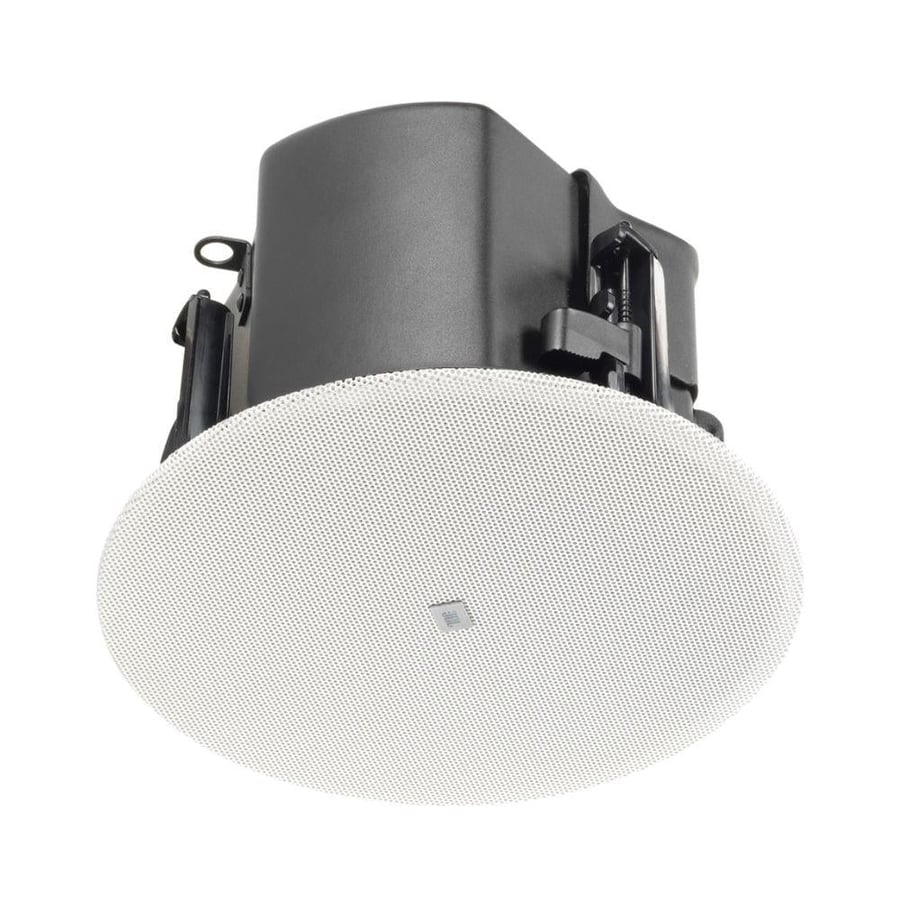

JBL 3-inch gypsum board ceiling speakers, 30 watts, with EN54-24 safety certification for professional performance and compatibility with voice alarm systems, model Control 412C/T-VA

JBL 3-inch gypsum board ceiling speakers , 30 watts, with EN54-24 safety certification – for professional performance and compatibility with voice alarm systems, model Control 412C/T-VA

• The JBL Control 412C/T-VA ceiling speakers are among the best ceiling speakers specialized in safety and emergency systems, combining high sound quality with complete reliability in sensitive applications.
• Gypsum board ceiling speakers are designed according to internationally approved EN54-24 standards for voice alarm and fire suppression systems, making them ideal for use in public facilities, corridors, malls, hospitals, and schools.
• Ceiling speakers come With a sleek and compact design and a paintable magnetic mesh that blends with any interior décor, it is capable of operating in high voltage systems of 70V/100V as well as low resistance mode (8 ohms), giving you complete flexibility in installation and connection.

Technical description:

• The JBL Control 412C/T-VA gypsum board ceiling speakers operate on a unidirectional (Full-Range) sound system with a 3-inch speaker that provides a great balance of sound clarity and wide coverage.
• It provides a continuous 30W operating power (120W peak), covering a frequency range of 68Hz to 17kHz, with a sensitivity of 84dB and a 160° coverage angle for homogeneous and clear sound distribution in all directions.
• It has been certified according to EN54-24:2008 Type A standards, which means it is specifically designed for voice alarm and emergency systems and operates efficiently even in harsh environmental conditions thanks to its IP33 protection against dust and moisture.

Technical specifications:

• Type: Full-Range Ceiling Loudspeaker
• Size: 3 inches
• Electrical power: 30W continuous / 120W peak
• Frequency range (-10 dB): 68 Hz – 17 kHz
• Coverage angle: 160° conical
• Sensitivity: 84 dB (1W/1m)
• Maximum sound pressure (SPL): 99 dB continuous / 105 dB peak
• Nominal impedance: 8 ohms
• Adapter (Taps):
• 70V: 15W, 7.5W, 3.8W, 1.9W
• 100V: 15W, 7.5W, 3.8W
• Internal components:
• LF Driver: 76 mm (3") paper cone with SBR edges
• Dimensions: Diameter 203 mm x Height 163 mm
• Depth inside the ceiling: 154 mm
• Required sunroof opening: 168 mm (6.6 inches)
• Net weight: 1.76 kg
• Color: Paintable white (RAL9003)
• Protection rating: IP33 Dust and splash resistant
• Certification: EN54-24:2008 Type A
• Plenum Usage: Yes, UL/NFPA certified
• Operating temperature: 0°C to 45°C

Key features:

• EN54-24 certification makes it ideal for voice alarm and fire suppression systems.
• Compact and stylish design to complement modern ceilings
• Clear and balanced sound thanks to a 3-inch full-range driver.
• Wide 160° coverage angle for even sound distribution
• IP33 rating for dust and moisture resistance
• 30W RMS operating power suitable for large spaces and corridors
• Magnetic mesh that can be easily painted for integration into interior designs
• The smart fixing system (Dogears) facilitates installation in different ceiling thicknesses.

Product summary:

• Ceiling speakers give you The JBL Control 412C/T-VA offers complete confidence in vital audio applications; it is a professional ceiling speaker that combines sound quality with internationally certified safety specifications.

It ensures excellent performance in emergencies thanks to its robust and highly efficient design, making it the ideal choice for acoustic evacuation systems and sensitive commercial projects.

Additional features:

• Compatible with JBL professional accessories:
• JBL-MTC-414BG / 414SG / 414WG (Optional multi-color grids)
• JBL-MTC-424NC / 424MR (Professional Building and Installation Brackets)
• JBL-MTC-48TRX4 (4x4 ft Square Roof Rails)
• Vibration and heat resistant design
• Easy maintenance thanks to the removable magnetic cover
• Full support for BS 5839-8 and EN 50849 standards for acoustic safety systems

Applications used for the product:

• Building voice alarm and evacuation systems
• Shopping malls, hospitals, and schools
• Government halls and airports
• Hotels and large administrative buildings
• Corridors, staircases, and emergency rooms
• Projects that require compliance with EN54-24 standards

Summary and final advice:

• If you are looking for professional 30W gypsum board ceiling speakers with EN54-24 certification for acoustic alarm and safety systems, the JBL Control 412C/T-VA is the ideal choice.
• Ceiling speakers combine renowned JBL sound quality with the reliability required in emergency systems, making them a smart investment for any project that demands clear, reliable sound in the toughest conditions.
