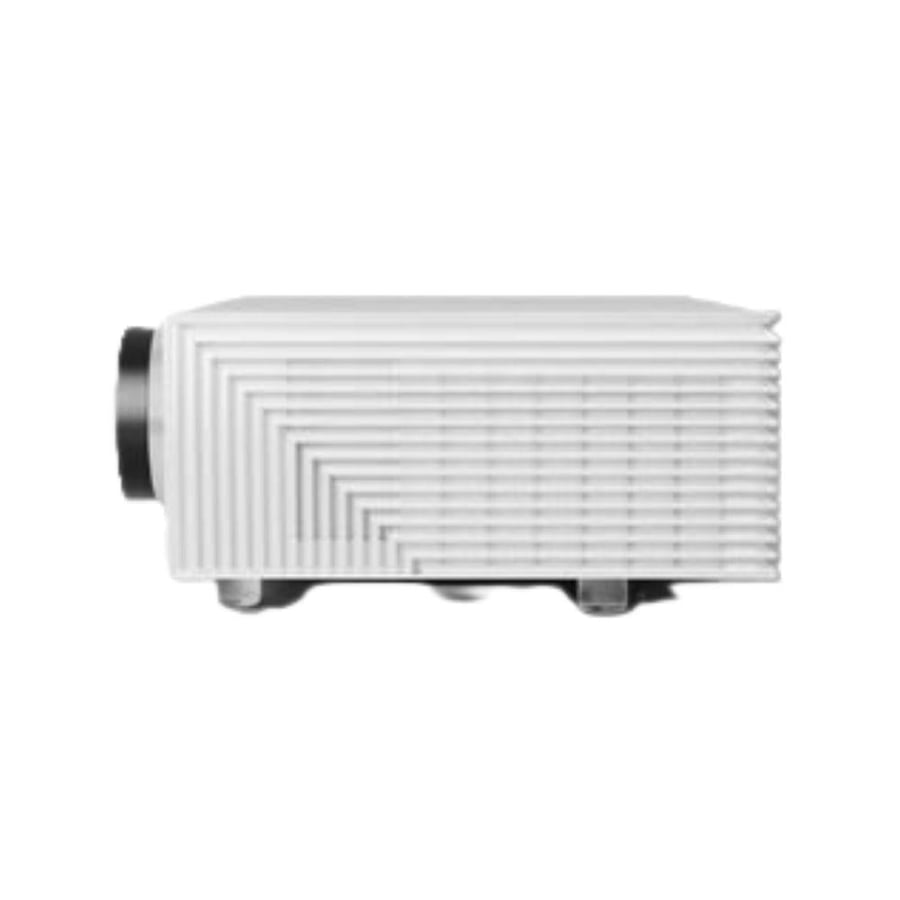

4K UHD HDR Hybrid Laser Cinema Projector with 3600 Lumens Brightness for Professional Home Theater - White - Model: Crystal 4 SH WH - Brand: SIM2 Multimedia

4K UHD HDR Hybrid Laser Cinema Projector with 3600 Lumens Brightness for Professional Home Theater, White, Model Crystal 4 SH WH, SIM2 Multimedia

• The SIM2 Crystal 4 SH WH SuperHybrid is a high-performance, professional cinema projector and SIM2's first front projector to utilize a Laser Hybrid light source. Combining 4K UHD resolution, a 0.66-inch DMD chip, up to 3600 lumens of brightness, and HDR10 and HLG technologies, it delivers a cinematic image rich in detail, color, and contrast, ideal for high-end home theater systems and private cinemas.

Technical description:

• He depends The SIM2 Crystal 4 SH WH projector uses DLP technology with a 0.66-inch UHD DMD chip from Texas Instruments, delivering a resolution of 3840 x 2160 pixels. The larger chip size helps provide higher brightness, reduces light scattering, and improves contrast and black levels—important features for home theater applications.
• The device uses a Laser Hybrid light source combining a blue laser and phosphor technology, with a dual-color wheel system based on phosphors and Dichroic filters to improve color accuracy and stability. Color coverage exceeds 80% of the DCI standard, with full support for REC.709 and beyond.

• The lens features a high-precision optical design made of pure glass, along with 1.6x optical zoom and a 1.4 to 2.24:1 aspect ratio, as well as a 100% to 115% vertical lens offset. The device also boasts advanced HDR processing inspired by the SIM2 NERO 4S technologies to preserve detail in both dark and bright areas of the image.

Technical specifications:

• Brand: SIM2 Multimedia
• Model: Crystal 4 SH WH
• Product type: Professional cinema projector
• Display technology: DLP
• Display chip: 0.66 inch UHD DMD
• Display resolution: 3840 x 2160 pixels
• Resolution: 4K UHD
• Light source: Laser Hybrid
• Light source technology: Blue Laser + Phosphor
• Brightness: Up to 3600 lumens
• HDR: Supported
• HDR10: Supported
• HLG: Supported
• Custom EOTF modes: Supported
• HDR presets: 4 settings
• Motion Compensation: Three settings
• Light Engine: 100% Off-Set
• Color wheel: RGBY without White Sector
• Number of color wheel systems: 2
• DCI coverage: Over 80%
• REC.709: Supported
• Adjusting primary and secondary colors: Supported
• White Point Edit: Supported
• Lens: High Definition Pure-Glass Optics
• Optical zoom: 1.6x
• Lens Offset: From 100% to 115%
• Throw Ratio: 1.4 – 2.24:1
• Projection/focus distance: from 2.5 to 9 meters
• Vertical frequency: 24 – 120 Hz
• HDMI 2.0: 1 unit
• HDMI 2.0 HDCP 2.2: Supported
• MHL 2.1: Supported
• HDMI 1.4a: 1 unit
• HDCP 1.4: Supported
• VGA HD15: Quantity 1
• USB Type-A: For charging 5V/1.5A
• 12V Trigger: Available
• RJ-45: Available
• Web control: Supported
• RS-232: Available via 9 D-SUB
• USB Service/Firmware: Available
• Operating voltage: 100–240V AC
• Electrical frequency: 50–60Hz
• Maximum power consumption: 395 watts
• Standby power consumption: less than 0.5 watts
• Dimensions: 507 x 392 x 181 mm
• Weight: 14.5 kg
• Outer structure: Crystal Glass
• Frame options: White glass

Key features:

• A professional cinematic presentation in 4K UHD resolution.
• The DMD chip is relatively large at 0.66 inches.
• Advanced Laser Hybrid light source.
• High brightness up to 3600 lumens.
• HDR10 support for extended dynamic range.
• HLG supports compatible content.
• Advanced HDR processing inspired by the SIM2 NERO 4S.
• Better display of detail in bright and dark areas.
• Anti-Clipping Contrast Adjustment technology to help preserve details in highly bright areas.
• Pure-Glass high-definition lens.
• 1.6x optical zoom for greater flexibility during installation.
• Throw Ratio from 1.4 to 2.24:1.
• Wide drop distance from 2.5 to 9 meters.
• Color coverage exceeding 80% of the DCI standard.
• Supports REC.709 and beyond in color range.
• The RGBY wheel has no white segment to maintain color reproduction quality.
• Adjusting primary and secondary colors and White Point.
• Motion Compensation system with three settings.
• Low noise cooling system.
• The Crystal Glass structure has a thickness that helps to reduce noise.
• A luxurious design suitable for cinema rooms and upscale lounges.
• Professional control ports include RJ-45, RS-232 and 12V Trigger.

Product summary:

• The SIM2 Crystal 4 SH WH SuperHybrid projector delivers an advanced cinematic viewing experience, combining 4K UHD, Laser Hybrid, 3600 lumens brightness, HDR10 and HLG technologies, and a 0.66-inch DMD chip. It also features a high-definition glass lens, an advanced color processing system, HDR, and a premium Crystal Glass design, making it ideal for home theater systems that demand high levels of picture quality, color accuracy, and detail.

Additional features:

• SIM2 LCC 4.0 Live Color Calibration software for color calibration.
• The ability to perform automated color calibration using a Color Probe and a compatible computer.
• Precise control over Primary and Secondary Colors.
• White Point calibration capability.
• Anti-Clipping processing to handle different brightness levels in HDR content.
• Preserve the details in the illuminated areas as much as possible.
• Two-wheel color system to improve color purity and stability.
• Using the latest blue laser and phosphor technologies.
• Better color stability with changing operating conditions.
• Reduced optical dispersion thanks to the high-resolution glass lens.
• Reduce color deviations and geometric distortions.
• High uniformity and clarity across the screen area.
• Hidden glass rear door for organizing and concealing ports and cables.
• Network control capability via RJ-45.
• Supports professional control systems via RS-232.
• 12V Trigger for integration with compatible home theater equipment.
• A design suitable for installation on the ceiling or over furniture.
• Quiet operation is suitable for movie theaters where the projector is close to the viewers.

Applications used for the product:

• Professional home theaters.
• Luxury home cinema rooms.
• Watch 4K UHD movies.
• View HDR10 content.
• View HLG content.
• Plays compatible Blu-ray and 4K movies.
• High-definition movie streaming platforms.
• Luxurious entertainment rooms.
• Large home living rooms.
• Villas and palaces.
• Private exhibition rooms.
• Movie screenings.
• Watching sporting events on big screens.
• Video games in 4K resolution.
• Custom Home Cinema systems.
• The cinema screens are large in size.
• Professional installations integrated with control systems.
• Luxury residential projects.
• Display rooms that require high color accuracy.
• Display systems that require flexible projection distances.

Summary and final advice:

• It is The SIM2 Crystal 4 SH WH SuperHybrid projector is an advanced option for those seeking a professional-grade home theater projector. It combines 4K UHD resolution, 3600 lumens brightness, a hybrid laser source, HDR10 and HLG technologies, a 0.66-inch DMD chip, and a 1.6x glass lens. Its advanced color calibration capabilities and multiple mounting and control options make it particularly suitable for high-end home theaters and projects where picture quality, color accuracy, and cinematic detail are paramount.
