Soundcraft Vi RS2422SP 16-Channel AES Digital Input/Output Card for Audio Systems

Soundcraft Vi RS2422SP 16-Channel AES Digital Input/Output Card for Audio Systems

• The Soundcraft ViO/D21 AES RS2422SP digital audio interface is a highly reliable, professional option for expanding Soundcraft Vi systems with digital AES/EBU interfaces, enabling direct integration with streaming devices, digital processors, and professional recording systems.
• The card comes as a genuine, tested, and ready-to-use spare part, making it ideal for critical environments that require uninterrupted operation.

Technical description:

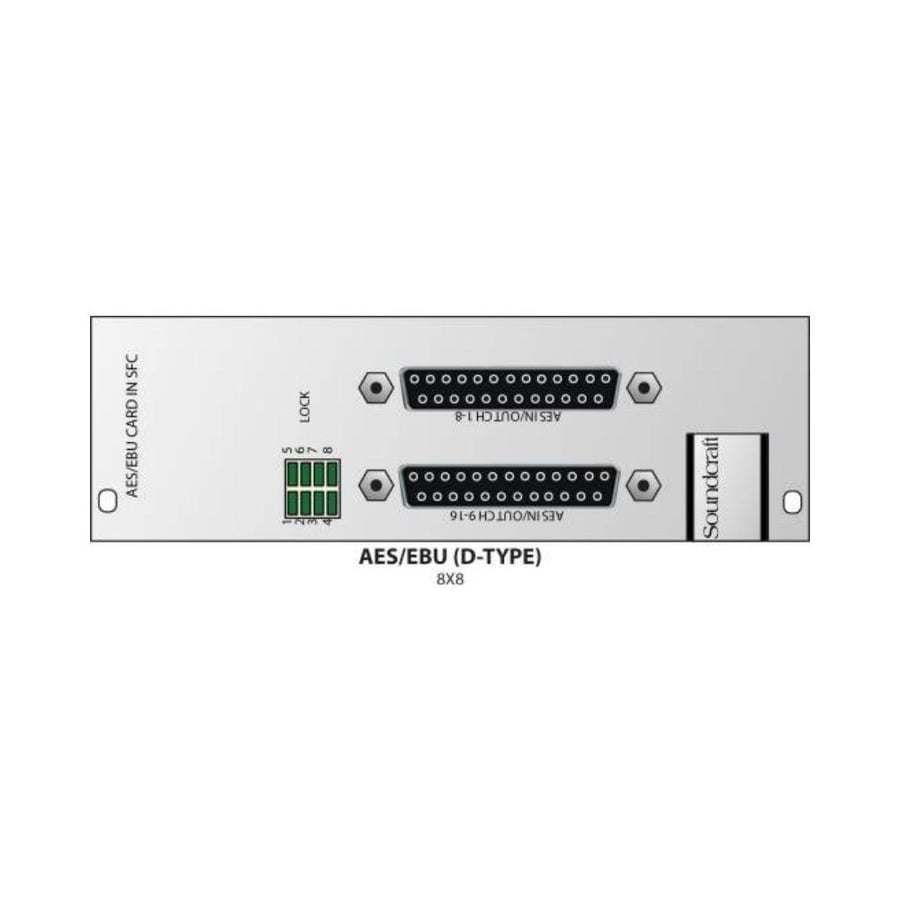

• The RS2422SP card provides a digital AES/EBU interface with 16 input channels and 16 output channels via standard 25-Pin D-Type connectors.
• The card contains Sample Frequency Converters (SfCs) on the inputs only, with the ability to bypass each converter individually according to system requirements.
• It also offers high flexibility in Dither output configuration, as each AES/EBU output can be set independently to:
• 24-bit
• 20-bit
• 18-bit
• 16-bit
• These settings are adjusted via internal jumpers, giving precise control over signal quality and compatibility.

Technical specifications:

• Product type: ViO/D21 AES/EBU Option Card
• Number of channels:
• 16 AES inputs
• 16 AES output
• Signal type: AES/EBU Digital Audio
• Frequency converters:
• SfCs on entrances only
• Individual override possibility
• Setting up Dither for directing:
• 24/20/18/16 bit (selectable)
• Connector type: 25-Pin D-Type (Female)
• Operating rate: 48kHz
• Composition: ViO/D21 Slot
• Condition: Packed – Tested Spare
• Compatibility:
• Vi Series Local Rack
• Compact Stagebox
• Vi1
• Vi1000 / Vi2000 / Vi3000
• Vi5000 / Vi7000
• Manufacturer: Soundcraft
• Product number: RS2422SP

Key features:

• 16x16 Channel AES/EBU Digital Expansion
• Frequency converters on the inputs to ensure compatibility
• Independent Dither control for each output
• Professional delivery via D-Type
• Genuine, tested spare part
• Full integration with Soundcraft Vi systems
• High reliability for broadcasting and critical applications

Product summary:

• The Soundcraft RS2422SP ViO/D21 AESI/O card provides a professional and flexible AES/EBU interface for expanding Soundcraft Vi systems, with precise frequency control and output quality, making it an ideal choice for advanced digital applications.

Additional features:

• Reducing the need for external adapters
• Excellent compatibility with broadcasting equipment
• Flexible setup according to project requirements
• Stable performance in continuous operation
• Suitable as a spare or backup part
• Original Soundcraft manufacturing

Applications used for the product:

• Television and radio broadcasting
• Professional studios
• Theaters and live performances
• Digital recording systems
• Connection with external AES processors
• Soundcraft Vi Digital Systems
• Audio system rental companies

Summary and final advice:

• If you need a professional digital AES/EBU interface with high control flexibility and precise output quality within the Soundcraft Vi system, then a digital audio interface is the way to go. RS2422SP ViO/D21 AES is the perfect choice.
• Our advice: Use this card in environments that require high digital compatibility and absolute stability, such as broadcasting and studios, to ensure the best possible performance.
