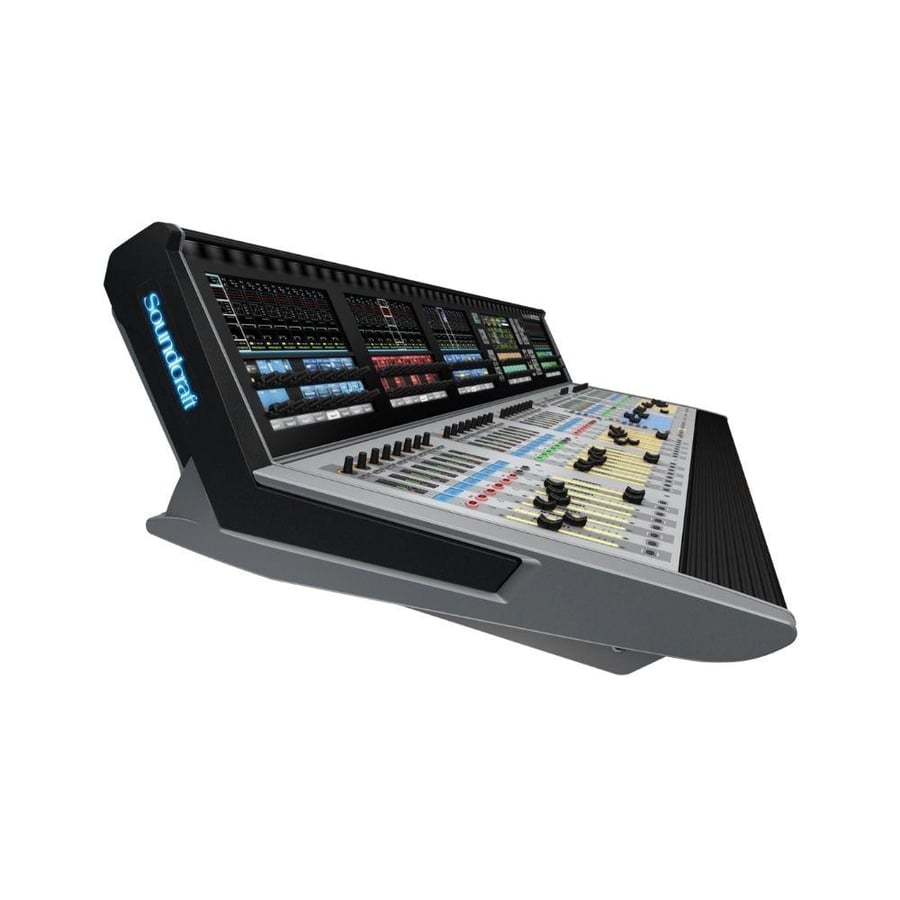

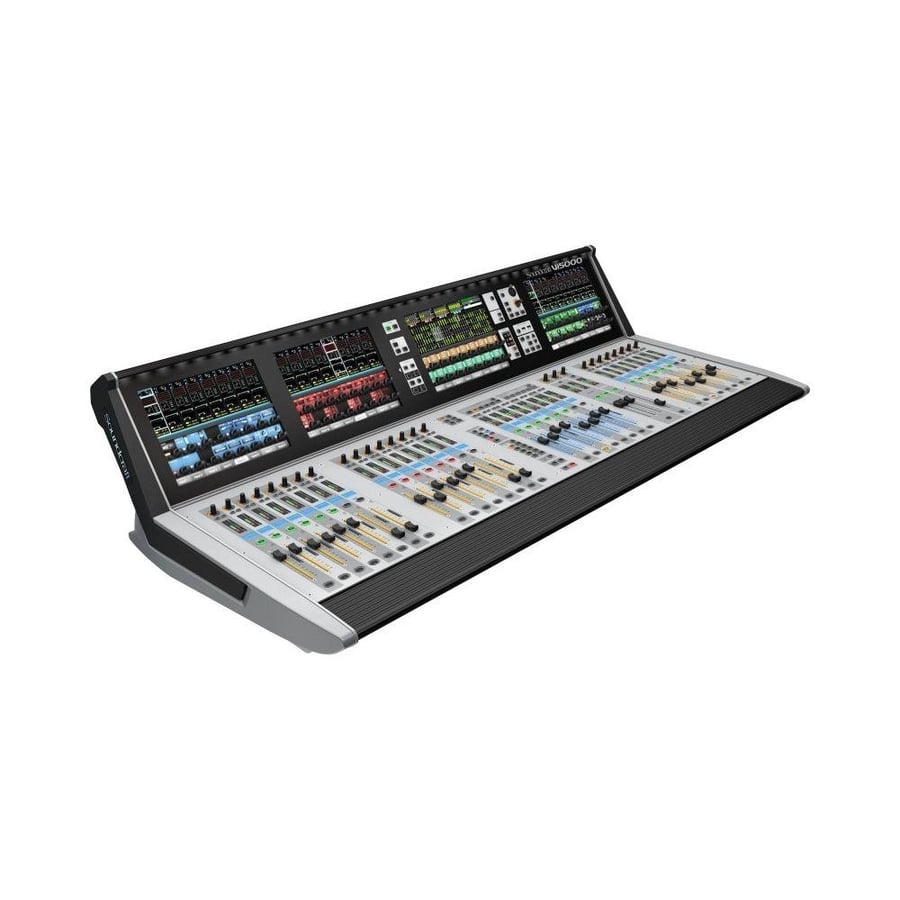

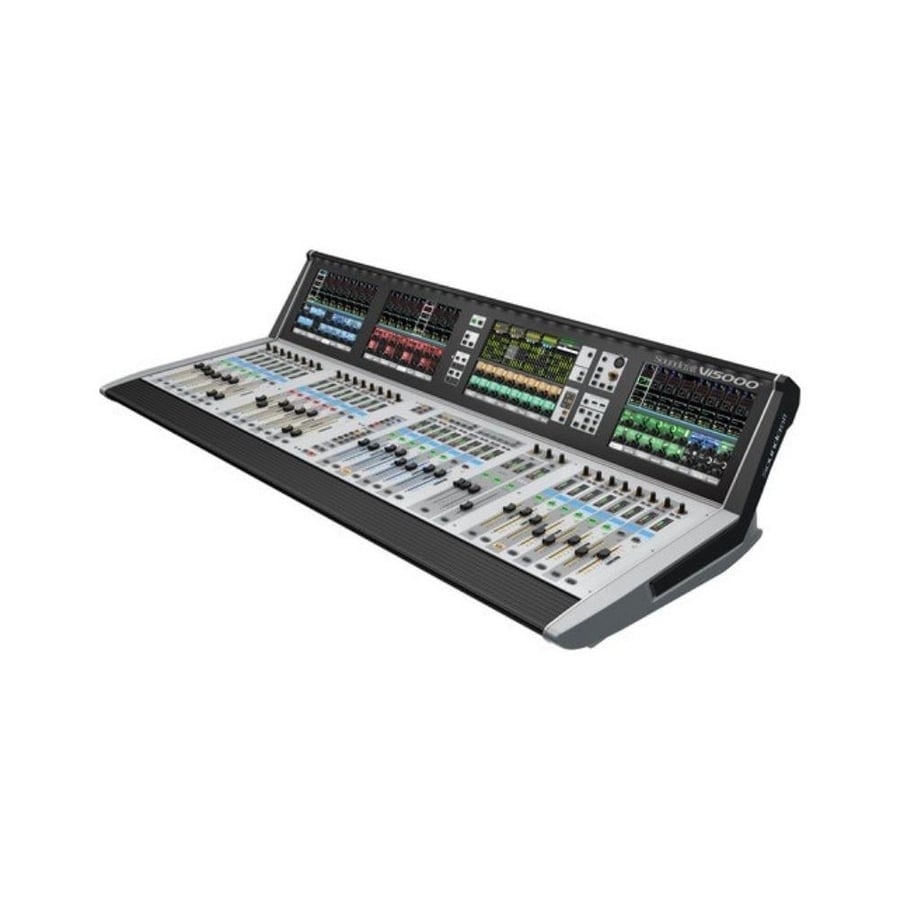

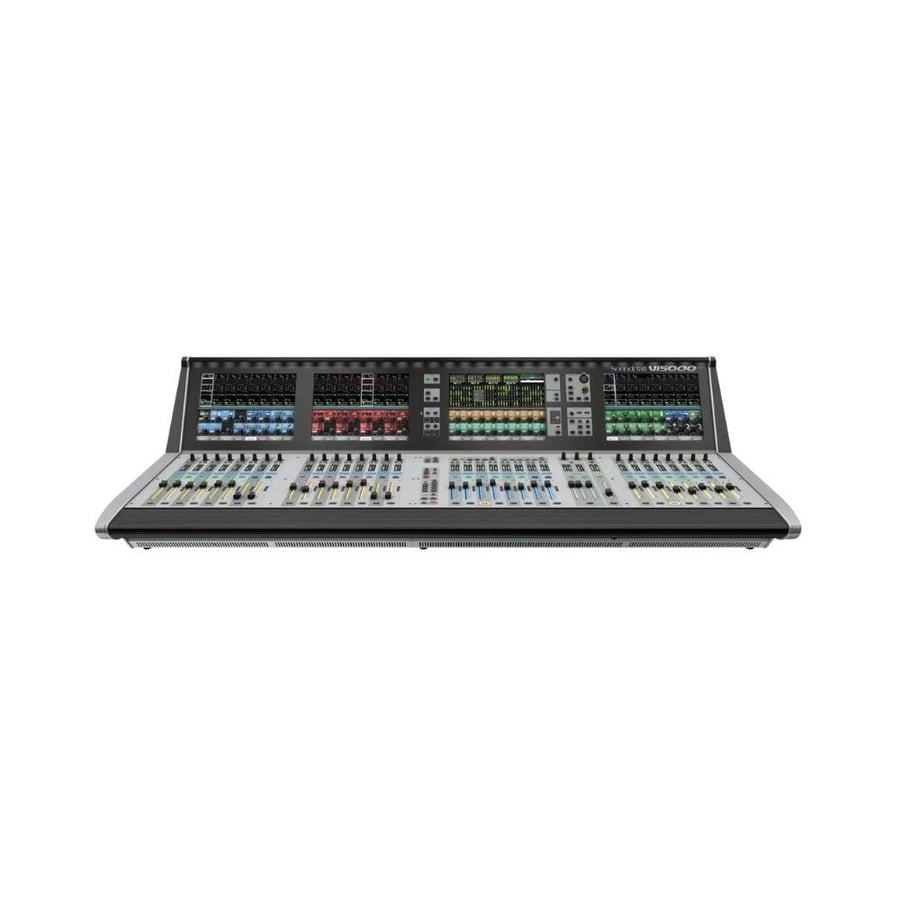

Soundcraft Vi5000 Ultra Powerful Digital Mixer with up to 128 Channels, 96kHz Interface and Playback Capability, Dante/MADI Support, and ViSi Connect Expansion, Model SCR-5057292HUEU

Soundcraft Vi5000 Ultra Powerful Digital Mixer with up to 128 Channels, 96kHz Interface and Playback Capability, Dante/MADI Support, and ViSi Connect Expansion, Model SCR-5057292HUEU

• It comes The Soundcraft Vi5000 mixer is one of the most powerful digital mixing solutions in the Vi series, designed for live performances, broadcasts, and large events. It combines the engineer-favorite Visonics + FaderGlow interface with higher processing power, a larger number of channels, and improved hardware reliability. The Vi5000 is designed to be an ideal choice for rental companies, tours, large theaters, and conferences, offering a smooth and fast operating experience with professional-grade expansion and networking capabilities to accommodate even the most complex audio systems.

Technical description:

• The Vi5000digital audio mixer relies on 40-bit Floating Point digital audio processing with the ability to run a 96kHz sample rate (optional) to deliver higher detail and more accurate response in demanding professional applications—note that running 96kHz may require additional DSP cards and may be accompanied by a reduction in the number of channels depending on the system configuration.
• The mixer supports simultaneous mixing of up to 128 inputs with 32 mono/stereo buses, and offers built-in effects from Lexicon via 8 independent FX units, as well as BSS DPR901ii Dynamic EQ integration and the presence of BSS GEQ on each bus output for professional system and monitor tuning.
• It also features powerful expansion capabilities via ViSi Connect to connect multiple protocols such as Dante/MADI/CobraNet/EtherSound and others, with a recording/feedback interface of up to 128 channels via Dante or MADI, and the ability to work with Realtime Rack to include Plug-ins from Universal Audio within a live mixing environment.

Technical specifications:

• Performance and processing
• Processing accuracy: 40-bit Floating Point
• Sample rate: 48kHz or 96kHz (optional)
• Number of inputs during mixing: Up to 128 Inputs
• Number of buses: 32 Mono/Stereo Buses
• Latency: < 2ms @48kHz
• Integrated effects and processors
• Lexicon effects: 8 independent Stereo Multi-FX units
• BSS DPR901ii Dynamic EQ: Built-in integration (available via Insert Pool)
• BSS GEQ: Graphic EQ on each bus output
• Registration, expansion, and linking
• Recording/feedback interface: Up to 128 channels via MADI or Dante
• Supports ViSi Connect networks and expansions: Dante / MADI / CobraNet / EtherSound / and others
• UA Plug-ins support via Realtime Rack
• Acoustic measurement specifications (selections from performance data)
• Frequency Response (Stagebox Mic In → Line Out): +0/-1dB, 20Hz–20kHz
• THD (Line In → Line Out): <0.003% @1kHz
• Mic EIN: < -126dBu (150Ω source)
• Residual Noise: -91dBu
• CMRR: 80dB @1kHz
• Energy and the environment
• Operating voltage range: 90–264V, 47–63Hz (Auto-ranging)
• Power consumption: 300W
• Operating temperature: 0°C – 45°C
• Humidity: 0% – 90% (non-condensing)
• Storage temperature: -20°C – 60°C

Key features:

• The most popular and fastest control interface: Vistonics + FaderGlow
• Powerful mixing of up to 128 channels with 32 mono/stereo bass
• 96kHz playback option for those seeking the highest audio fidelity
• 8 independent Lexicon effects to handle Reverb/Delay/Pitch and others
• BSS DPR901ii Dynamic EQ for intelligent and advanced corrective processing
• BSS GEQ on each bus for professional monitoring and main system adjustment
• Monitoring the status of VM2 wireless microphones (battery/RF/Mute/Clipping)
• vMIX for automatic microphone mixing (suitable for conferences and talks)
• Recording/feeding 128 channels via Dante or MADI
• Extensive expansion via ViSi Connect for easy connection of multiple systems
• Professional Plug-ins support via Realtime Rack (UA/UAD)

Product summary:

• The Soundcraft Vi5000 is a high-end live audio mixer that combines a user-friendly and fast interface with powerful mixing and processing capabilities suitable for large-scale performances and complex applications. It offers a large number of channels, advanced effects, monitor controls, and multi-protocol networking—making it a complete platform for anyone who wants "control you love + power you need."

Additional features:

• Convert all buses to Stereo without consuming two buses (higher flexibility for the monitor)
• 4 Send Pick-off points per send: (Pre-EQ / Pre-Comp / Pre-Fade / Post-Fade)
• Aux VCA Mode for smart control of channel transmissions within each Mix
• Automatic upscaling of ambient mics between songs for IEM users
• A robust Snapshot/Cue system and event integration (MIDI/GPIO/Timecode depending on system settings)
• Manage settings via the (EQ/Dynamics) library and save them to USB
• Factory-made equipment and flight cases that can integrate Realtime Rack and an external touchscreen (depending on the package)

Applications used for the product:

• Massive concerts and tours
• Theaters and major productions
• Leasing and rental companies that need flexibility and expansion
• Conferences, forums and official events (with vMIX)
• Live streaming and multi-channel recording via Dante/MADI
• Sound systems in stadiums, large halls, and festivals

Summary and final advice:

• If your goal is a mixer that “gives you the same feel of fast control that you’re used to” but with greater ability to manage a larger number of channels, more effects, and stronger network expansion, then the Soundcraft Vi5000 digital audio mixer is an excellent choice for the professional class.
• Before choosing a 96kHz setting, make sure you have the required channel plan, as this setting may require additional DSP and may affect the number of available channels depending on the system configuration—but if your focus is on the highest channel capacity and full expansion for big shows, the standard 48kHz setting will often give you the best balance of power, flexibility, and reliability.

• Detailed product data (Data Sheet).
