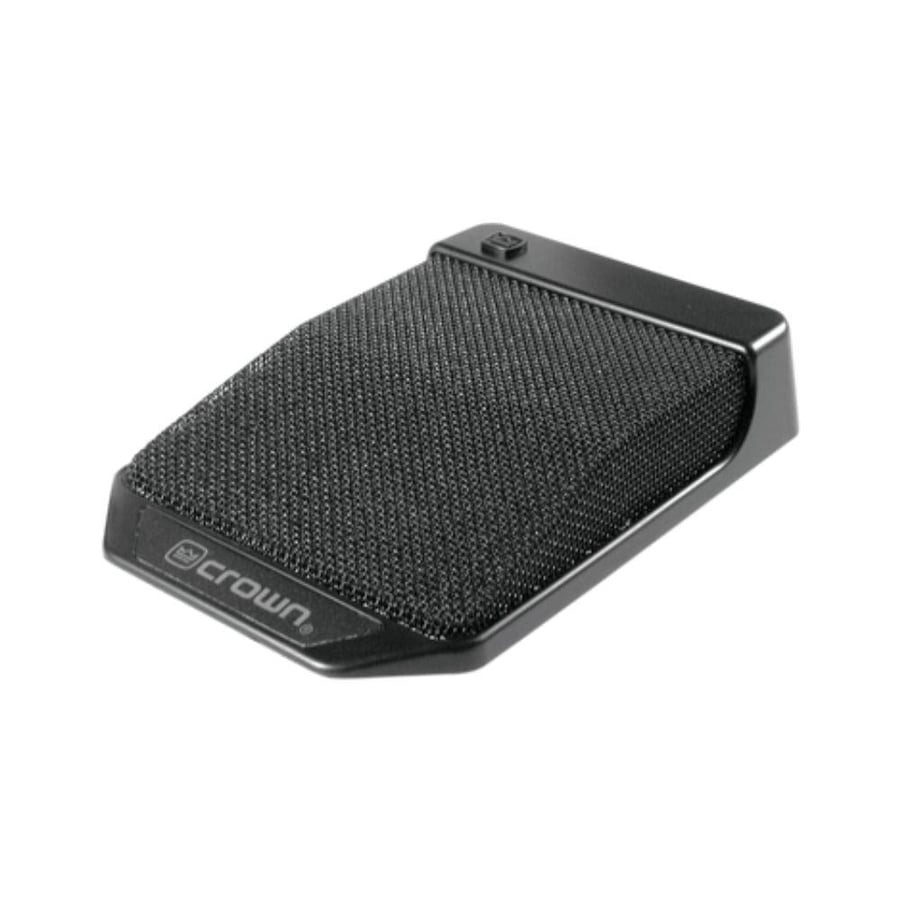

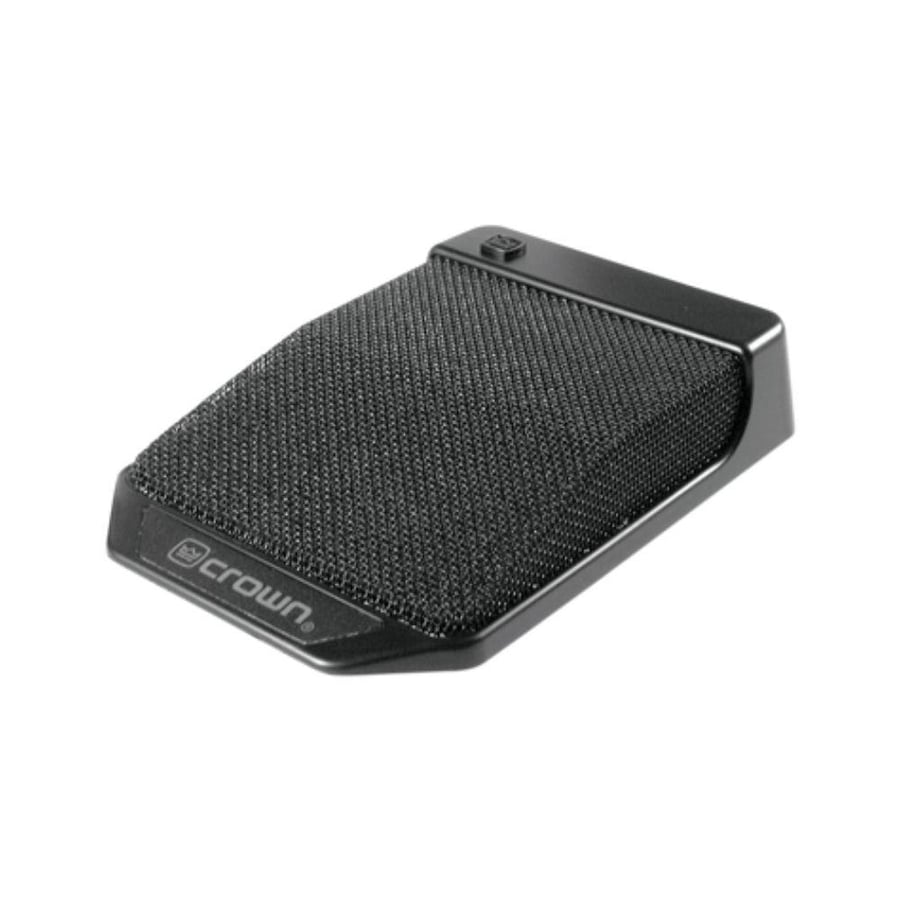

Edge microphone for tables and podiums with on/off button – smart control and high clarity for meetings, model PCC170 SW, CROWN brand

Edge microphone for tables and podiums with on/off button – smart control and high clarity for meetings, model PCC170 SW, CROWN brand

• The CROWN PCC170 SW wired microphone is a professional boundary layer microphone designed for boardrooms and podiums, offering high clarity with direct control via a programmable on/off button. Thanks to its supercardioid pickup pattern and high sensitivity, it captures voices with natural clarity and minimizes background noise and feedback in formal environments.

Technical description:

• The PCC170 SW utilizes a supercardioid boundary layer design to minimize background noise and enhance gain before feedback occurs. It features a Bass-Tilt switch for low-response adjustment and subsonic noise reduction, along with RFI suppression to protect against cellular interference. It boasts a silent, programmable membrane button with Touch On/Off and Momentary On/Momentary Off modes, and operates on 12–48V phantom power with an XLR connector and detachable cable for easy installation.

Technical specifications:

• Type: Boundary Layer Microphone
• Capture pattern: Supercardioid
• Frequency range: 50 – 20,000 Hz
• Equivalent noise level: 22 dB-A
• Sensitivity: 22 mV/Pa
• Signal-to-noise ratio: 72 dB-A
• Dimensions: Length 123 mm, Width 86 mm, Height 23 mm
• Finish: Black
• Power supply: Phantom Power 12-48V
• Output type: XLR tri-axis (male)

Key features:

• Supercardioid mode for noise reduction and feedback
• Programmable membrane on/off button with multiple modes
• Bass-Tilt key for low response customization
• RFI Suppression system for protection against phone interference
• Suitable size for tables and speaking platforms
• Easy installation with a detachable cable

Product summary:

• The CROWN PCC170 SW wired microphone delivers clear, controlled audio for formal meetings with smart control via a programmed button, making it ideal for boardrooms and podiums.

Additional features:

• Mini XLR to XLR cable included
• Robust construction suitable for institutional use
• Broad compatibility with professional audio systems

Applications used for the product:

• Boardroom tables: Direct control and excellent clarity of input
• Speech platforms: Reduced feedback and faster control
• Conference rooms: Balanced and consistent sound
• Training rooms: Clear communication with the possibility of secrecy

Summary and final advice:

• If you need a professional boundary layermicrophone for tables and platforms that combines high clarity, intelligent control via a programmed button, and interference protection, the CROWN PCC170-SW is a reliable investment choice for advanced enterprise environments.

Detailed product data (Data Sheet).
