GWN7660 - Grandstream Wi-Fi 6 Indoor Network Extender (Access Point)

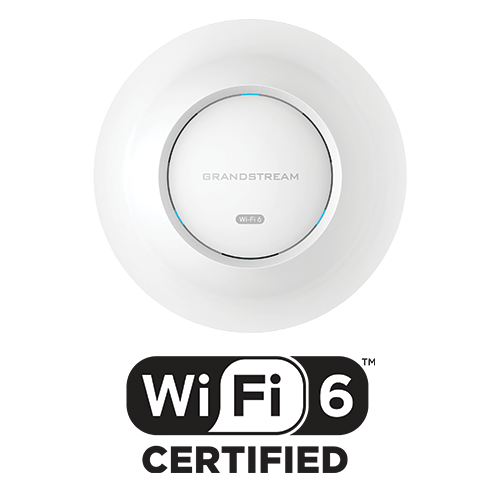

Grandstream GWN7660: High-efficiency Wi-Fi 6 network extender for businesses and homes [Professional image of the GWN766]

Upgrade your network with the Grandstream GWN7660 access point, designed to deliver a high-performance Wi-Fi 6 (802.11ax) experience. This device is ideal for small and medium-sized businesses, offices, homes, and shops looking to support a growing number of internet-connected devices without sacrificing speed or performance. The GWN7660 combines the latest wireless technology with flexible management options to deliver a fast, stable, and secure Wi-Fi network.

Improved performance for a modern work environment:

Thanks to its support for the Wi-Fi 6 standard, the GWN7660 offers a total speed of up to 1.77 Gbps . It is equipped with advanced technologies such as OFDMA and two-way MU-MIMO , allowing it to handle multiple devices simultaneously with high efficiency, reducing latency and ensuring a smooth experience for everyone, especially in crowded environments.

Key features:

• Wi-Fi 6 standard: Provides faster and more efficient connectivity, with significantly improved performance in high-density environments compared to previous generations.
• High speed 1.77 Gbps: Combines speeds of up to 1.2 Gbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
• 2x2:2 MU-MIMO technology: Multiple antennas ensure a strong and stable connection, with the ability to serve multiple devices simultaneously.
• Extensive coverage: The advanced antenna design provides extended wireless coverage of up to 165 meters , reducing the need for additional access points.
• Large connection capacity: Able to support the connection of up to 256 client devices at the same time.
• Free centralized management: It can be easily managed through several flexible options:
• Built-in controller: to manage up to 50 local access points.
• GWN.Cloud: A free cloud platform for managing an unlimited number of access points from anywhere.
• GWN Manager: A free local installation program for network management.
• Advanced Quality of Service (QoS): Enables prioritizing traffic for sensitive applications such as video and audio calls to ensure optimal performance.
• Advanced security: Supports the latest wireless security standards, including WPA3, to ensure your network is protected from threats.

Ideal applications:

• Offices and small and medium-sized enterprises.
• Houses and residential buildings.
• Shops, restaurants, and cafes.
• Schools and medical clinics.
• Any environment that requires a reliable, high-performance Wi-Fi network at a reasonable cost.

Technical specifications:

• Brand: Grandstream
• Model: GWN7660
• Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Frequency bands: 2.4 GHz / 5 GHz
• Maximum speed: 1.77 Gbps (total)
• MIMO technology: 2x2:2 MU-MIMO
• Network ports: 2x Gigabit Ethernet Ports with PSE
• Power supply method: Power over Ethernet (PoE) - 802.3af
• Number of supported customers: 256
• Coverage range: up to 165 meters
• Dimensions: 180.4 mm × 180.4 mm × 40.8 mm
• the weight:
• Unit weight: 423.8 grams
• Unit weight with mounting base: 533.8 grams
