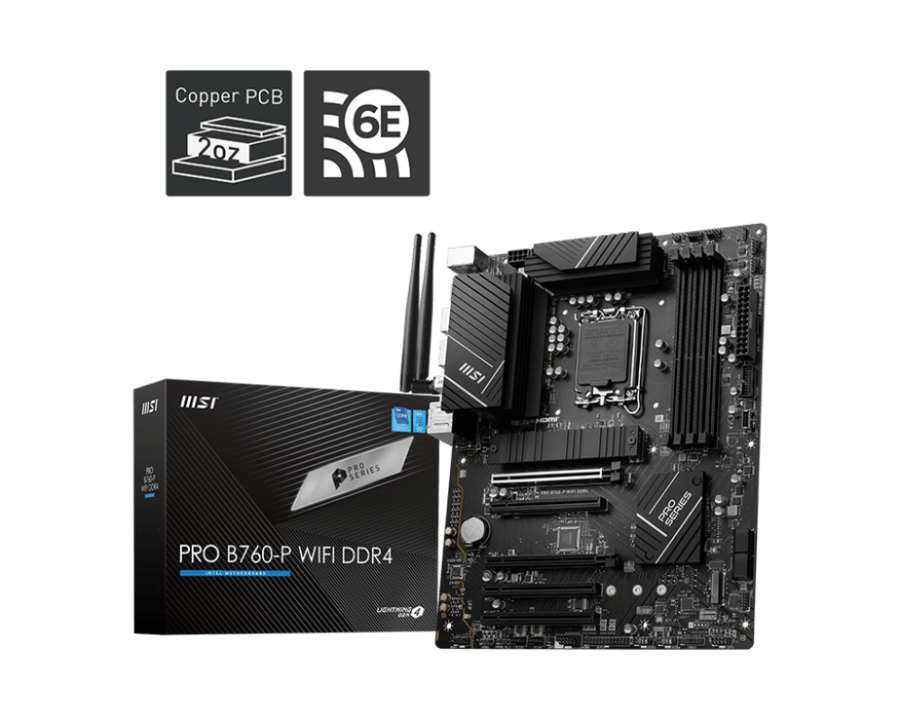

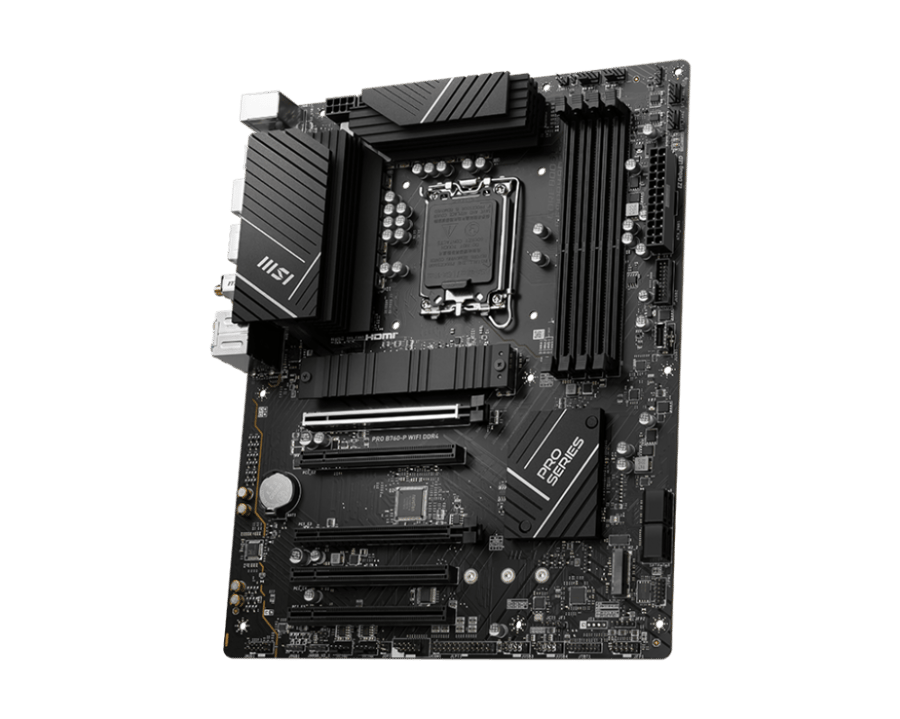

MSI PRO B760-P WIFI DDR4 1700 LGA

MSI PRO B760-P WIFI DDR4 1700 LGA | Motherboard MSI PRO B760-P from the beautiful and well-known company "MSI" motherboard from the modern generation and supports overclocking and performance enhancement and very strong and wonderful specifications shown below. Specifications MSI PRO B760-P WIFI DDR4 1700 LGA | Motherboard MSI: Intel B760 chipset Processor support for Intel® Core™ 14th/13th/12th generation processors, and Intel® Pentium® Gold and Celeron® processors LGA 1700 Memory 4x DDR4, maximum memory capacity 128 GB Supports memory 5333(OC)/5200(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC) Maximum overclocking frequency: • 1DPC 1R up to 5333+ MHz • 1DPC 2R up to 4800+ MHz • 2DPC 1R up to 4400+ MHz • 2DPC 2R up to 4000+ MHz Supports dual-channel mode Supports non-ECC, unbuffered memory Supports Intel® Extreme Memory Profile (XMP) Audio Realtek® ALC897 Codec 7.1 high-definition sound channels Supports S/PDIF output Storage 2x M.2 M.2_1 source (from the processor) supports up to PCIe 4.0 x4, and supports 22110/2280/2260/2242 devices M.2_2 source (from the chipset) supports up to PCIe 4.0 x4 / SATA mode, and supports 2280/2260/2242 devices 4x SATA 6G* SATA8 will not be available when installing an M.2 SATA SSD in the M2_2 slot. LAN Realtek® RTL8125BG 2.5G LAN Onboard graphics 1x HDMI™ Supports HDMI™ 2.1, maximum resolution 4K 60Hz *1x DisplayPort Supports DP 1.4, maximum resolution 4K 60Hz *Only available on processors with integrated graphics. Graphics specifications may vary depending on the installed CPU. Expansion Slots 5x PCI-E x16 slots Supports PCI_E1 Gen PCIe 4.0 up to x16 (from the processor) Supports PCI_E2 Gen PCIe 3.0 up to x1 (from the chipset) Supports PCI_E3 Gen PCIe 4.0 up to x4 (from the chipset) Supports PCI_E4 Gen PCIe 3.0 up to x1 (from the chipset) Supports PCI_E5 Gen PCIe 3.0 up to x1 (from the chipset) RAID Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices USB 4x USB 2.0 (rear) 4x USB 2.0 (front) 2x USB 5 Gbps Type A (front) 1x USB 5 Gbps Type C (front) 2x USB 10 Gbps Type A (rear) 1x USB 10 Gbps Type C (rear) Wireless and Bluetooth Intel® Wi-Fi 6E Pre-installed wireless module in M.2 (Key-E) slot Supports MU-MIMO TX/RX and 2.4 GHz / 5 GHz / 6 GHz* (160 MHz) up to 2.4 Gbps Supports 802.11 a/b/g/n/ac/ax Supports Bluetooth® 5.3 and FIPS and FISMA* (Wi-Fi 6E 6 GHz may depend on country regulations and will be available in Windows 11) *Bluetooth 5.3 will be ready in Windows 10 version 21H1 and Windows 11. Internal Connectors 1x Power connector (ATX_PWR) 2x CPU power connectors (CPU_PWR) 1x CPU fan 1x Pump fan 5x System fans 2x Front panel (JFP) 1x Chassis intrusion (JCI) 1x Front audio (JAUD) 1x Printer port (JLPT) 1x COM port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x V2 RGB LED addressable connectors (JARGB_V2) 1x RGB LED connector (JRGB) 1x TPM pin header (supports TPM 2.0) 4x USB 2.0 ports 2x USB 5 Gbps Type A ports 1x USB 5 Gbps Type C port Rear Ports Mouse and keyboard Display port 2.5G LAN Wi-Fi / Bluetooth Audio connectors USB 2.0 HDMI™ USB 3.2 Gen 2 at 10 Gbps (Type A) USB 3.2 Gen 2 at 10 Gbps (Type C) S/PDIF-OUT Operating System Supports Windows® 11 64-bit, Windows® 10 64-bit Multilayer PCB information ATX 243.84 mm × 304.8 mm For more details, click here. You can order the distinguished MSI PRO B760-P WIFI DDR4 1700 LGA and many other products through our store pvp-pc. Place your order now and we will deliver as quickly as possible. We always strive to offer you a distinguished range of products and various sections.
