SONOFF SwitchMan ZBM5 Zigbee Smart Wall Switch (1/2/3 Gang – 86 Type)

The SONOFF SwitchMan ZBM5 (ZBM5-86W Series) is a modern smart Zigbee 3.0 wall switch designed to bring flexible and reliable smart lighting control to any home. Available in 1-Gang, 2-Gang, and 3-Gang versions, it allows you to control from 1 to 3 independent lighting circuits from a single wall unit. It is engineered for maximum compatibility, supporting both neutral wire and no-neutral wire installations.

Powered by Zigbee 3.0, the ZBM5 series pairs seamlessly with SONOFF Zigbee hubs, NSPanel Pro, Home Assistant, Alexa, Google Home, and other major smart home ecosystems. It features Detach Relay Mode to trigger smart scenes independently from the physical relay state, while neutral-wire installation enables Zigbee router functionality to expand and strengthen your smart home network signal.

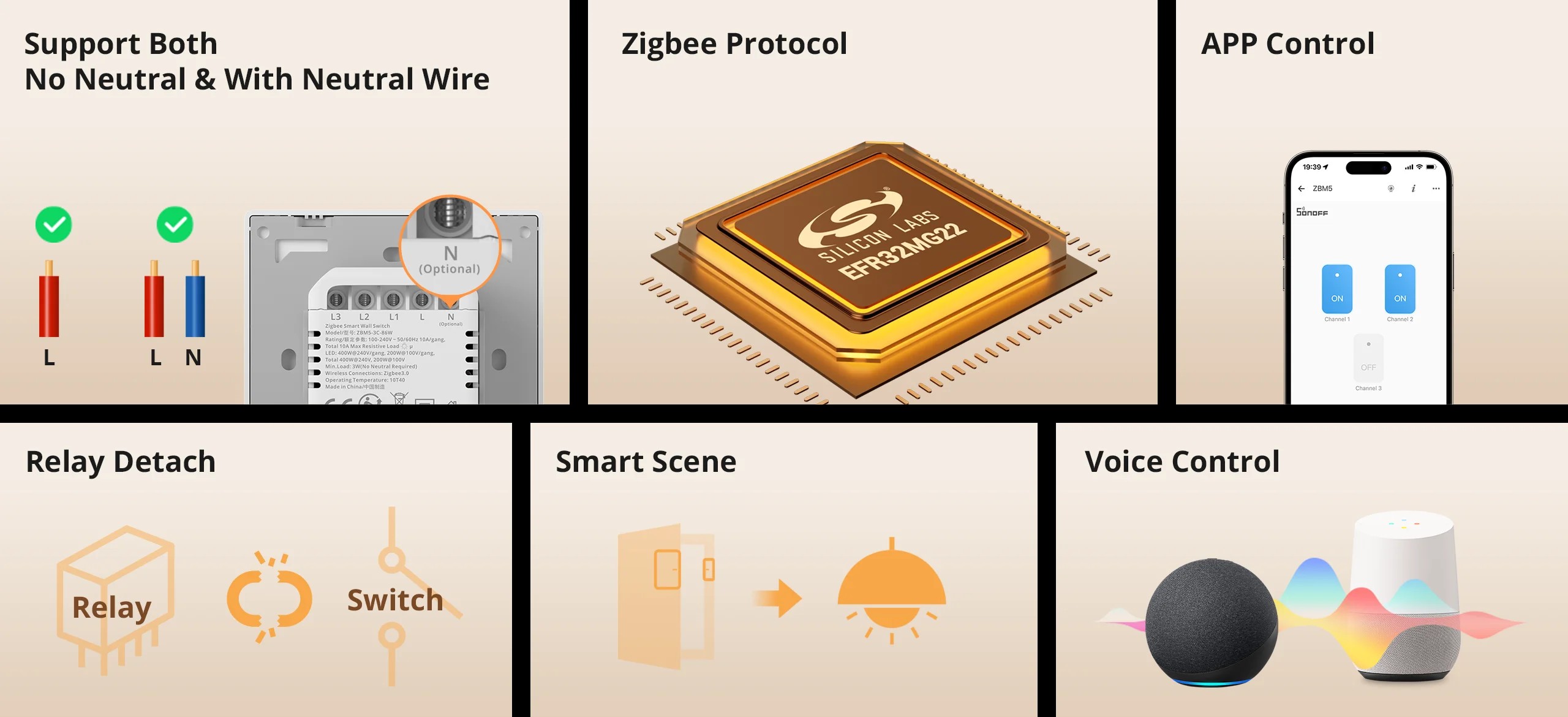

Key Features:

• Available in 1-Gang, 2-Gang, and 3-Gang push-button options

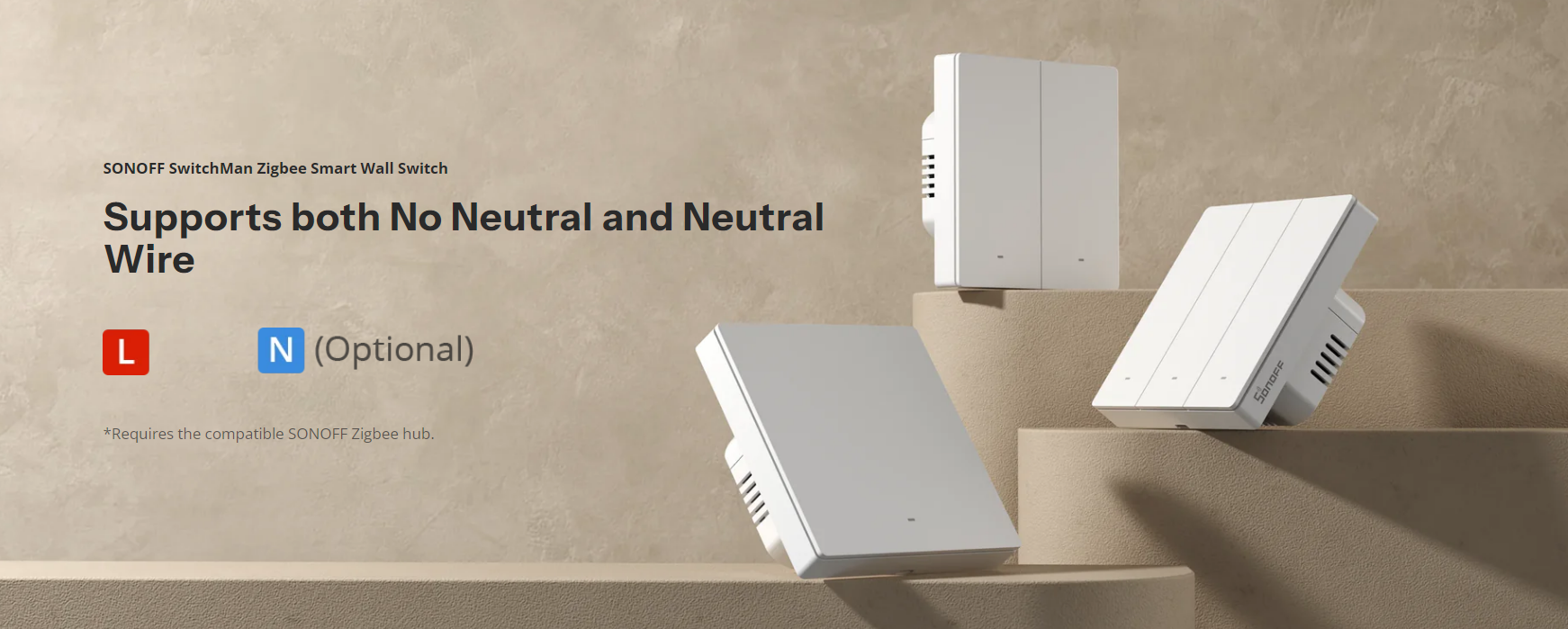

• Dual Wiring Support: Works with both Neutral and No-Neutral wire setups
• Zigbee 3.0 Protocol: Acts as a Zigbee Router to boost network coverage (Neutral mode)
• Detach Relay Mode: Separates physical switch control from smart scene triggers
• Full Automation: Supports eWeLink app control, voice commands (Alexa/Google Home), timer schedules, and one-tap smart scenes
• Premium Build: Modern 86 Type design crafted from fire-resistant PC + ABS materials

Technical Specifications:

• Series / Model: SONOFF ZBM5-86W Series (ZBM5-1C-86W / ZBM5-2C-86W / ZBM5-3C-86W)
• Gang Options: 1-Gang / 2-Gang / 3-Gang (Push Buttons)
• Voltage: 100-240V AC 50/60Hz
• Max Current: 10A Max (1-Gang / 2-Gang), 6A/Gang (10A Max Total for 3-Gang)
• Connectivity Protocol: Zigbee 3.0
• Installation Type: Surface / Wall Mount (Standard 86 Type Box)
• Dimensions: 86 × 86 × 40 mm (approx.)
• Weight: ~150 g
• Color: White
• Material: PC + ABS (V0 Fire-resistant)

Package Contents:

• Smart Switch × 1
• Mounting Screws × 2
• Quick Start Guide × 1
