Hantek drawing vibrations Dso2C10

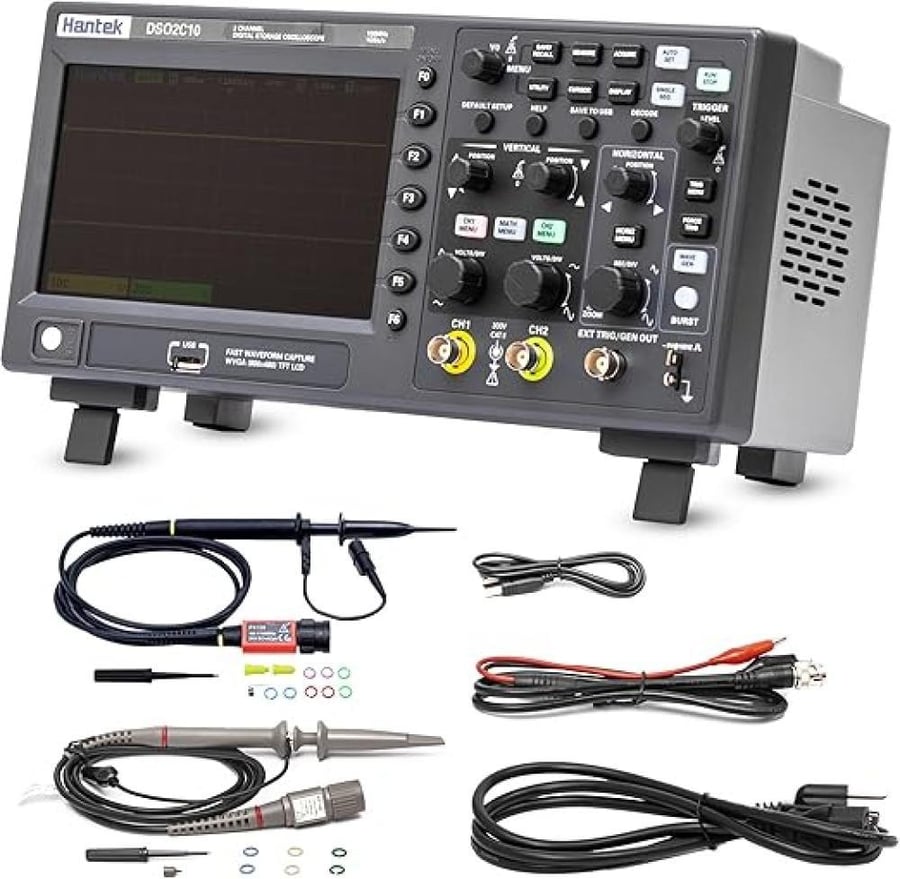

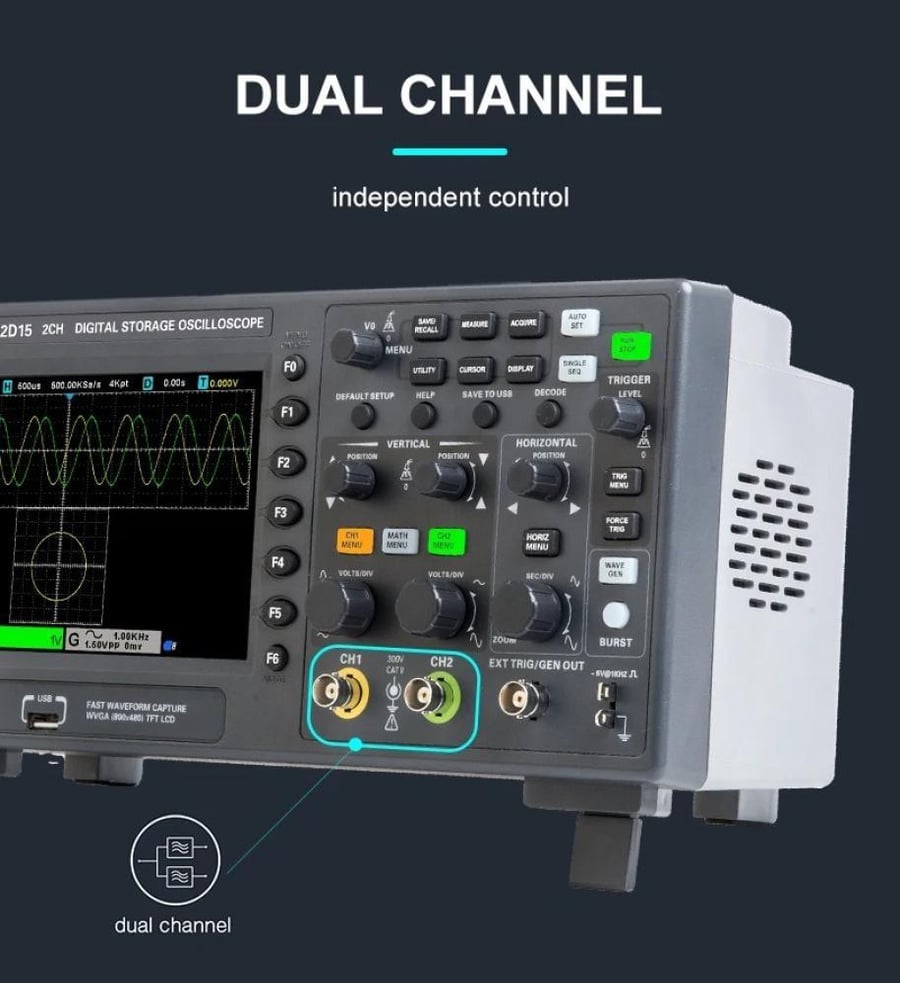

Hantek DSO2C10 digital oscilloscope dual channel economical 100MHz bandwidth cost-effective oscilloscope. Supports arbitrary waveform output, 14 types of trigger modes, standard with 5 types of serial protocol decoders and decryption. A useful operating tool for various fields such as communications, space, national defense, embedded systems, computers, research, and education. Product weight: 2.7 kilograms Product description 1) Two channels controlled sequentially by independent knobs 2) Analog channel bandwidth 100 MHz 3) Sampling rate up to 1 GSa/sec 4) Memory depth 8M 5) Vertical range 2mV/div ~ 10V/div 6) Vertical accuracy: 8-bit 7) Trigger: edge, pulse, video, slope, extended time, window, pattern, interval, under current, UART, LIN, CAN, SPI, IIC 8) Bus decoding and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN 9) Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, and images 10) 3-digit digital voltage meter and 6-digit device frequency indicator 11) 32 types of automatic measurements with real-time statistics and statistics for maximum, minimum, standard deviation, etc. 12) Two sets of digital voltmeters 13) Supports threshold testing, free on-screen measurements 14) Rich SCPI remote control 15) USB host/device
