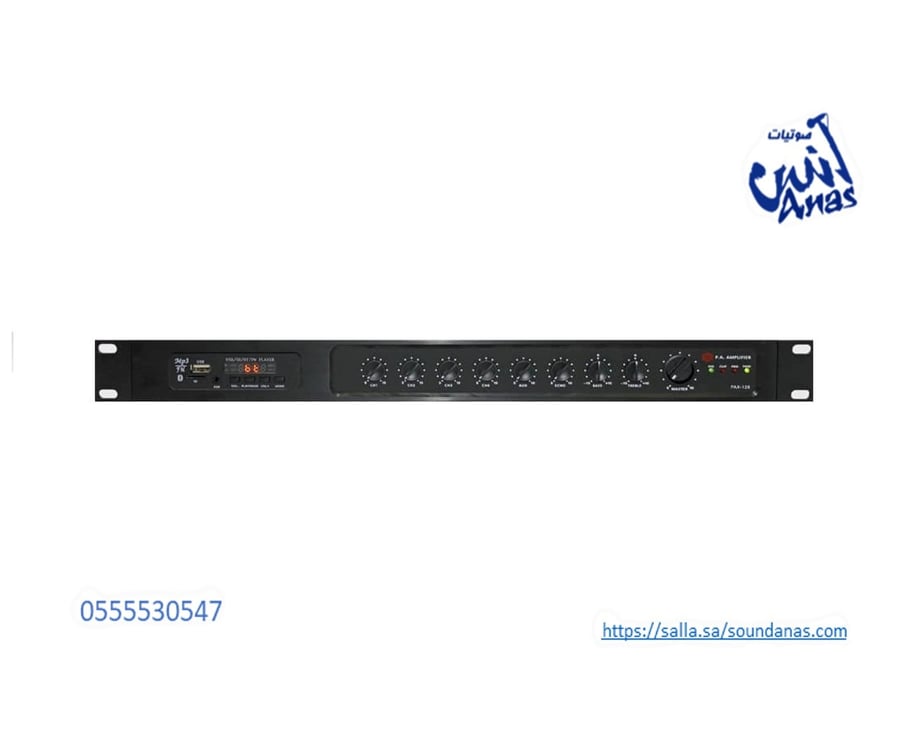

Unitar PAX-120W RMS/70/100V/MP3 and oak player

The description offers the PAX series three models of mixers / speakers designed for commercial applications. All models include a multi-source player and a five-line input mixer and a 240-watt Class D amplifier unit, which can provide an audio signal for low and high impedance loads. Thanks to Class D technology, sources, mixing, and amplification are contained in one 1U-sized rack unit. The devices can be used in small control rooms or in low-ventilation environments, making them the ideal solution for bars, restaurants, retail stores, office buildings, and other applications where announcements and background music are needed. Four mono inputs are available on integrated balanced 6.35 mm XLR / TRS connectors. For each input, the switch selects either line or microphone level with a 24V phantom power option. For the Aux stereo input, both channels are combined into a mono signal. The microphone connected to input 1 can automatically mute other audio sources; the function is activated by a microphone signal. Priority can also be activated via a contact relay or external test/warning signal. The PAX series is equipped with an MP3 USB-SD player for BGM messages or recorded messages. The BGM unit also includes an FM tuner and Bluetooth FM. A load with 4 ohms impedance can be connected to the output power section, but a high-impedance load requiring a voltage between 70V and 100V can also be connected. The PAX 120 amplifier can also operate with a 24V DC power supply, for example from a backup source. Product specifications: Model PAX-240 - 240W RMS power amplifier with audio mixer, player, and recorder. The built-in BGM unit includes an FM tuner and Bluetooth MP3 player. Outputs: 4Ω or 70V or 100V. 4 microphone/line inputs. Priority mode setting. One stereo AUX input. All housed in a 1U rack unit. Technical specifications: - Power output (at 4 ohms): RMS 240 W - Power supply: AC 115 ~ 230V 50/60Hz, switchable, DC 24V - Frequency range: 80Hz - 16kHz ± 3 dB - Inputs: 4 x MIC / Line, switchable, 1 x stereo AUX sensitivity: -40dBV (balanced), phantom power for microphones, line sensitivity 18V: -10dBV, AUX sensitivity (balanced): -10dBV, unbalanced: -10dBV - Signal-to-noise ratio S / N: MIC >65dB / AUX >75dB / line >75dB - Total harmonic distortion THD: <0.1% - Low impedance output: 4Ω - High impedance output: 70V, 100V - Volume control: 4 x INPUT, 1 x AUX, 1 x MASTER - Sound equalization: treble / bass / echo - Built-in BGM unit: FM tuner, MP3 player + recorder (USB / SD), Bluetooth player - External FM antenna connection: IEC connector input - Product dimensions: (W x D x H) 420 x 260 x 88 mm - Product weight: 5.6 kg - Package contents: PAX-120 speaker
