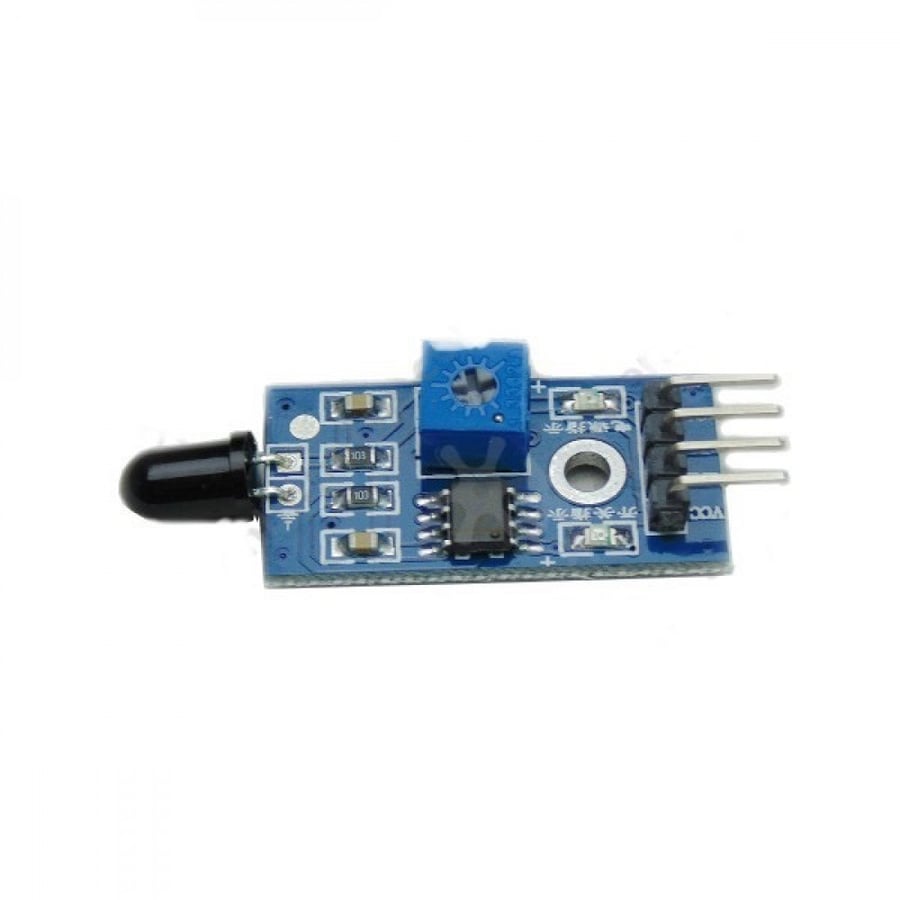

IR Infrared Flame Thermal Temperature Sensor

Product information: The flame sensor can detect sources of flame light and infrared rays with wavelengths ranging from 760 nanometers to 1100 nanometers. It uses the LM393 comparator chip, which provides a clean and stable digital output signal and a driving capacity of 15 milliamps. This flame detector can be used in fire alarms and other fire detection devices. Advantages: LM393 comparator chip, detection range: 760 nanometers to 1100 nanometers, operating voltage: 3.3 volts to 5 volts, maximum output current: 15 milliamps, digital outputs: 0 and 1, detection angle: about 60 degrees, sensitivity adjustable via potentiometer, LED indicator lights: power (red) and output (green), fixed screw holes for easy installation, PCB size: 32 x 14 millimeters. Note: The sensor should be placed at a reasonable distance from the flame to prevent damage from overheating.
