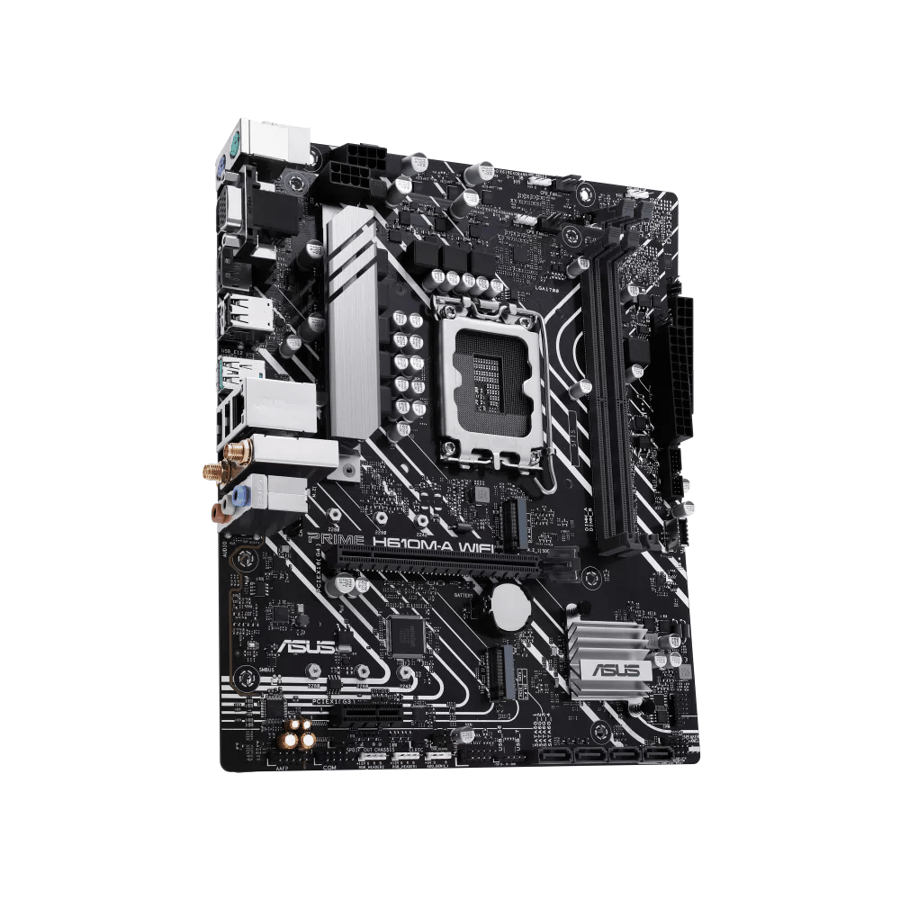

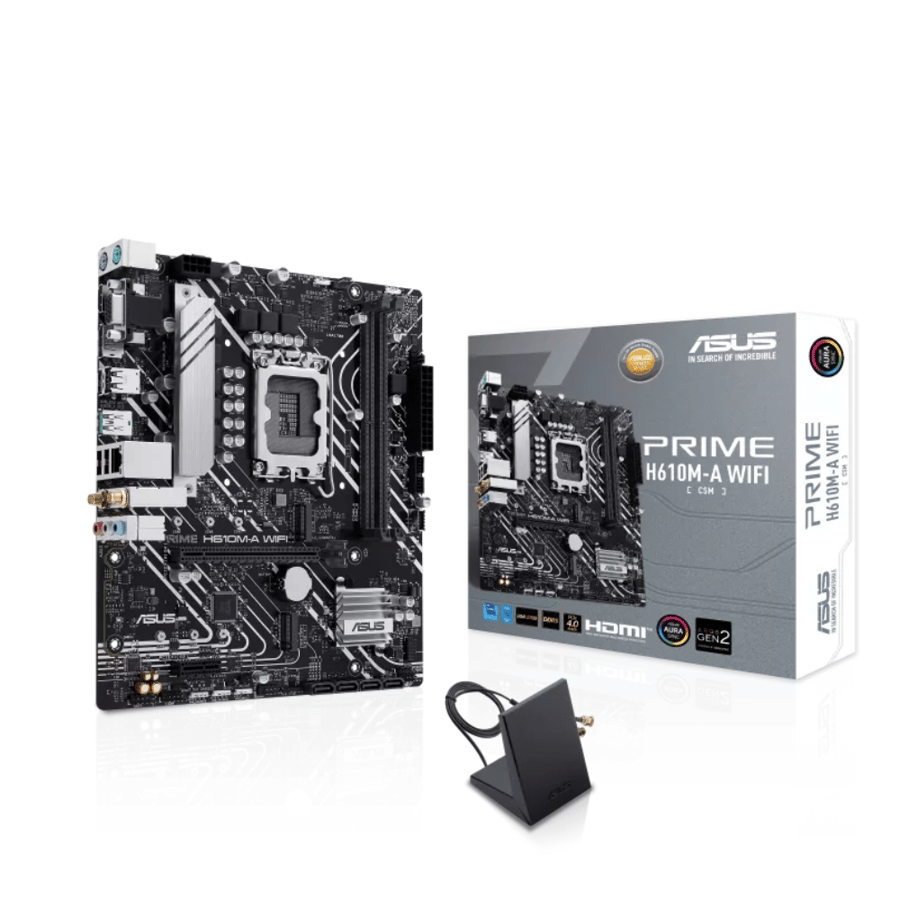

MB ASUS PRIME H610M-A WiFi DDR5 LGA 1700

ASUS PRIME H610M-A WIFI Motherboard offers a perfect blend of high performance and flexibility, making it an ideal choice for building advanced systems that support the latest Intel® processors. With its compact mATX design, this motherboard provides a range of advanced features that cater to users' needs for powerful performance, fast connectivity, and efficient cooling.

Key Features:

• Future-Ready: Supports 12th, 13th, and 14th Gen Intel® Core™ processors.
• Ultra-Fast Connectivity: Features a combination of PCIe 4.0, dual M.2 slots, Intel® 1Gb Ethernet, and Wi-Fi 5 for impressive data transfer speeds.
• Comprehensive Cooling: Advanced thermal design with VRM and PCH heatsinks, and intelligent fan management through Fan Xpert 2+.
• Customizable RGB Lighting: Supports Aura Sync with Gen 2 Addressable headers for synchronized and stunning lighting displays.

Detailed Specifications for Intel® H610 (LGA 1700) mATX Motherboard:

Model:

PRIME H610M-A WIFI

Processor:

• CPU Socket: Intel® LGA 1700
• Supported Processors:
• Intel® Core™ 14th, 13th, and 12th Gen processors
• Intel® Pentium® Gold and Celeron® processors
• Supported Technologies:
• Intel® Turbo Boost Technology 2.0
• Intel® Turbo Boost Max Technology 3.0

Chipset:

• Intel® H610 Chipset

Memory:

• Slots: 2 x DIMM Slots
• Maximum Capacity: 96GB
• Type: DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered
• Supported Technology: Intel® Extreme Memory Profile (XMP)
• Memory Channel: Dual Channel Memory

Graphics:

• 1 x DisplayPort (supports 4K@60Hz)
• 1 x HDMI™ (supports 4K@60Hz)
• 1 x VGA Port
• *Note: Graphics specifications depend on the CPU used.

Expansion Slots:

• 1 x PCIe 4.0 x16 Slot (for 12th, 13th, 14th Gen CPUs)
• 1 x PCIe 3.0 x1 Slot

Storage:

• M.2 Slots:
• 1 x M.2_1 (Key M), supports PCIe 3.0 x4
• 1 x M.2_2 (Key M), supports PCIe 3.0 x2
• SATA Ports:
• 4 x SATA 6Gb/s

Networking:

• Ethernet:
• Intel® 1Gb Ethernet
• ASUS LANGuard
• Wireless & Bluetooth:
• Wi-Fi 5 (802.11 a/b/g/n/ac)
• Bluetooth® v5.0

Rear I/O Ports:

• 1 x USB 3.2 Gen 2 (Type-A)
• 4 x USB 2.0 (Type-A)
• 1 x DisplayPort
• 1 x HDMI™
• 1 x VGA Port
• 1 x Ethernet Port
• 1 x Wi-Fi Module
• 3 x Audio Jacks
• 1 x PS/2 Keyboard Port
• 1 x PS/2 Mouse Port

Front I/O Ports:

• 1 x USB 3.2 Gen 1 (Type-C®)
• 1 x USB 3.2 Gen 1 Header (supports 2 additional ports)
• 2 x USB 2.0 Headers (support 3 additional ports)

Audio:

• Codec: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Features:
• Audio Shielding
• Premium Audio Capacitors
• Dedicated Audio PCB Layers
• *Note: 7.1 Surround Sound support requires a high-definition front panel audio module.

Cooling:

• VRM Heatsink
• PCH Heatsink
• Fan Xpert 2+
• 1 x 4-pin CPU Fan Header
• 2 x 4-pin Chassis Fan Headers

Lighting:

• 3 x Addressable Gen 2 Headers
• 2 x AURA RGB Headers
• Aura Sync RGB Support

Software:

• ASUS Exclusive Software (Armoury Crate, AI Suite 3, etc.)
• Norton 360 Deluxe (60-day free trial)
• WinRAR
• ASUS UEFI BIOS (EZ Flash 3, CrashFree BIOS 3)

BIOS:

• 128Mb Flash ROM
• UEFI AMI BIOS

Power Management:

• Energy Processing Unit (EPU)
• ASUS DIGI+ VRM
• Overvoltage Protection
• ASUS 5X PROTECTION III

Accessories:

• 2 x SATA 6Gb/s Cables
• 1 x ASUS Wi-Fi Moving Antennas
• 1 x I/O Shield
• 1 x Screw Package for M.2 SSD
• 1 x User Guide

Supported Operating System:

• Windows® 11 64-bit
• Windows® 10 64-bit

Dimensions:

• Form Factor: mATX
• Size: 24.4 cm × 21.6 cm (9.6 inches × 8.5 inches)
