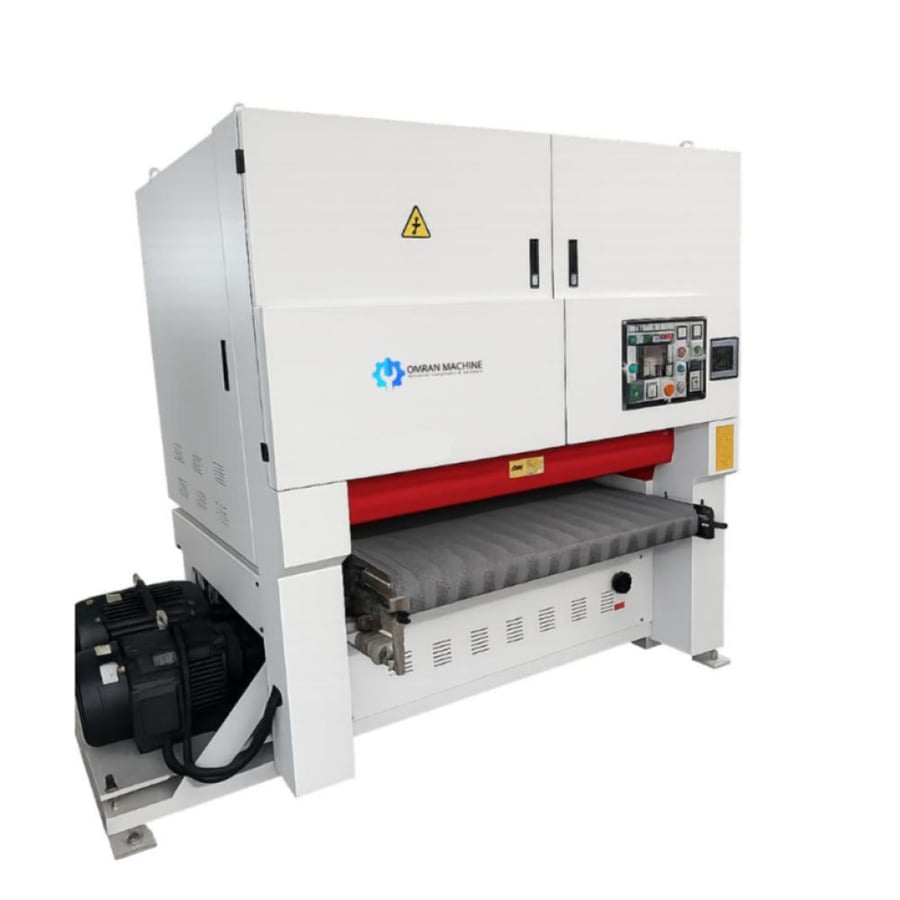

OM-WSM-1300 | صنفره عريضه

Max working width: 1300mm

The shortest processing length: 500mm

Processing thickness: 3-110mm

Conveyor speed: 6-30m/min

Total power: 41.37kw

First sand frame motor power: 22kw

Second sand frame motor power: 15kw

Conveyor motor wattage: 4kw

Lifting motor power: 0.37kw

First sand frame steel roller diameter: 240mm

Second Sand rubber roller diameter: 240mm

Abrasive belt size: 1330x2200mm

Dust collection: 8000m³/h

Outline dimension: 2100x2700x2100mm

Weight: 3300kg
