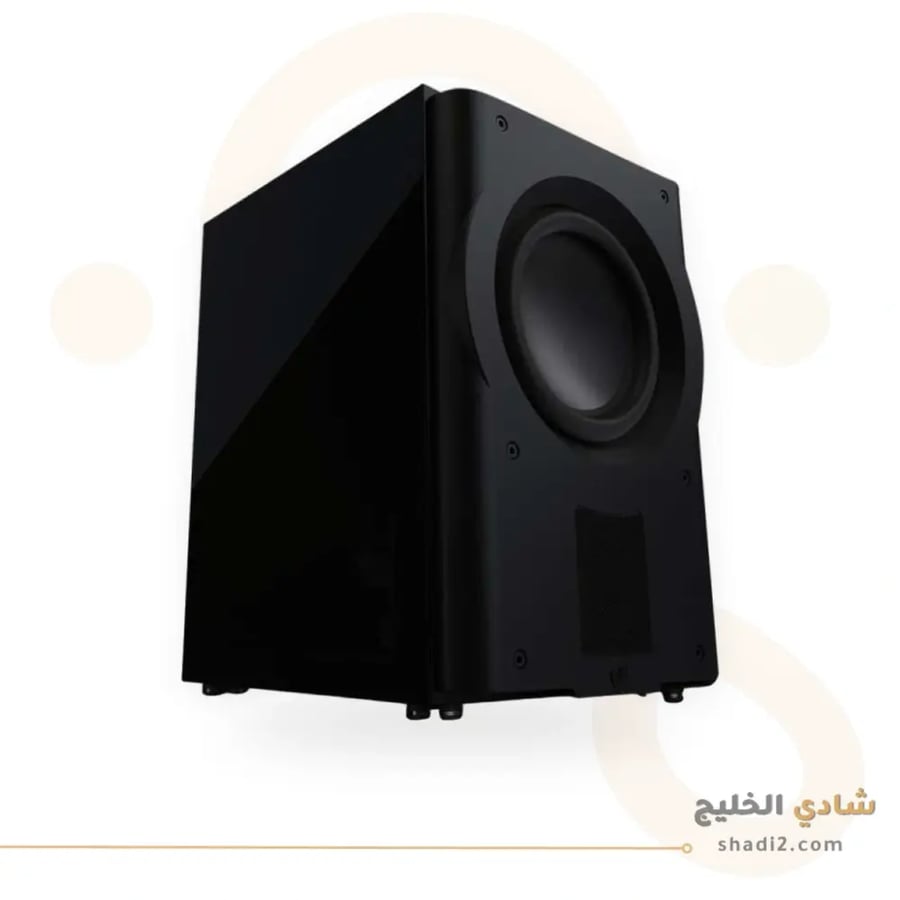

Perlisten R210s Subwoofer

Alignment: Push-Pull, acoustic suspension

Amplifer: 1.3kW rms short term

Display Interface: 2.4” LCD color touchscreen

App: iOS and Android

Processor: 32-bit ARM Cortex M4, double precision floating point math

DSP Engine: Ti DSP 48-bit data paths

Driver compliment:

- (2)250mm, Glass fiber diaprhragm

- +/-20mm linear excursion

THX EQ:20-290Hz (-6dB) / 16-302Hz (-10dB)

Boost (Large Room) EQ:16-290Hz (-6dB) / 14-302Hz (-10dB)

Cut (Small Room) EQ: 25-290Hz (-6dB) / 19-302Hz (-10dB)

Inputs:

- (2) Balanced XLR

- (2) Unbalanced RCA

Outputs:

- (2) Balanced XLR unbuffered

- (2) Unbalanced RCA unbuffered

Parametric EQ: 10-Band PEQ with 3 user presets

Low Pass filter: bypass, 30-160Hz, slope 6,12,18,24dB/oct

Phase: Variable 0-270°

Polarity: Normal / inverted

Configurable Auto turn-on and 12v Trigger: XLR 1, XLR 1+2, RCA 1, RCA 1+2

Dimensions (HxWxD):

- 545 x 380 x 450mm

- 21.5 x 15.0 x 17.7”

Weight: 44.0 kg (96.8 lbs.)

Certification: THX Dominus (4), THX Ultra (1)

Available finishes: Piano black
